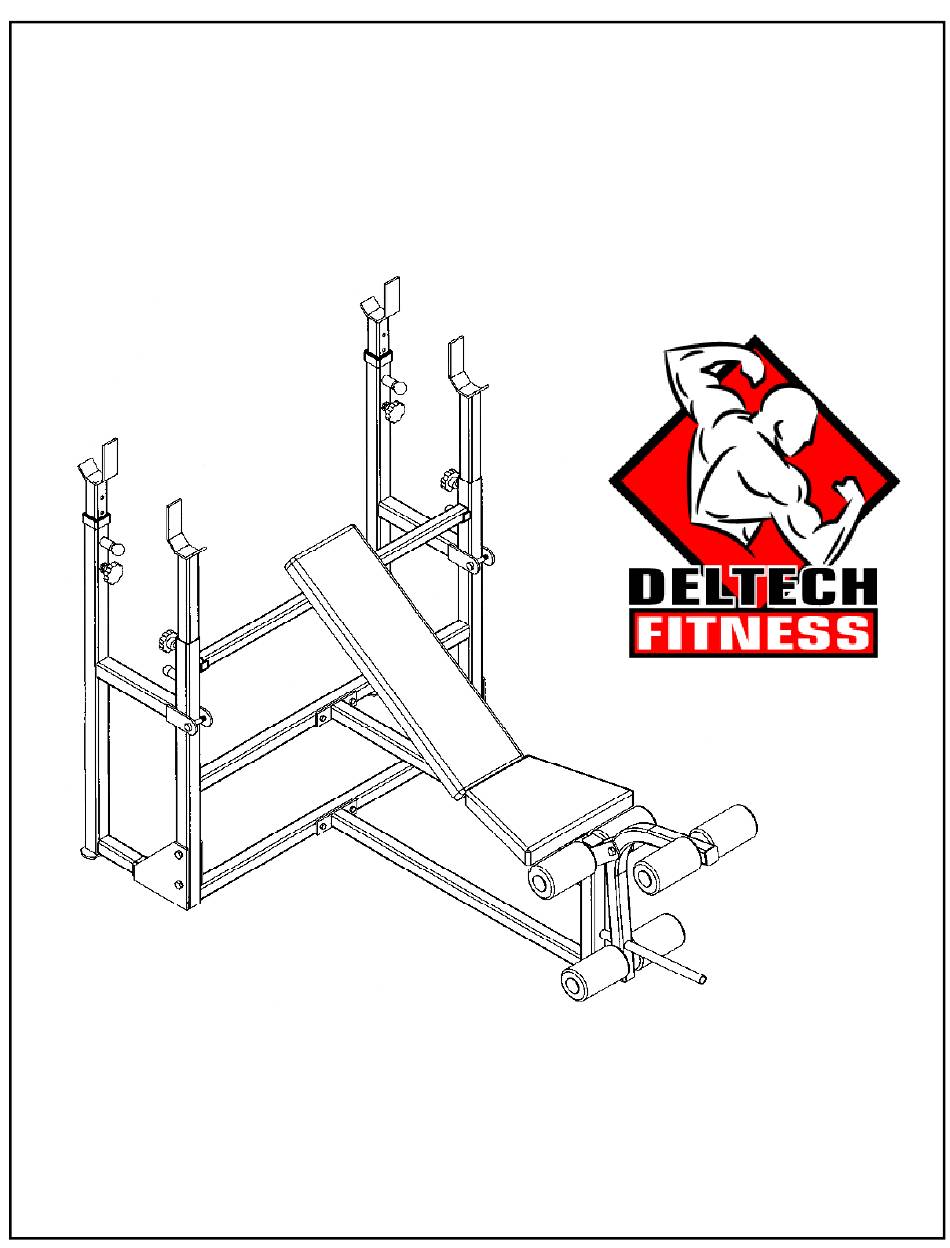

- Page 1 DF1050 OLYMPIC SQUAT COMBO BENCH Assembly Manual (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 2: Box Contents
QTY 1 QTY 1 QTY 1 QTY 1 HARDWARE LEG PAD LEG PAD TUBE INSTRUCTIONS QTY 1 QTY 3 QTY 6 *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 3 HARDWARE MUSHROOM CAP 1” x 2” 1-1/2” SQUARE 2” SQUARE 1-3/4” SQUARE QTY 6 QTY 2 QTY 2 QTY 4 QTY 3 RUBBER BUMPER SEAT SUPPORT PIN SELF LOCKING TURN KNOB QTY 1 QTY 1 TURN KNOB QTY 2 QTY 1 M10 x 25MM BOLT M12 x 79MM BOLT M12 x 75MM BOLT...
- Page 4 USE THE M10 x 25MM BOLTS (Z) AND THE M10 FLAT WASHERS (BB) TO SECURE THE BACKREST (A) AND THE SEAT (B) TO THE SUPPORTS (E) AND (F). *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
-
Page 5: Leg Extension Assembly
THE LEG YOKE (C). THEN SLIDE THE LEG PADS (M) ON TO THE LEG PAD TUBES (L). INSERT THE MUSHROOM CAPS (R). *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533... - Page 6 WEIGHT FRAME ASSEMBLY (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT WITH A WRENCH) INSTALL WEIGHT FRAME FEET (I) TO WEIGHT FRAME (H) USING M12 x 75MM BOLTS (X), M12 WASHERS (AA), AND M12 LOCKNUTS (CC).
-
Page 7: Main Frame Assembly
MAIN FRAME ASSEMBLY ATTACH MAIN FRAME (G) TO THE WEIGHT FRAME (H) USING M12 x 75MM BOLTS (X), THE M12 WASHERS (AA) AND M12 LOCK NUTS (CC). -
Page 8: Final Assembly
FINAL ASSEMBLY NOTE: THE INCLINE BAR IS NOT USED IN THE FLAT POSITION ATTACH THE BACKREST ASSY TO THE MAIN FRAME ASSEMBLY USING THE M12 x 79MM BOLT (W), THE M12 WASHERS (AA) AND THE M12 LOCK NUT (CC). ATTACH THE SEAT ASSEMBLY TO THE MAIN FRAME (G) USING THE M12 x 79MM BOLT (W) , THE M12 WASHER (AA) AND THE M12 LOCK NUT (CC). - Page 9 ADJUSTMENT ADJUSTING THE WEIGHT ARMS: RAISE AND LOWER THE WEIGHT ARMS USING THE PULL PIN. TURN THE KNOB TO LOOSEN FOR ADJUSTMENT. MAKE SURE THE PULL PIN IS SECURE IN THE ADJUSTMENT HOLE THEN TURN THE KNOB TO TIGHTEN BEFORE USE. (THE PULL PIN IS DESIGNED TO FIT TIGHTLY AGAINST THE TUBE AND WILL NOT ADJUST UNLESS IT IS LOOSENED FIRST.) THE LEG EXTENSION IS ADJUSTED THE SAME WAY.
-
Page 10: Safety Notice
SAFETY NOTICE WARNING: THE USER OF THIS WEIGHT EQUIPMENT ASSUMES THE POSSIBILITY OF INJURY BY EXERCISING ON THIS EQUIPMENT. THE POSSIBILITY OF RISK CAN BE REDUCED BY ALWAYS FOLLOWING THESE SIMPLE RULES: 1) BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR DOCTOR FOR A COMPLETE PHYSICAL EXAMINATION AND SUGGESTED EXERCISE PROGRAM SPECIFIC FOR YOU. - Page 11 Assembly Manual 300 LB CAPACITY DF1080 SHOWN ON DF1000 WEIGHT BENCH (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 12 M10 x 79MM BOLT M10 WASHER QTY 2 QTY 2 QTY 4 (888) 258-0533 FOR YOUR SAFETY READ ALL INSTRUCTIONS CAREFULLY *NOTE IF YOU ARE MISSING HARDWARE OR HAVE ANY FIT UP PROBLEMS PLEASE CONTACT DELTECH FITNESS TOLL FREE (888) 258-0533...
- Page 13 (NOTE: THE NUTS USED ON THIS BENCH ARE LOCK NUTS, THIS MEANS YOU MUST TIGHTEN THEM DOWN PAST THE PLASTIC INSERT.) TOOLS REQUIRED: WRENCHES OR METRIC SOCKET SET ATTACH THE WEIGHT FRAMES (A) TO THE OLYMPIC BENCH USING THE M10 x 80MM BOLTS (E), M10 LOCKNUTS (G), AND M10 WASHERS (F).
