Disc Coulter; Subsoil Decompactor - Rabe Albatros Variant Operating Instructions Manual

Albatros / Super-Albatros
2 1
ca. 5 cm
ca. 2-4 cm
17
1
2
3
Subject to technical modifications
1
2
18
16
05.2013

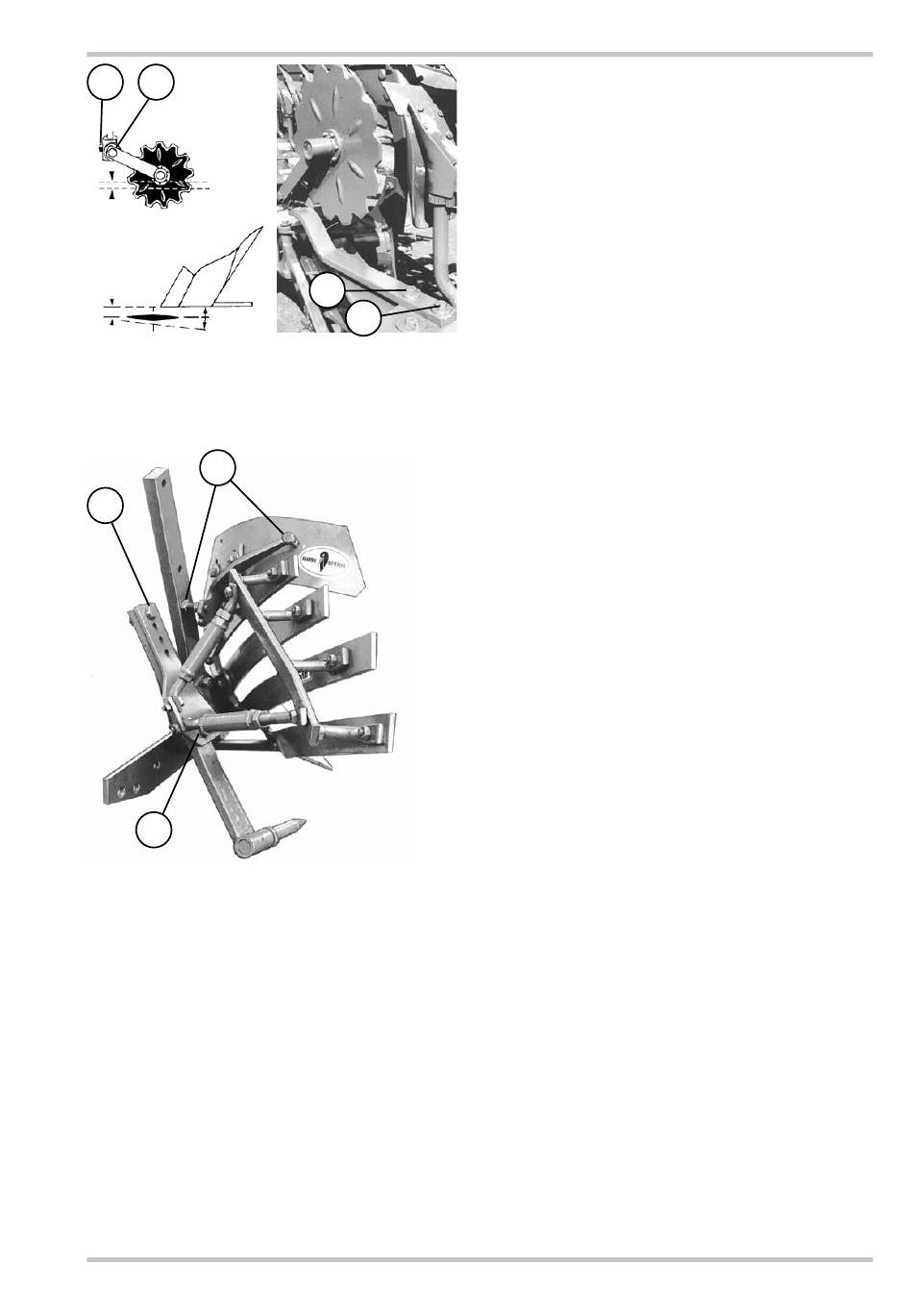

Disc coulter

Installable with "HydroAvant" in front of all bodies,
with "Variant" only in front of the last bodies.
Limit the depth in such a way that between the disc
bearing housing and the ground is not more than
ca. 5cm of free space – turn tooth washer (17/1).
„Landside" distance to the body ca. 2 - 4 cm; may
be adjusted by turning the arms: "Variant" – loosen
screws (18/2 = centre of rotation) and (18/2)
(tighten with 410 Nm). Limit side swing with
adjusting ring (17/2); take care that the disc coulter
can adjust in direction of motion.
If the plough is transported in horizontal position
- with combi wheel - the adjusting rings (17/2) must
be tightened very well.

Subsoil decompactor

Decompactor depth is adjustable (16/2).
Overload protection: shear bolt M 16x50-4.6 (16/3).
To set the plough down, swing the decompactor to
the back – remove the shear bolt.
