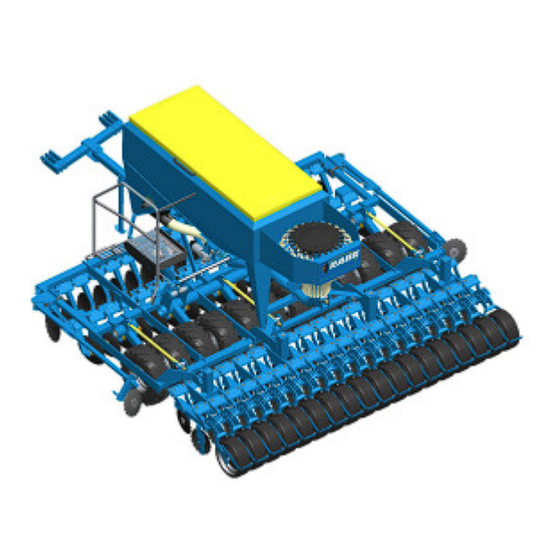

Rabe Aquila Operating Instructions Manual

Mulch seed drill

Advertisement

Quick Links

Order no. 9900.01.34GB01
Operating instructions
Mulch seed drill
Aquila

Advertisement

Table of Contents
loading

Summary of Contents for Rabe Aquila

  • Page 1 Order no. 9900.01.34GB01 Operating instructions Mulch seed drill Aquila...
  • Page 2 We reserve the right to make technical changes.
  • Page 3 The use of non-original accessories, spares and/or consumables that do not carry specifi c approval from Rabe shall void all warranty liabilities. We can accept no liability whatsoever for damage, loss or injury resulting from the carrying out of unauthorised repairs and/or modifi...
  • Page 4: Table Of Contents

    5.3 Lane marker 5.4 Radar system 5.5 Power supply 5.6 Fan speeds 5.7 Recommended dosage settings for Rabe pneum. drilling machine with hydraulic blower drive 6. Distributor head/tramline 7. Checking of sowing accuracy on drilling machines with elec. dosing wheel drive.
  • Page 5: Brief Description

    Aquila units, Rabe now offers a new range of seed- drill machines designed to cover the needs of both conventional seeding and mulch sowing. The front of the Aquila is fi tted with a Field Bird two-row disc mulcher (5.1/1). The tyre-mounted packing roller (5.1/2) (Ø 780x264) running behind it covers the entire operating width of the machine.
  • Page 6: Machine Data

    Machine data Aquila Basic type Aquila 4,5m Aquila 6m Dry weight in kg (approx.) 5600 6800 Tractor from KW/PS 103/140 147/200 Working width D in mm 4500 6000 (approx.) Lengths A in mm (approx.) 6870 Transport width B in mm 3000 (approx.)
  • Page 7: Machine Data

    15 km/h 25 or 40 km/h* Transport speed * depending on operating permit Increased noise level perceived by tractor driver (during operation) < “70 dB(A)”. Aquila hose connections (LQNODSSHQ9RUZHUN]HXJH )ROGLQJ  IURQW FXOWLYDWLRQ 5HSOLDJH  2XWLOV *HEOlVH 'UXFN5FNODXI...
  • Page 8: Safety Precautions

    Safety precautions Do not allow anyone to stand between the tractor and the imple- ment during coupling or uncoupling, even if this is to allow opera- tion of the external hydraulic controls. Danger of injury! Always set the tractor’s hydraulic control mechanism to “attitude control”...
  • Page 9: Towing

    1. Towing 1.1 Coupling the implement Couple the lower-arm floating axle (9.1/1). Cor- rectly secure the coupling assembly. Secure the tractor’s lower arm in the centre. Retract the support stands (9.1/2). 1.2 Brakes Connect the yellow brake line (9.2/2). Connect the red brake line (9.2/1).
  • Page 10: Parking The Implement

    3. Lowering the implement The implement can be parked in either its retracted (10.1) or extended position. We recommend putting the implement in its folded- out position (10.2) and lowering it completely before storing it for the winter. Parking in retracted position (10.2): Lower the running gear as far as possible.
  • Page 11: Use And Adjustment

    5. Use and adjustment 5.1 Previous soil tillage 5.1.1 Mulching-disc assembly The working depth of the disc coulters (11.1/1) is set by the tyre-mounted roller (11.1/2). Adapt the drill speed to the nature of the mulching operation. This also increases sowing perfor- 11.1 mance.
  • Page 12: Lane Marker

    5.3 Lane marker The disc lane markers can be centred up with respect to the tractor. Setting: move the extension arms into their operating positions. Adjust the disc contact point (12.1/1) correspondingly; (depending on working width and row distance of the drilling machine and the tractor- lane width during lane marking).
  • Page 13: Radar System

    5.4 Radar (13.1/1) The radar device supplies the control system with traverse-related data. Tracking detection is carried out without contact. The dosing system stops if the fan speed is too low (to prevent blockages). 5.5 Power supply (13.2) Operating power is taken directly from the tractor battery.
  • Page 14: Fan Speeds

    5.6 Fan speeds The corresponding blower speed should be selected to provide an appropriate stream of air for the operating width and seed type. Fan speeds Fan speed Operating width from 4m 2500 3500 The current fan speed is displayed at the computer terminal (14.1).
  • Page 15: Recommended Dosage Settings For Rabe Pneum. Drilling

    5.7 Seed wheel settings for pneumatic seed drills with hydraulic fan drive Seed wheels Standard seed wheels Coarse seed Coarse seed wheel(100% wheel (50% 2 small Coarse 1 small fi lled) fi lled) seed Bottom seed wheel seed wheel wheels Seed Order No.
  • Page 16: Distributor Head/Tramline

    6. Distributor head/tramline The dosed seed is evenly allocated by the distri- butor head, and fed to the coulters via the spiral hoses. Note that the hoses should slope downward towards the coulters Sagging hoses should be made to slope downwards and/or shortened accor- dingly.
  • Page 17: Checking Of Sowing Accuracy On Drilling Machines With Elec. Dosing Wheel Drive

    7.1 Tips for correct usage - Preparing the combined implement for work: 7. Checking of sowing accuracy on soil preparation tools, running gear, lane mar- drilling machines with elec. dosing kers, fan speed / hydraulic motor. wheel drive. - Check settings (as in turning test): Dosing- wheel setting (coarse-dosing wheel blocked Rule 1 when using fine seed), agitator shaft (agitator...
  • Page 18: Maintenance Instructions

    100 hours). A toothed pressure roller will remain in good condition if it is cleaned after each operation and pro- tected from corrosion. Park the Aquila machine in a dry, undercover location, with its coulters and lane discs clean and protected to prevent corrosion. Protect the electronic terminal box (with connection cables) from moisture and store in a dry 18.2...
  • Page 19: Fuses

    8.1 Fuses Fuse overview Rabe arti- Place of Fuse designation cle no. installation Supply cable Flat vehicle-type loom fuse 9012.14.34 (19.1/1) Flat vehicle-type Switch box fuse 9012.14.10 (19.2/1) 10 A 19.1 Residual risks Danger zone Note Folding side sec- Operating instructions...
  • Page 20: Caution / Transport

    (additional warning lights must be fitted if the implement protrudes by more than 400 mm outside the normal trailer lights). RABE can supply, as optional extras, the safety covers required for transport on public roads. RABE can also supply the TÜV certificate required for issue of an operating permit in certain jurisdictions.
  • Page 21: Arrangement Of Warning Signs On The Implement

    10. Arrangement of warning signs on the implement 2 16 Einklappen+Vorwerkzeuge Folding + front cultivation Hose designation Repliage + Outils Gebläse Druck/Rücklauf Fan pressure / return Turbine pression/ retour Order no. 9998.08.02 from 4m Aufladung Scharschienen Load on coulter bar Point déncrage de la rampe Fahrwerk Transport wheels...
