Summary of Contents for Rabe Packer CR

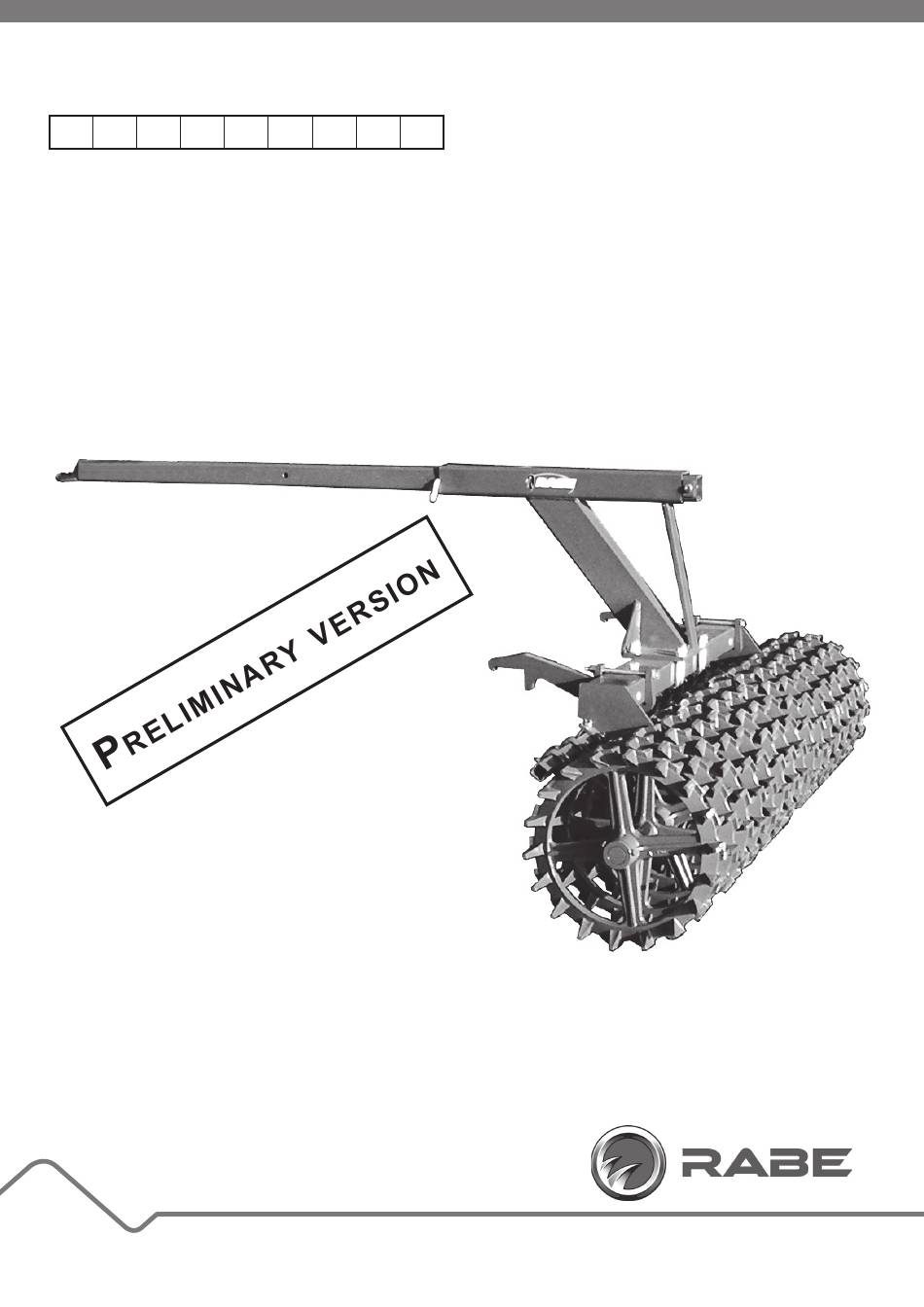

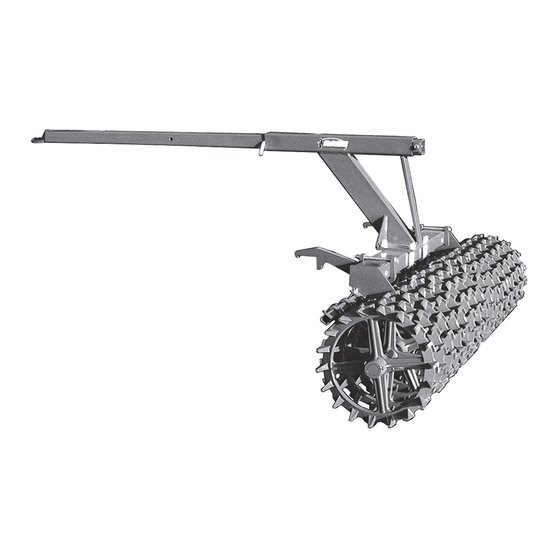

- Page 1 OPERATING INSTRUCTIONS (TRANSLATION OF THE ORIGINAL OPERATING INSTRUCTIONS DE) Serial-No. Packer CR Trailing roller for packer...
-
Page 3: Table Of Contents
© Rabe Agri GmbH, Germany, retains the copyright for this document. Reproduction, transfer to other media, translation or use of extracts or parts are prohibited without the express permission of Rabe Agri GmbH. All rights reserved. The contents of this operating manual can be modified without prior notice. -
Page 4: Implement Description
Implement description The NE series Nockering Roller is a trailed bed roller for seed bed preparation on previously ploug- hed or similarly prepared soils; it is specially designed as a trailed implement for furrow subsoil packers. As well as the crushing and soil recompaction action, it can achieve an erosion-inhibiting seed bed structure with the selected ring shape. -
Page 5: Commissioning / Operation
Commissioning / Operation Safety instructions: • There is a risk of injury during the turning process due to unpredictable movements of the implement and the risk of being sandwiched between packer and trailed implement. It is therefore forbidden to stand in the swivel and working area of the combination during use. -
Page 6: Working And Transport Positions
Working and transport positions Semi-mounted implements Safety instructions: • Never stand between packer and trailing implement during forward and reverse travel – crushing hazard! • Note length of the combination! For the transport in the front power lift, the distance from the centre of the steering wheel to the front edge of the attachment must not exceed 350 cm on public roads! When using the trailed roller on a single-furrow packer of the UPA 900 series, it is possible to... -
Page 7: Implements With Transport Wheels
Implements with transport wheels Safety instructions: • Only swivel the running gear when the packer is lowered. • When swivelling the running wheels, forces occur outside the end positions which can cause the extension lever to fly around. Grip the lever firmly and do not release in the unsecured running gear position. Risk of injury by lever flying back. -
Page 8: Maintenance / Repairs
Maintenance / Repairs Safety instructions: • Only carry out maintenance work when the implement is properly parked or attached! • Ensure for versions with running gear that the part to be maintained is unloaded; use suitable support elements if necessary! •... -
Page 9: General Safety Instructions
General safety instructions • Check implement and tractor for road safety and operational safety before each use! • As well as the instructions in this operating manual, also observe the generally applicable safety and accident prevention regulations! • The installed warning and information signs give important information for safe operation – compliance with these provides your safety! •... -
Page 10: Explanation Of Symbols / Warning Signs
Explanation of symbols / Warning signs Possible danger points on the implement are pointed out using corresponding information signs with the following meanings: Attention Read the operating manual and note safety instructions before operation, maintenance and repair work! Attention Risk of injury due to crushing and shearing points! The warning signs on the implement must be kept legible by regular cleaning and replaced if necessary! Additional information about the attachment of heavy implements... - Page 11 Determine / measure weight Determine the following data by weighing or measuring: Character Data Distance between the centre of gravity of front attachments / front ballast and the centre of the front axle Wheelbase of the tractor Distance between the centre of the rear axle and the centre of the lower linkage ball Distance between centre of lower...
- Page 12 Calculate actual rear axle load Calculate the actual rear axle load T H tat Enter the calculated rear axle load in the table. H tat V tat Tyre load index Enter the tyre load index of two tyres in the table. Table The calculated and measured values are shown in the table.
-
Page 13: Technical Data For Basic Configuration
Technical data for basic configuration Working width Weight Number Type (approx. cm) (approx. kg) of rings NE 11-185 NE 12-205 NE 13-220 NE 14-240 NE 15-260 NE 16-280 NE 17-300 NE 18-320 NE 20-350 NE 22-380 Ring diameter 550 mm / ring spacing approx. 170 mm Attachment Weight of transport wheels approx. -
Page 14: Declaration Of Conformity
09.2009 Subject to technical modifications... - Page 16 RABE ZI Nord Les Gaudères 37130 Langeais Frankreich Tél. (+33) 2 47 96 72 61 Fax (+33) 2 47 96 71 85 info@rabe-gb.fr www.rabe-gb.fr RABE Am Rabewerk 1 49152 Bad Essen Deutschland Tél. +49 (0) 54 72 771 - 0 Fax +49 (0) 54 72 771 -195 info@rabe-gb.de...
