Summary of Contents for LEGRAND CHIEF CSSMP15X10

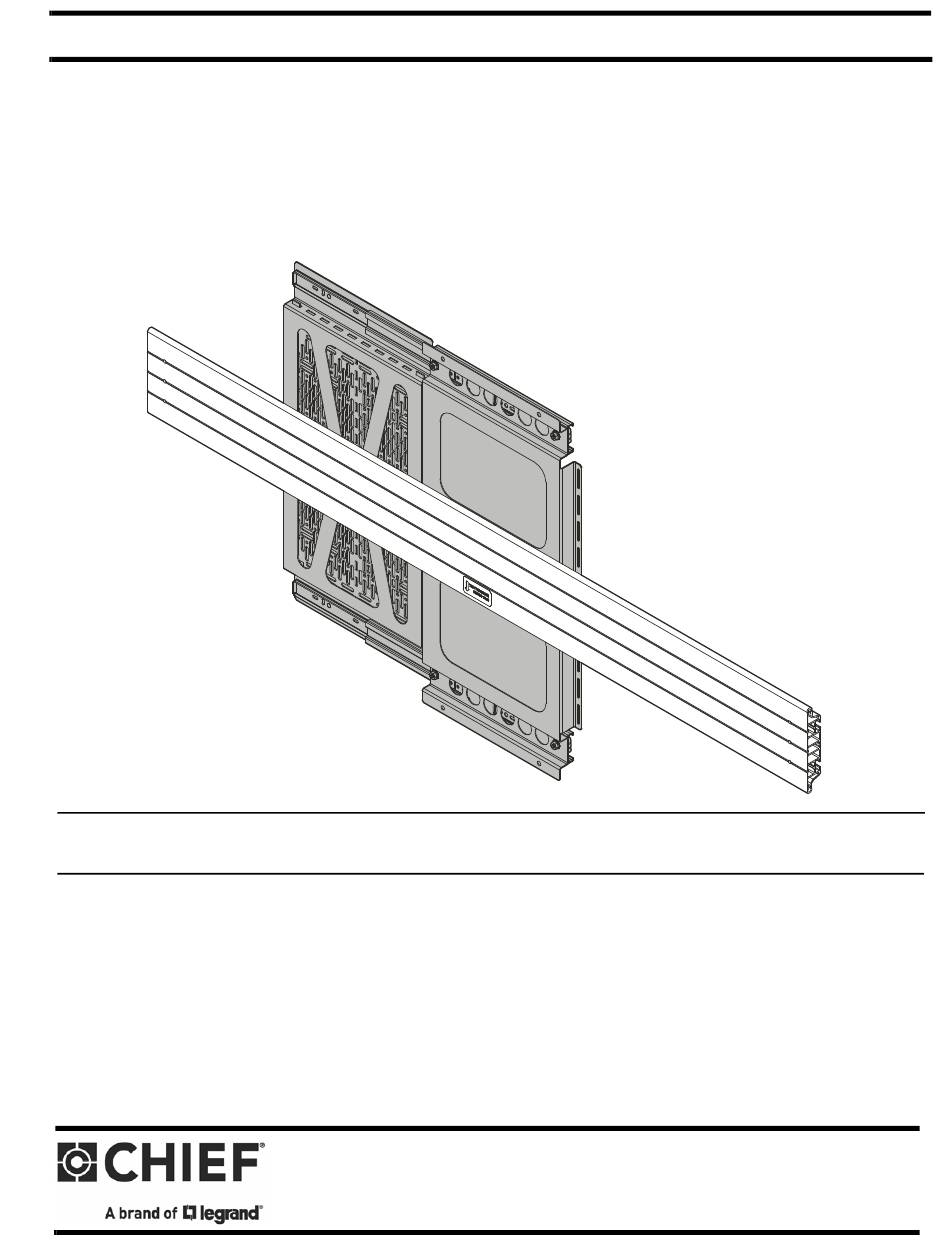

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Sliding Storage Panel Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description CSSMP15X10...
-
Page 2: Important Safety Instructions
The information contained in this document is subject WARNING: Use this accessory only for its intended use as to change without notice or obligation of any kind. Legrand described in these instructions. Do not use attachments not makes no representation of warranty, expressed or implied, recommended by the manufacturer. - Page 3 Installation Instructions CSSMP15X10 DIMENSIONS DIMENSIONS: INCHES [MILLIMETERS]...
-
Page 4: Installation Instructions
CSSMP15X10 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar... -
Page 5: Tools Required For Installation
Installation Instructions CSSMP15X10 TOOLS REQUIRED FOR INSTALLATION 1/2" 1/4" PARTS Installation Hardware Kit C (2) A (4) [Slot nut] B (4) [10-12 x 1" #10 x 1" drywall anchor] D (4) F (2) 5/16-18 x 3/8" [Rivet] E (20) .625x.140x.031 G (1) [CSSMP15X10 Storage Panel]... - Page 6 CSSMP15X10 Installation Instructions INSTALLATION NOTE: The storage panel (G) may be installed using either of two methods. Proceed to either Installing Storage Panel to Wall section OR Installing Storage Panel to Extrusion section. Installing Storage Panel to Wall NOTE: The storage panel (G) may be installed directly on the wall in one of two horizontal positions. (See Figure 1) Horizontal Wall Mount - Right Horizontal Wall Mount - Left The storage panel MUST be mounted...
-
Page 7: Attaching Components
Installation Instructions CSSMP15X10 Attaching Components Insert four 5/16-18 x 3/8" button head cap screws (D) into the two slot nuts (C) and partially tighten. (See Figure 4) Remove mounting plate from storage panel by pressing inward on the clip located at the bottom of the storage panel. Slide two slot nuts (C) into end of extrusion. - Page 8 P +31 (0) 495 580 852 F +31 (0) 495 580 845 Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 8800-003122 Rev02 18-24 Shan Mei Street 2019 Legrand Fotan, Shatin, Hong Kong www.legrandav.com P 852 2145 4099 07/19 F 852 2145 4477...
