I N S T A L L A T I O N I N S T R U C T I O N S
(Standard three-upright configuration shown for each model.
Configuration will vary based on application)
TILD1X05US-L
TILD1X05US-M
TILD1X1US
-L
TILD1X05US-R
TILD1X1US-M
TILD1X1US-R
TILHDWUS
Kit
TILVAB2
TILD1X2US-M
Accessory
TILD1X2US-L
TILD1X2US-R
U-Slim Series LED Wall Mounts / Accessory
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
TILD1X05US / TILD1X1US /
TILD1X2US / TILVAB2
Advertisement
Table of Contents
Related Manuals for LEGRAND Chief TILD1X05US
Summary of Contents for LEGRAND Chief TILD1X05US

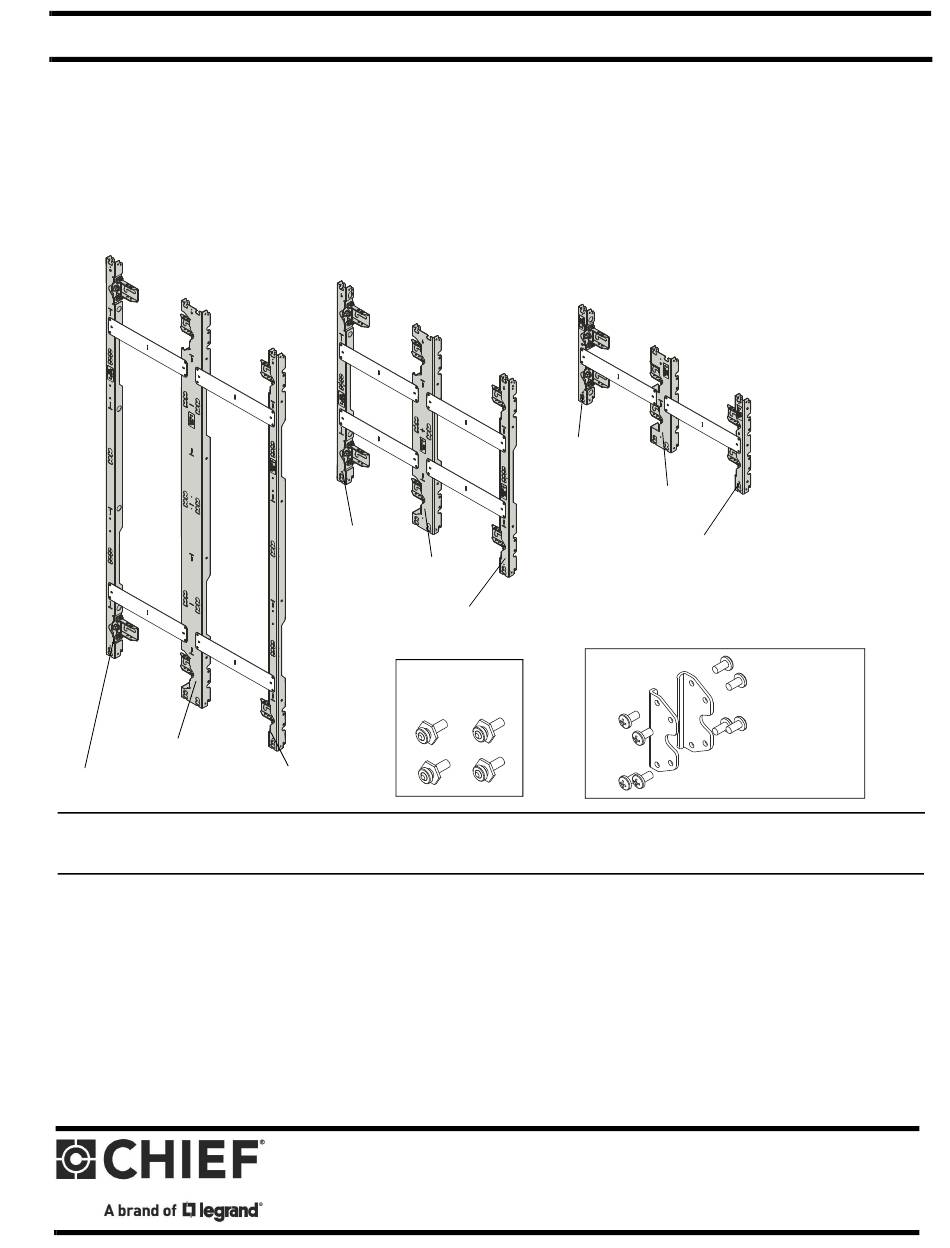

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S (Standard three-upright configuration shown for each model. Configuration will vary based on application) TILD1X05US-L TILD1X05US-M TILD1X1US TILD1X05US-R TILD1X1US-M TILD1X1US-R...
-
Page 2: Important Safety Instructions
See figure below for product. The information contained in this document is subject examples. to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, TILD1X05US (example) regarding the information contained herein. - Page 3 TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole...
-
Page 4: Tools Required For Installation
Installation Instructions TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 TOOLS REQUIRED FOR INSTALLATION Level 7/32" [4+ ft. long] [Small level] 3/8" 1/2" String [Laser level] 1" deep Ratchet with well socket 1/2" drive PARTS Mounting Hardware Kit (Qty per bag) TiLDUS Hardware Kit (Qty per bag) B (2) G (4) -
Page 5: Pre-Installation
Installation Instructions TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 INSTALLATION bottom row. This determines to which end (top or bottom) the vertical connector brackets are attached. Preinstallation Just a tip - IMPORTANT ! : Reference the LED screen installation For larger LED walls it is helpful to manual for specific instructions regarding care, handling, check placement and alignment of the mounts by cabling and installation of the LED screens. - Page 6 TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Installation Instructions Connecting Mounting Uprights Preparing LED Screens Use four 10-24 x 1/2" flathead Phillips screws (Q) to secure Attach four mounting buttons (L) per LED screen, one to spacer plates (P) to mounting uprights (L and M or M and each corner of LED screen, with four M5 x 20mm Phillips flat M).
- Page 7 Installation Instructions TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Tighten screws partially installed in Step 2 to secure mount to connectors (K). (See Figure 8) Location for top left corner of LED wall (J) x 2 5.25" (K) x 2 Figure 5 [TILD1X05US shown as example] Mounting slot...
- Page 8 TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Installation Instructions Installing First Mount The TILD1X05US / TILD1X1US /TILD1X2US (U-Slim Series) (TILD1X1US shown) LED wall mounts are designed to be mounted to a bare 8" concrete wall or 8"x 8"x 16" concrete block wall Table 1: Fastener Information WALL PILOT...
- Page 9 Installation Instructions TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Slide the left (A-Left) and right (A-Right) adjustment washers 12. Drill pilot holes in centerline of lower slots (see Table 1 for into place behind the partially installed lag screws. (See size) and follow fastener information (appropriate for wall Figure 12) type) located in Table 1.
- Page 10 TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Installation Instructions Mark mounting hole in top mounting slot along the horizontal line marked in Step 3 of Installing First Mount Section. (See Figure 16) NOTE: The mounting holes are 18.06" apart on-center for center (M) and center (M) or center (M) and right (N) uprights.
- Page 11 Installation Instructions TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 [TILD1X2US shown as example] Circles indicate tapping screw hole locations for attaching string to assist with alignment of mounts. Use locations nearest depth adjustment points for best results. Use locations nearest depth adjustment points for best results.
- Page 12 TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Installation Instructions Installing Housings and LED Screens Adjustments IMPORTANT ! : Reference the LED screen installation Depth Adjust (Macroadjust) manual for specific instructions regarding care, handling, cabling and installation of the LED housings and screens. Remove LED housings from mounting system.
- Page 13 Installation Instructions TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Depth Adjust (Microadjust) Fastener Installation Methods IMPORTANT ! : See Table 1 for appropriate hardware The depth of each wall mount section is controlled by a screw accessible only after removing LED display from LED housing. and pilot hole sizes for various wall types.
-
Page 14: Configuration Examples
TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Installation Instructions Configuration Examples The following are just two examples of the many configurations which are possible with the US Series wall mounts. TILD1X1 3 x 3 CONFIGURATION tildTild BILL OF MATERIALS FOR THIS CONFIGURATION 1-TILD1X1US-L 2-TILD1X1US-M... - Page 15 TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Installation Instructions 2.76 Pyramid configuration 2.01 70.2 51.1 MAXIMUM MINIMUM DEPTH DEPTH PARTS LIST FOR THIS CONFIGURATION 1-TILD1X2US-L 1-TILD1X2US-R 4-TILD1X1US-M 3-TILD1X1US-L 3-TILD1X1US-R 3-TILVAB2...
- Page 16 Installation Instructions TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 DIMENSIONS TIL1D1X05 TIL1DX05US-L 2.01 2.76 TIL1DX05US-M TILD1X05US-R 51.1 70.2 MINIMUM MAXIMUM DEPTH DEPTH DEPTH ADJUST KNOBS REQUIRE A 3/4 OR 19 mm SOCKET 9.81 249.1 SHOWN WITH 500 X 500 mm UNILUMIN U-SLIM DVLED PANELS DIMENSIONS: INCHES...
-
Page 17: Dimensions: Inches
TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Installation Instructions DIMENSIONS...cont’d TIL1D1X1 TILD1X1US-L 2.01 TILD1X1US-M TILD1X1US-R 51.1 MINIMUM DEPTH DEPTH ADJUST KNOBS REQUIRE A 3/4 OR 19 mm SOCKET 23.8 SHOWN WITH 1000 X 500 mm DIMENSIONS: INCHES UNILUMIN U-SLIM DVLED PANELS [MILLIMETERS]... - Page 18 Installation Instructions TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 DIMENSIONS...cont’d TIL1D1X2 TILD1X2US-L 2.01 51.1 MINIMUM DEPTH TILD1X2US-R 23.8 TILD1X2US-M DIMENSIONS: INCHES SHOWN WITH 500 X 500 mm [MILLIMETERS] UNILUMIN U-SLIM DVLED PANELS...
- Page 19 TILD1X05US / TILD1X1US / TILD1X2US / TILVAB2 Installation Instructions DIMENSIONS...cont’d TILVABP2 TILVAB2 KIT INCLUDES 2 BRACKETS AND HARDWARE LOOSELY INSTALL THE REAR UPPER SCREWS DETAIL A SCALE 1 : 1 INSTALL VERTICAL ATTACHMENT BRACKETS AT THE TOP OF THE LOWER UPRIGHTS IT IS EASIER IF THIS IS DONE PRIOR TO INSTALLING THE MOUNTS ON THE WALL SLIDE UPPER MOUNT UPRIGHTS...
-
Page 20: Installation Instructions
