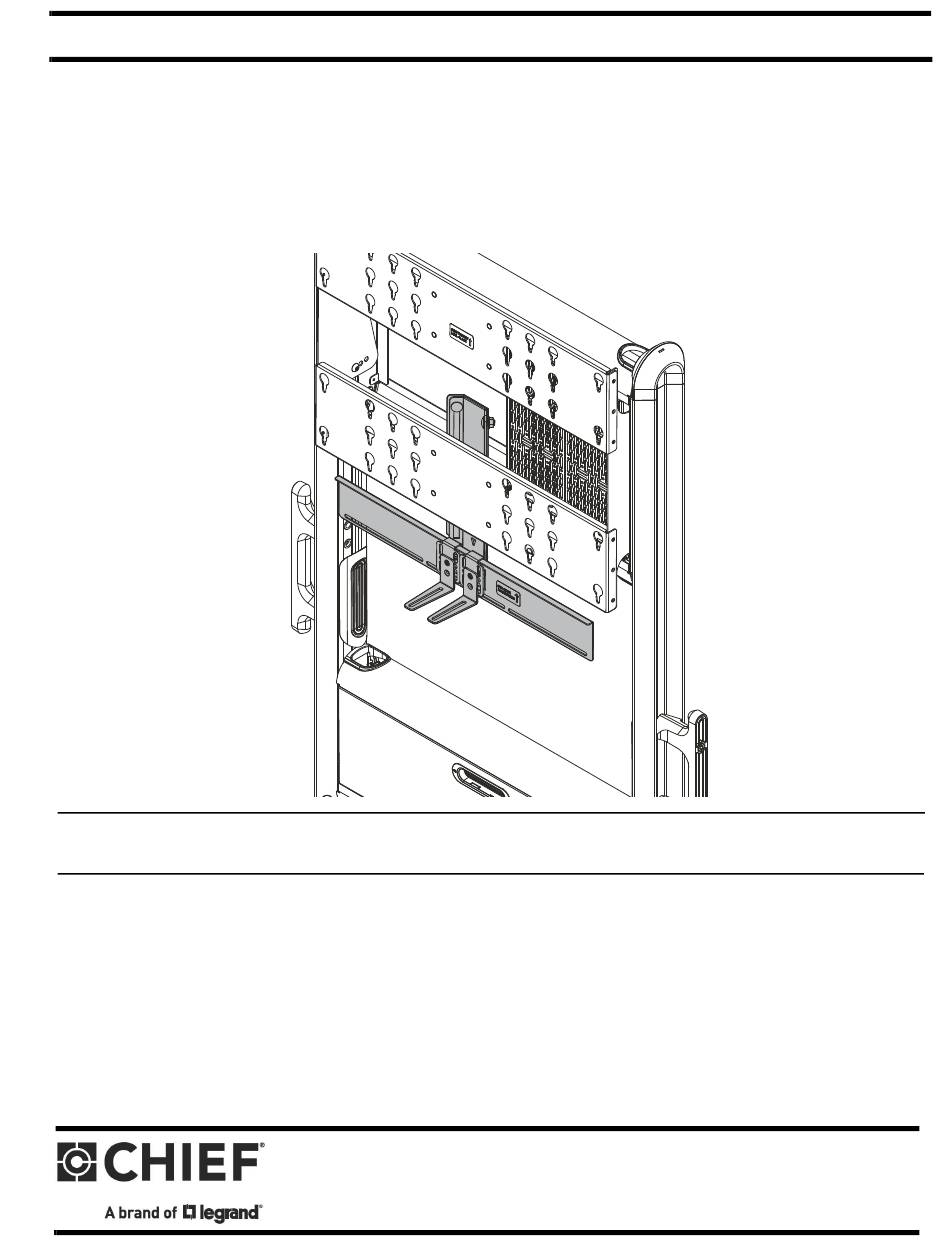

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Designer Cart Soundbar Shelf Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description SCAS...
-
Page 2: Important Safety Instructions
Do not use this accessory outdoors. contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand WARNING: RISK OF INJURY TO PERSONS! Do not use... - Page 3 Installation Instructions SCAS Dimensions-Above Orientation 22.63 MAX OVERALL 21.88 2.56 20.63 M AX SHELF BRACKET SPACING 21.88 M AX CENTER OF SPEAKER M OUNT 22.88 23.31 M AX MAX EXTENSION OVERALL FRO M C /L OF DISPLAY 3.00 4.75 5.87 MOUNT CAN BE USED EITHER ABOVE OR BELOW THE DISPLAY Dimensions-Below Orientation 21.88...
- Page 4 SCAS Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
-
Page 5: Tools/Parts Required For Installation
Installation Instructions SCAS TOOLS/PARTS REQUIRED FOR INSTALLATION 13mm B (1) A (1) [Speaker bracket] [Attachment plate] C (2) [Adapter bracket] E (4) F (4) H (2) #10-24 x 1/2" D (2) G (2) 1/4-20 x 1/2" #10-24 x 1/4" [Speaker interface] #10-24 x 3/8"... - Page 6 SCAS Installation Instructions Attaching Shelf to Cart Installing Soundbar (not included) Use four M8 hex nuts (D) to secure attachment plate (A) to designer cart. (See Figure 3) WARNING: Exceeding the weight capacity can result in NOTE: SCAC shelf may be installed in an above or below serious personal injury or damage to equipment! It is the orientation.
- Page 7 Installation Instructions SCAS Place two speaker interfaces (D) onto speaker bracket. (See Figure 6) NOTE: Speaker interfaces (D) may be installed anywhere horizontally along speaker bracket (B) depending on soundbar. Use two #10-24 x 3/8" button head cap screws (G) and two #10 washers (K) to secure two speaker interfaces (D) to speaker bracket (B).
- Page 8 P +31 (0) 495 580 852 F +31 (0) 495 580 845 Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 8800-003310 Rev00 18-24 Shan Mei Street 2022 Legrand Fotan, Shatin, Hong Kong www.legrandav.com P 852 2145 4099 07/2022 F 852 2145 4477...
