I N S T A L L A T I O N I N S T R U C T I O N S
TIL1X2PT
TIL1X3PT
TIL1X4PT
TILVABPT
Accessory
PT Series LED Wall Mounts / Accessory
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
TIL1X2PT / TIL1X3PT / TIL1X4PT /
TILVABPT
Advertisement
Related Manuals for LEGRAND CHIEF TIL1X2PT
Summary of Contents for LEGRAND CHIEF TIL1X2PT

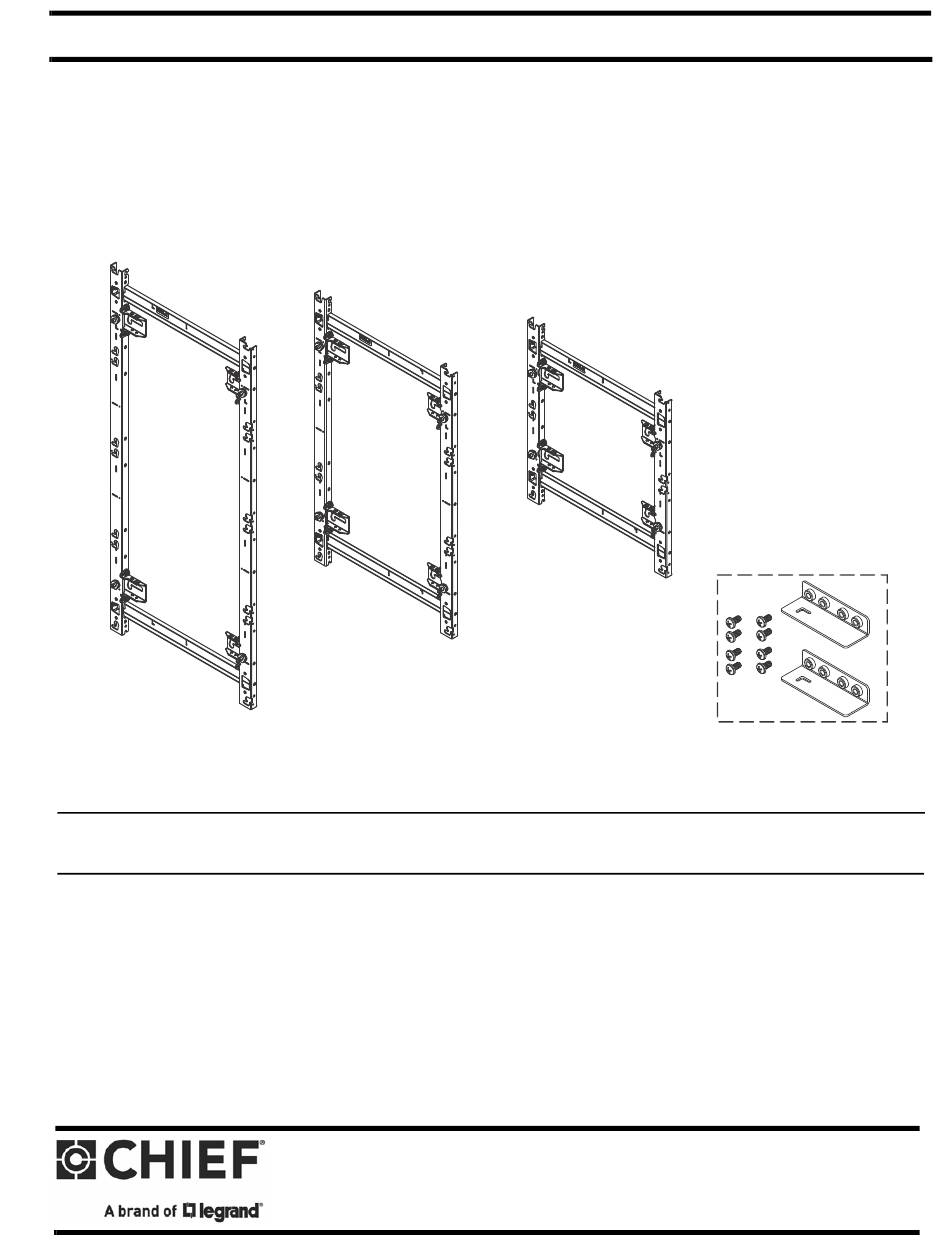

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S TIL1X2PT TIL1X3PT TIL1X4PT TILVABPT Accessory PT Series LED Wall Mounts / Accessory Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description...
-
Page 2: Important Safety Instructions
• TIL1X3PT: 60 lbs (27.2 kg) - 20 lbs (9.1 kg) per screen; to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, • TIL1X4PT: 80 lbs (36.3 kg) - 20 lbs (9.1 kg) per screen. - Page 3 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole...
-
Page 4: Tools Required For Installation
Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT TOOLS REQUIRED FOR INSTALLATION Hardware Required - not included Level (for installation into steel stud walls) [4+ ft. long] 7/32" Chief brand FCAT1 Toggler Kit; OR 3/8" [Small level] 1/2" Hardware for installation to steel stud wall: 1/2"... -
Page 5: Pre-Installation
Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT INSTALLATION IMPORTANT ! : Determine location for the top left corner of the LED wall. Preinstallation (See Figure 2) IMPORTANT ! : Reference the LED screen installation Make a mark 7" below the planned top left corner of the LED manual for specific instructions regarding care, handling, wall. - Page 6 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions Installing First Mount IMPORTANT ! : It is easier to install the vertical connector kit BEFORE the mounts are attached to the The TIL1X2PT / TIL1X3PT /TIL1X4PT (TVF Series) LED wall wall.
- Page 7 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT IMPORTANT ! : Refer to Fastener Installation Methods Lay levels across flat of the mounting holes and center-of- (located in Appendix at end of Installation Instructions) screen indicators, and vertically along side of mount to for details on installing product into various wall types.
- Page 8 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions 10. Using a level on the front of the mount in various places, use Loosely fasten second mount to first mount using two 1/4" a 1" socket and T-handle driver to adjust the leveling feet on steel washers (F) and two 1/4-20"...
- Page 9 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT IMPORTANT ! : For larger LED walls it is helpful to check placement and alignment of the mounts by putting a few LED housings in place in the bottom row of the installed mounts (referencing the LED screen installation manual for specific instructions) during the mount installation, checking alignment before removing the housings, and...
- Page 10 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions 18. Install the remaining #10 x 1/2" self-tapping screws (G) on 19. Run a string between the self-tapping screws installed in the mount, as necessary, to assist in centering the LED Step 18 to assist with alignment across long sections of housings.
- Page 11 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installing Housings and LED Screens Install the first LED housing in the lowest left-hand corner of the video wall by aligning mounting buttons on the housing IMPORTANT ! : Reference the LED screen installation with the mounting holes on the wall mount.
- Page 12 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions Using levels, check the level and plumb of the housings installed on the mounts and adjust as necessary following information in the Adjustments section. 10. Connect housings following instructions included with LED screens.
- Page 13 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Fastener Installation Methods Steel Stud IMPORTANT ! : See Table 1 for appropriate hardware IMPORTANT ! : See Site Requirements for Steel Stud and pilot hole sizes for various wall types. Installation section before proceeding with Steel Studs IMPORTANT ! : The expanse of the LED wall will most installation to ensure installation site meets requirements!
- Page 14 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions Line up anchor with attachment point. Steel stud Insert 1/4-20 x 1-3/4" Phillips pan head screw through 1/4" (if present) washer, corresponding mounting hole in wall bracket and Drywall into anchor, and tighten until flush against wall bracket. DO NOT over tighten! (See Figure 23) Washer Phillips...
-
Page 15: Configuration Examples
TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions Configuration Examples The following are just two examples of the many configurations which are possible with the PT Series wall mounts. - Page 16 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT...
- Page 17 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions DIMENSIONS TIL1X2PT DIMENSIONS: INCHES [MILLIMETERS]...
- Page 18 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT DIMENSIONS...cont’d TIL1X3PT SLOTS DIMENSIONS: INCHES [MILLIMETERS]...
- Page 19 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions DIMENSIONS...cont’d TIL1X4PT SLOTS DIMENSIONS: INCHES [MILLIMETERS]...
- Page 20 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT DIMENSIONS...cont’d TILVABPT 1.25 31.8 KIT INCLUDES 2 BRACKETS 0.81 20.6 3.50 88.9 0.38 DETAIL A SCALE 1 : 2 DETAIL B SCALE 1 : 2 DIMENSIONS: INCHES [MILLIMETERS]...
- Page 21 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions DIMENSIONS...cont’d TiLED 3X3 CONFIGURATION DIMENSIONS: INCHES [MILLIMETERS]...
- Page 22 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT DIMENSIONS...cont’d TiLED 3X3 CONFIGURATION...cont’d SCALE 1 : 3 TiLED 4X4 CONFIGURATION DIMENSIONS: INCHES CREATED USING FOUR TIL1X4PT [MILLIMETERS]...
- Page 23 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions DIMENSIONS...cont’d TiLED 4X4 CONFIGURATION...cont’d SCALE 1 : 3 DIMENSIONS: INCHES [MILLIMETERS]...
- Page 24 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT DIMENSIONS...cont’d TiLED 5X5 CONFIGURATION CREATED WITH THE FOLLOWING COMPONENTS 5-TIL1X3PT 5-TIL1X2PT 5-TILVABPT DIMENSIONS: INCHES [MILLIMETERS]...
- Page 25 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT...
- Page 26 TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT Installation Instructions...
- Page 27 Installation Instructions TIL1X2PT / TIL1X3PT / TIL1X4PT / TILVABPT...
-
Page 28: Installation Instructions
F +31 (0) 495 580 845 Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 8800-003148 Rev01 18-24 Shan Mei Street 2019 Legrand | AV Fotan, Shatin, Hong Kong www.legrandav.com P 852 2145 4099 09/19 F 852 2145 4477...
