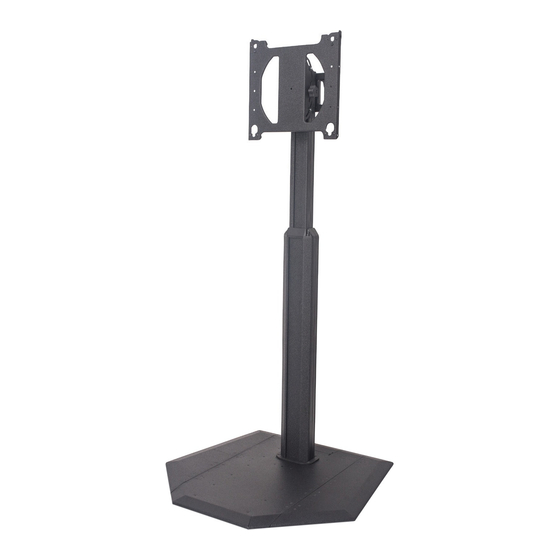

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Portable Flat Panel Stand Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description PRSU...
-
Page 2: Important Safety Instructions
Do not use this mounting system outdoors. contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand WARNING: RISK OF SERIOUS INJURY OR DEATH! - Page 3 Installation Instructions PRSU DIMENSIONS WEIGHT CAPACITY: 200 LBS (90.7 KG) DIMENSIONS: INCHES [MILLIMETERS]...
-
Page 4: Tools Required For Installation
PRSU Installation Instructions LEGEND Tighten Fastener Phillips Screwdriver Apretar elemento de fijación Destornillador Phillips Befestigungsteil festziehen Kreuzschlitzschraubendreher Apertar fixador Chave de fendas Phillips Serrare il fissaggio Cacciavite a stella Bevestiging vastdraaien Kruiskopschroevendraaier Serrez les fixations Tournevis à pointe cruciforme Loosen Fastener Hex-Head Wrench Aflojar elemento de fijación Llave de cabeza hexagonal... - Page 5 Installation Instructions PRSU ASSEMBLY Determine location for PRSU stand, and place base (A) on floor with folded ends on top. (See Figure 2) Open both sides of the base (A), being careful to keep fingers from hinge areas. (See Figure 1) View of base bottom - folded Column latching handle...
- Page 6 PRSU Installation Instructions Installing Interface Bracket With faceplate facing front of base, line up column with mounting holes in base and lower into place. (See Figure 5) Prepare to adjust height of column by holding both handles, pulling the inner handle and lifting. (See Figure 7) Adjust height of column up or down as required.
- Page 7 Installation Instructions PRSU Attaching Display to Stand Padlock may be WARNING: EXCEEDING MAXIMUM WEIGHT CAPACITY used through MAY LEAD TO SERIOUS PERSONAL INJURY OR latch hole after DAMAGE TO EQUIPMENT! It is the installer’s responsibility flag has been closed. to ensure the total amount of weight placed on the stand does not exceed 200 lbs (90.72 kg).
-
Page 8: Cable Management
PRSU Installation Instructions Adjusting Stand Tilting Display The display can be tilted up to 15 either backward or forward from a straight upright position. Turn knob counterclockwise on side of head assembly to loosen the tilt. (See Figure 10) Cable management flaps - located on both sides of... - Page 9 Installation Instructions PRSU Prepare to lower faceplate by lifting it slightly and pulling the inner handle on back of faceplate. (See Figure 13) Locking handle [UNLOCKED] Lower faceplate as far as column allows. Release the inner handle to lock column in place. Locking handle [LOCKED] [column not shown] Figure 15...
- Page 10 PRSU Installation Instructions Fold up sides of the base, being careful to keep fingers from between sides and center base. (See Figure 17) View of base bottom - folded Carry base at this slot unlock unlock Fold lock tab Figure 17 Push straight in on each of the fold lock tabs to lock each side of the base in the folded position.
- Page 11 Installation Instructions PRSU...
- Page 12 P +31 (0) 495 580 852 F +31 (0) 495 580 845 Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 8800-002993 Rev01 18-24 Shan Mei Street 2019 Legrand Fotan, Shatin, Hong Kong www.legrandav.com P 852 2145 4099 04/19 F 852 2145 4477...
