Floor to Ceiling Cable Mount
Portuguese Product Description
Spanish Product Description
German Product Description
Italian Product Description
Dutch Product Description
French Product Description
FCS1U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHIEF FCS1U and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND CHIEF FCS1U

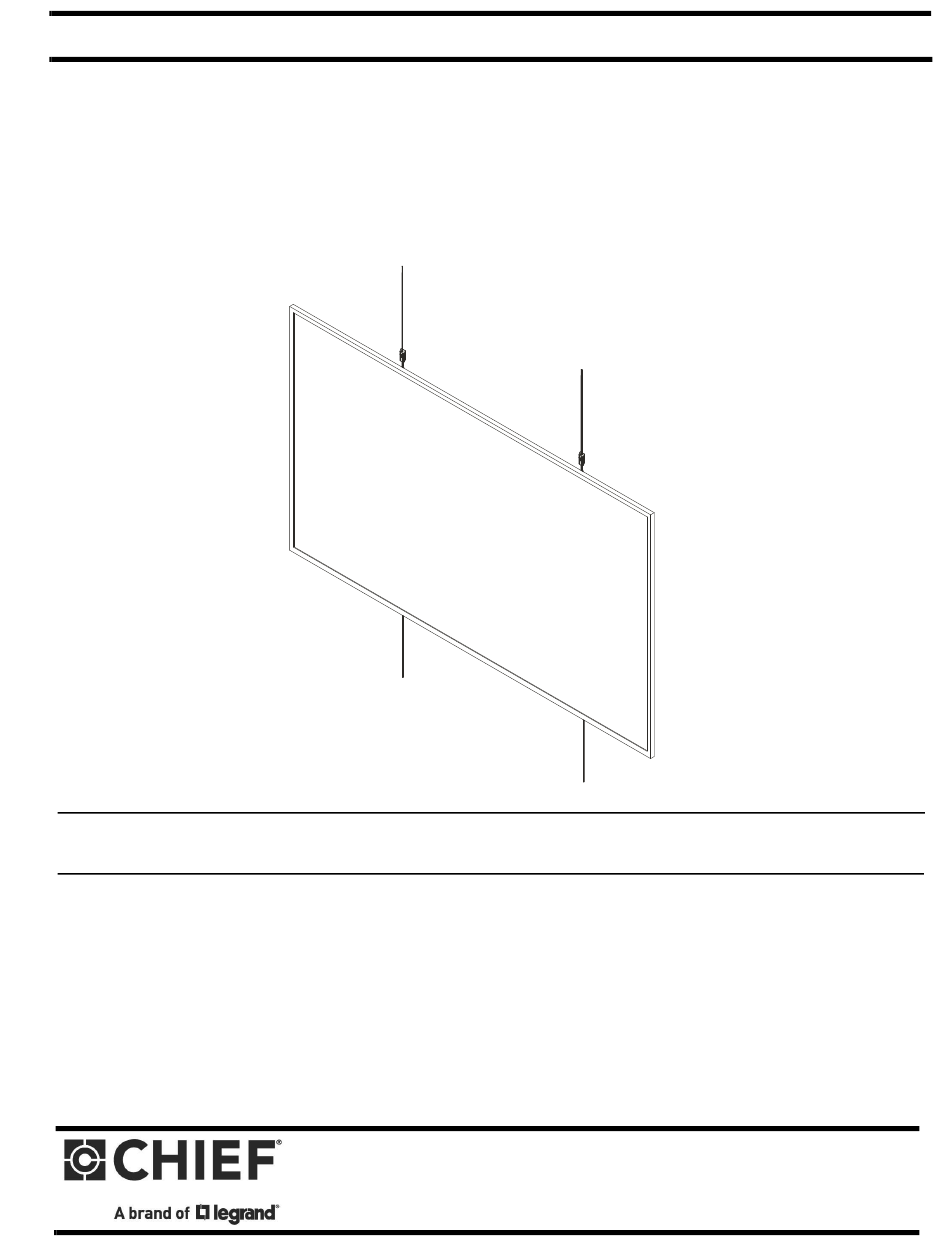

  • Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Floor to Ceiling Cable Mount Spanish Product Description German Product Description Portuguese Product Description...
  • Page 2: Important Safety Instructions

    Return the mounting system to a service center for product. The information contained in this document is subject examination and repair. to change without notice or obligation of any kind. Legrand makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand WARNING: Do not use this mounting system outdoors.
  • Page 3: Tools Required For Installation

    Installation Instructions FCS1U DIMENSIONS 59.69 2.35 33.65 1.32 SLIDE LOCK HANDLE ATTACHMENT POINTS FOR PACFCB SECOND DISPLAY ACCESSORY 457.20 18.00 14.00 28.8 21.00 REFERENCE 5.03 14.00 24.55 PLUMB 25.40 ADJUSTMENT 1.00 FOR USE WITH PSBUB DETAIL A INCLUDED. SEE INSTALLATION SCALE 1 : 4 MANUAL AND CUSTOMER PRINT FOR THE PSBUB DETAILS...
  • Page 4 FCS1U Installation Instructions PARTS M (1) - Display interface + hardware (See interface parts list on page 7) A (2) [Outer frame] B (1) [Main assembly] C (6) E (4) D (4) [Connecting link] [Eye lag] [Cable lock] G (2) F (4) H (10) [Concrete anchor]...
  • Page 5 Installation Instructions FCS1U PARTS - DISPLAY INTERFACE Hardware Kit Bag A Bag B Bag C MC (4) MB (4) MA (4) M4 x 12mm M4 x 25mm M4 x 20mm Bag D Bag F Bag E MF (4) MD (4) ME (4) M5 x 25mm M5 x 12mm...
  • Page 6: Assembly And Installation

    FCS1U Installation Instructions Assembly And Installation Using claw portion of hammer, set each anchor (F) by pulling it out of hole approximately 1/4" (6.4mm). (See Figure 1) Installing Support Cables Hang turnbuckle (G) or connecting link (C) through the hole on each concrete anchor (F).
  • Page 7 Installation Instructions FCS1U Solid Concrete Floor WARNING: Anchors must be installed into structurally sound solid concrete with a minimum thickness of 4" (101.6mm) or greater. Installation into hollow concrete block, mortar, or concrete that exhibits cracking, spalling, or other defects may result in failure of anchor and serious personal 5/32"...
  • Page 8: Display Installation

    FCS1U Installation Instructions Display Installation Use four connecting links (C) and cable locks (D) to secure cables (J) to two outer frames (A). (See Figure 6) NOTE: If connecting turnbuckles (G) behind display, connect WARNING: turnbuckles into top holes instead of connecting links Exceeding the weight capacity can result in (C).
  • Page 9 Installation Instructions FCS1U Select correct screws, nesting spacers (if necessary) and universal washers (if required) from the hardware bag (QA- QM) and attach brackets to back of screen. (See Figure 10) IMPORTANT ! : The M8 screws do NOT require a washer.
  • Page 10 FCS1U Installation Instructions 11. Determine and mark the horizontal center position between the Left and Right TOP mounting holes in display. (See Figure 11) 12. Determine and mark the horizontal center position between the Left and Right BOTTOM mounting holes in display. (See Figure 11) 13.
  • Page 11 Installation Instructions FCS1U 18. Lift display onto mount, carefully placing mounting buttons into mounting locations on faceplate. (See Figure 13) 19. Slide locking plate over mounting buttons to secure display to mount. (See Figure 13) Figure 13 20. Tighten two turnbuckles until cables are tight and mount is level.
  • Page 12: Installation Instructions

    Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 8800-003131 Rev01 2019 Legrand Asia Pacific A Office No. 918 on 9/F, Shatin Galleria 18-24 Shan Mei Street www.legrandav.com Fotan, Shatin, Hong Kong...
