- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

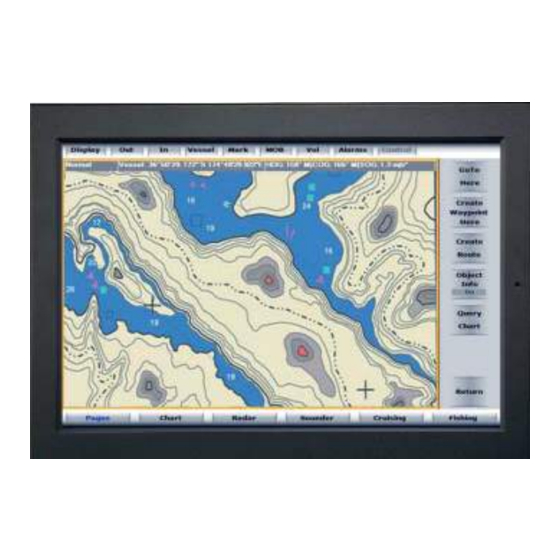

- Page 2 User Manual 24” High Resolution LCD ID-E24Aw Aluminum front bezel ID-E24AwN Front NEMA4 / IP65 ID-E24Pw Universal Mounting Open Frame...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > ID-E24Aw / ID-E24AwN Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > ID-E24Pw Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 6 < Part 1 > < 1.1 > Package Content - ID-E24Aw / ID-E24AwN 24” High Res LCD display X 1 ID-E24Aw / ID-E24AwN 6ft VGA cable X 1 6ft DVI-D cable X 1 6ft HDMI cable X 1 6ft RCA cable X 1...
- Page 7 < 1.2 > Structure Diagram - ID-E24Aw / ID-E24AwN Front view Rear view Rear case LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Audio Audio Power HDMI DVI-D S-Video R C A...
- Page 8 < 1.2 > Dimension - ID-E24Aw / ID-E24AwN Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.rackmountmart.com...
- Page 9 < 1.3 > Panel Mount Installation - ID-E24Aw / ID-E24AwN M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■ Adjust the LCD panel with 8 x M4*50mm screws and fi x it on the surface.
- Page 10 < 1.3 > VESA mount Installation - ID-E24Aw / ID-E24AwN M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided www.rackmountmart.com...
-
Page 11: Package Content
< Part 2 > < 2.1 > Package Content - ID-E24Pw 24” High Res LCD display X 1 ID-E24Pw 6ft VGA cable X 1 6ft DVI-D cable X 1 6ft HDMI cable X 1 6ft RCA cable X 1 6ft S-Video cable X 1 Power cord X 1 Remote controller X 1 Mounting hardware X 1 pack... - Page 12 < 2.2 > Structure Diagram - ID-E24Pw Front view Rear case Rear view LCD panel Audio speaker, pair Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Audio Audio Power HDMI DVI-D...
- Page 13 < 2.2 > Dimension - ID-E24Pw Front View Side View UNIT : mm Rear View 1mm = 0.03937 inch Bottom View www.rackmountmart.com...
- Page 14 < 2.3 > Installation - ID-E24Pw ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided www.rackmountmart.com...
-
Page 15: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations Mechanical ID-E24Aw/ID-E24AwN ID-E24Pw Design Front Panel Black, RAL 9005 Rear Casing Dark grey, RAL 7037 Dark grey, RAL 7037 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount... - Page 16 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical ID-E24Aw/ID-E24AwN ID-E24Pw Specifi cation Product ( W x D x H ) 620 x 87 x 426 mm 617 x 81 x 423 mm 24.4 x 3.4 x 16.8 inch 24.3 x 3.2 x 16.7 inch...
-
Page 17: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 18 < 3.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound...
-
Page 19: Remote Controller
< 3.3 > Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. -
Page 20: Part 4 > Options
< Part 4 > Options < 4.1 > Option Table Basic Option Aw / AwN SDI *** Touchscreen MC multi-display control *** MIL-type / lockable connector The user can only select either SDI or MC inputs. P.15 www.rackmountmart.com... - Page 21 < 4.2 > Options : 3G / HD / SD-SDI input Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, we provide a SDI input module without using additional space or power.
- Page 22 < 4.3 > Options : MC More control is always good. Especially when it is necessary and easy. Synergy Global Technology provides MC solution to control ( Multi-display Controller ) the OSD of various Industrial LCD displays up to 64 units.
- Page 23 < 4.4 > Options : Touchscreen & driver 24" USB Touchscreen Specification Model 5-Wire Resistive Technology Single Touch Point Stylus or Finger Method ≤ 50g / Stylus=R0.8 Activation Force 10 million touches Durability 15 ms Response Time 80% ± 3% Optical Transmittance Surface Hardness 8% ±...
- Page 24 < 4.5 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - DTL - 26482 DC Power MIL - type ( Male ) Connector (MS3470W8-33P) MIL - DTL - 26482 ( Male ) (MS3470W14-15P) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
- Page 25 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2012 Synergy Global Technology Inc. All rights reserved. P.21 www.rackmountmart.com...
