Summary of Contents for Synergy Global Technology ID-HE21Aw

  • Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

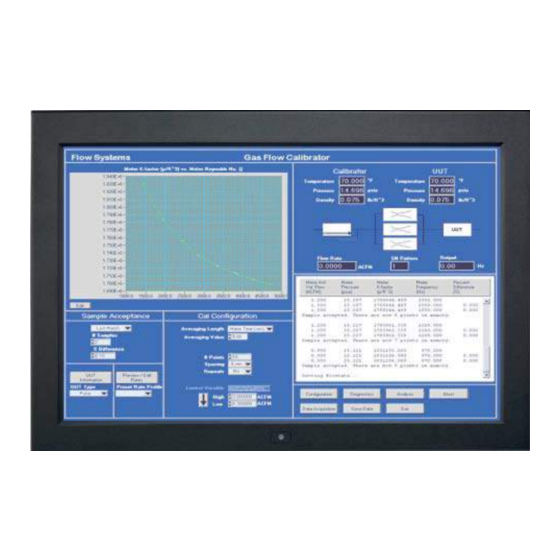

  • Page 2 User Manual 21.5” Full HD High Brightness LCD ID-HE21Aw Front NEMA4 / IP65 ID-HE21Pw Universal Mounting Open Frame...
  • Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part. 1 > ID-HE21Aw Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > ID-HE21Pw Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation Specifi...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 6 < Part 1 > 21" High Brightness LCD Display < 1.1 > Package Content - ID-HE21Aw ID-HE21Aw 21" High Brightness LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack...

  • Page 7: Structure Diagram & Dimension

    < 1.2 > Structure Diagram - ID-HE21Aw Front view ID-HE21Aw Rear view Rear case LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Model (W x D x H) Weight 577.8 x 59.1 x 369.3 mm 6.9 kg...

  • Page 8: Part. 1 > Id-He21Aw

    < 1.2 > Dimension - ID-HE21Aw 21" High Brightness LCD Display Front View Side View ID-HE21Aw Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.rackmountmart.com...

  • Page 9: Mounting Hardware & Installation

    < 1.3 > Panel Mount Installation - ID-HE21Aw M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■ Adjust the LCD panel with 8 x M4*50mm screws and fi x it on the surface.
  • Page 10 < 1.3 > VESA mount Installation - ID-HE21Aw M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided www.rackmountmart.com...

  • Page 11: Package Content

    < Part 2 > < 2.1 > Package Content - ID-HE21Pw ID-HE21Pw 21.5" High Brightness LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D HDMI AV3.0 upgrade I/O with advanced features Audio Power S-Video...

  • Page 12: Structure Diagram & Dimension

    < 2.2 > Structure Diagram - ID-HE21Pw 21” High Brightness LCD Display Front view ID-HE21Pw Rear view Rear case LCD panel Audio speaker, pair Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Model (W x D x H)

  • Page 13: Part. 2 > Id-He21Pw

    < 2.2 > Dimension - ID-HE21Pw 21” High Brightness LCD Display Front View Side View ID-HE21Pw UNIT : mm Rear View 1mm = 0.03937 inch Bottom View www.rackmountmart.com...
  • Page 14 < 2.3 > Installation - ID-HE21Pw ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided www.rackmountmart.com...

  • Page 15: Product Specifi Cations

    < Part 3 > < 3.1 > Product Specifi cations 21” High Brightness LCD Display Mechanical ID-HE21Aw ID-HE21Pw Design Front Panel Black, RAL 9005 Rear Casing Dark grey, RAL 7037 Dark grey, RAL 7037 VESA Mounting 100 x 100mm 100 x 100mm...
  • Page 16 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical ID-HE21Aw ID-HE21Pw Specifi cation Product ( W x D x H ) 577.8 x 59.1 x 369.3 mm 574.8 x 52.6 x 366.3 mm 22.7 x 2.3 x 14.5 inch 22.6 x 2.1 x 14.4 inch...

  • Page 17: On-Screen Display Operation ( Osd )

    < 3.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...
  • Page 18 < 3.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound...

  • Page 19: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 3.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 3.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 20 < 3.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...

  • Page 21: < Part 4 > Options

    < Part 4 > Options < 4.1 > Option Table Basic Options SDI *** S-Video * + Composite ( BNC ) Audio Touchscreen MC multi-display control DC Power MIL-type / lockable connector TV ( Analog ) * Auto / switch dimming About SDI The AD board comes standard with HDMI, DVI-D, VGA, S-Video, BNC, audio inputs and remote controller.
  • Page 22 < 4.2 > Options : 3G / HD / SD-SDI input 21” High Brightness LCD Display Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, we provide a SDI input module without using additional space or power.
  • Page 23 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Synergy Global Technology provides MC solution to control the OSD of various Industrial LCD displays up to 64 units. The RS-232C is used for the communication between the PC and the fi...

  • Page 24: Av3.0 Upgrade : S-Video + Bnc & Audio

    < 4.4 > AV3.0 Upgrade Options : 21” High Brightness LCD Display - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Audio Power S-Video DVI-D HDMI out - in - in...
  • Page 25 How to Use Remote Controller POWER Switches on or off the TV MUTE Turn on or off the speaker Switch to AV mode Select channels. For channel numbers 10 and above, 0- 9 enter the second digit within two seconds. V + / - Increase or decrease the speaker volume CH + / -...
  • Page 26 < 4.5 > Options : Touchscreen & driver 21.5" USB Touchscreen Specifi cation Model Resistive Capacitive 2-point Technology 5-Wire Resistive Capacitive Projected Capacitive Touch Point Single Single Dual Method Stylus or Finger Finger Finger or Capacitive Stylus Activation Force ≤ 50g / Stylus=R0.8 ≤...
  • Page 27 < 4.6 > Options : DC Power Model Input rating Input voltage: 24-Volt 48-Volt Input range: 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA - Full load 4880 mA 2442 mA Output rating Output voltage: 12-Volt 12-Volt...
  • Page 28 < 4.7 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MIL - DTL - 26482 DC Power Connector ( Male ) (MS3470W8-33P) MIL - DTL - 26482 ( Male ) (MS3470W14-15P) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...

  • Page 29: Tv ( Analog )

    < 4.8 > Options : TV ( Analog ) Audio Power S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and remote controller.
  • Page 30 How to Use Remote Controller 21” High Brightness LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
  • Page 31 < 4.9 > Options : Auto Dimming Light sensor on OP model Light sensor on AP model ( 66cm from AD board to sensor end ) light sensor will be installed on the display front panel when auto dimming is ON in OSD menu.
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Synergy Global Technology Inc. All rights reserved.
