- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

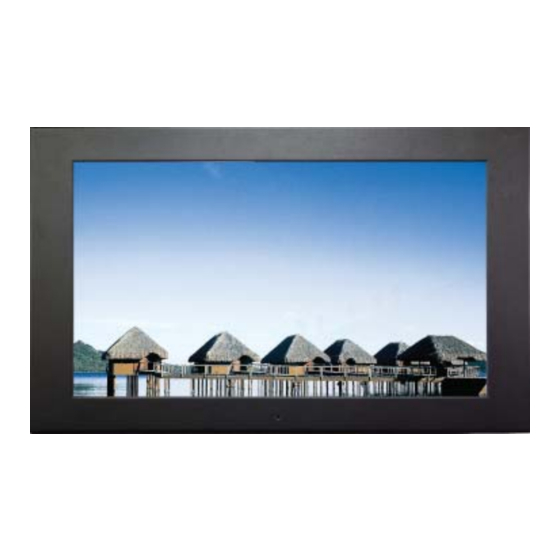

- Page 2 User Manual 32” Widescreen LCD ID-32Aw Aluminum front bezel ID-32AwN Front NEMA4 / IP65 ID-32Pw Universal Mounting Open Frame www.RackmountMart.com...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > ID-32Aw / ID-32AwN Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > ID-32Pw Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 6 < Part 1 > < 1.1 > Package Content - ID-32Aw / ID-32AwN 32” Widescreen LCD Display ID-32Aw / ID-32AwN 32” Widescreen LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Wall-mount bracket set X 1...
- Page 7 < 1.2 > Structure Diagram - ID-32Aw / ID-32AwN Front view Bottom view Rear case Rear view LCD panel 6mm aluminum front bazel LCD membrane Wall-mount bracket Audio speaker, pair Remote sensor Product Dimension Model (W x D x H) Weight 850 x 135.3 x 520 mm...
- Page 8 < 1.2 > Dimension - ID-32Aw / ID-32AwN 32” Widescreen LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
- Page 9 < 1.3 > Wall-mount Installation - ID-32Aw / ID-32AwN Front wall-mount bracket Step ■ Install left & right front wall-mount brackets at the rear side of the LCD shown above. ■ M5 screw x 8 pcs included ( Left & right side ).
- Page 10 < 1.3 > VESA Installation - ID-32Aw / ID-32AwN M6 screw VESA mount ( 100*100mm ) ■ Hardware and M6*8 pcs for VESA mount are not provided www.RackmountMart.com...
- Page 11 < Part 2 > < 2.1 > Package Content - ID-32Pw ID-32Pw 32” Widescreen LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Video out HDMI S-Video PC Audio Video 1 Video 2 in out www.RackmountMart.com...
- Page 12 32” Widescreen LCD Display < 2.2 > Structure Diagram - ID-32Pw Front view ID-32Pw Bottom view Rear case LCD panel Rear view Universal open frame mounting LCD membrane Audio speaker, pair Product Dimension Model (W x D x H) Weight 836 x 117.3 x 510 mm 16.9 kg ID-32Pw...
- Page 13 < 2.3 > Dimension - ID-32Pw Front View Side View ID-32Pw Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
- Page 14 < 2.3 > Installation - ID-32Pw 32” Widescreen LCD Display ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M6 screw ■ Hardware and M6*8 pcs for VESA mount are not provided www.RackmountMart.com...
-
Page 15: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations Mechanical ID-32Aw / ID-32AwN ID-32Pw Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount... - Page 16 -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random ID-32Aw ID-32AwN ID-32Pw Physical Specifi cation Product ( W x D x H ) 850 x 135.3 x 520 850 x 135.3 x 520 836 x 117.3 x 510...
-
Page 17: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 18 32” Widescreen LCD Display < 3.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance :...
-
Page 19: Remote Controller ( Rc-2 )
< 3.3 > Remote Controller ( RM-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. -
Page 20: Part. 4 > Options
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2012 Synergy Global Technology Inc. All rights reserved. P.15 www.RackmountMart.com...
