BASIC CAR SETTINGS
SUSPENSION TRAVEL

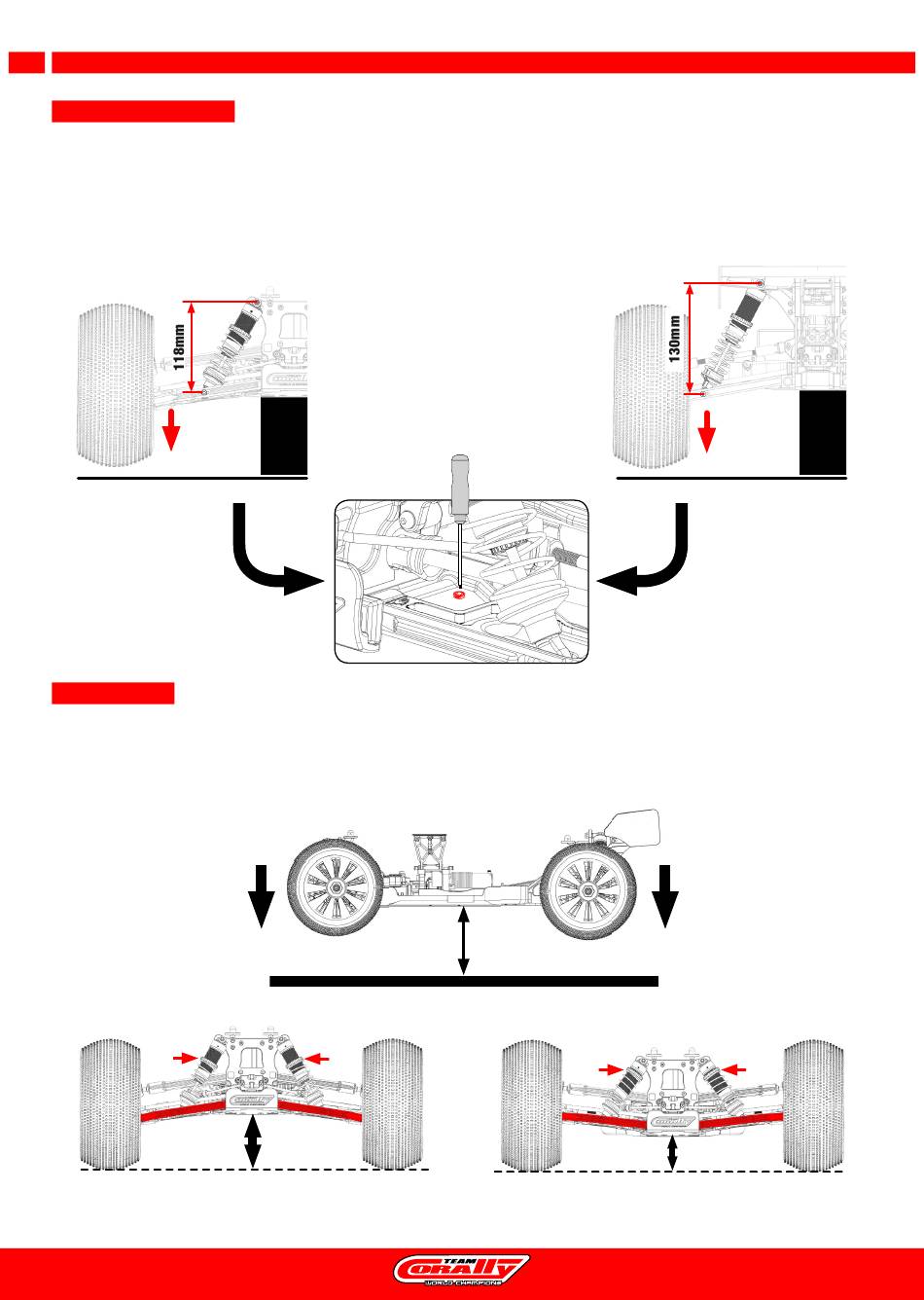

It is important to properly adjust the travel of the suspension arm to prevent the shock absorber from reaching the end of its travel
and damaging it.
• Place the chassis on a block in order to release the suspension to the maximum.
• Measure the distance between the 2 fixing points of the shock absorber.
• If necessary adjust the FR & RE suspension travel by screwing the set screw on the FR & RE lower suspension arm.
FRONT
Release the
suspension
RIDE HEIGHT
To achieve the correct ground clearance setting, follow the instructions below.
• Lift the car by ±30cm and drop the car on the floor.
• The front and rear suspension arms should be ± parallel to the ground. (Neutral setup)
• Adjust the tension of the shock absorber spring according to the type of terrain.
FOR BUMPY GROUND
30cm
FOR FLAT GROUND / ROAD
REAR
Release the
suspension
