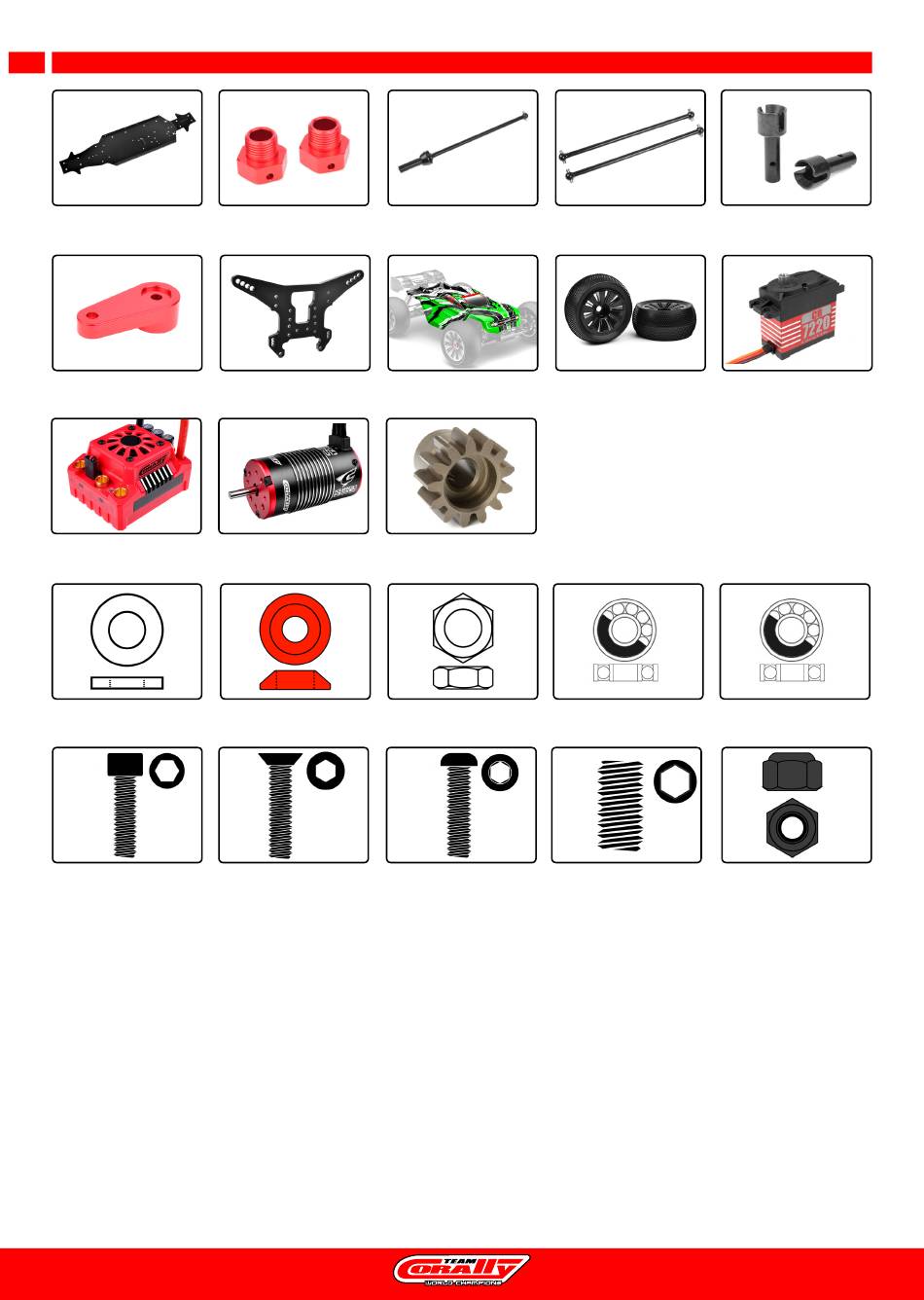

SPARE PARTS
C-00180-328 C-00180-329
Chassis - Long - Truggy XP RTR Wheel Hex Adapter - Wide RTR
- Aluminium - 1 pc - Aluminium - 2 pcs
C-00180-372 C-00180-373
Servo Arm - Steering - Alu - Shock Tower - MT - Truggy -
1 pc 5mm - Aluminium - Rear - 1 pc
C-54011 C-54055
Electric Motor – Kuron 825 -
Speed Controller - TOROX 185 -
4-Pole - 2050 KV – Brushless
Brushless - 2-6S
- Sensorless
C-3201-60 C-31205
Steel Shim - M6 - 10 pcs Aluminium Washer - for M3 Flat
Head Screws - Red - 10 pcs
SOCKET HEAD SCREWS - 10 PCS FLAT HEAD SCREWS - 10 PCS
C-3001-25-10 M2.5x10
C-3002-30-08
C-3001-25-20 M2.5x20
C-3002-30-10
C-3001-30-06 M3x6
C-3002-40-10
C-3001-30-08 M3x8
C-3002-40-12
C-3001-30-10 M3x10
C-3002-40-14
C-3001-30-12 M3x12
C-3002-40-16
C-3001-30-14 M3x14
C-3002-40-18
C-3001-30-16 M3x16
C-3001-30-20 M3x20
C-3001-30-25 M3x25
C-3001-30-30 M3x30
C-3001-40-08 M4x8
C-00180-340
CVD Drive Shaft - Long - Front
- 1 pc
C-00180-384
Polycarbonate Body - Shogun
XP 6S - Painted - Cut - 1 pc
C-72713
M1.0 Pinion - Hardened Steel -
13 Teeth - Shaft Dia. 5mm
C-3104-40
Steel Nut - Low Profile - M4 -
10 pcs
BUTTON HEAD SCREWS - 10 PCS
M3x8 C-3003-30-06 M3x6
M3x10 C-3003-30-10 M3x10
M4X10 C-3003-30-12 M3x12
M4x12 C-3003-30-16 M3x16
M4x14 C-3003-40-12 M4x12
M4x16
M4x18
C-00180-367 C-00180-370
Dogbones - Long - Rear - Steel Drive Axle - Rear - Steel - 2 pcs
- 2 pcs
C-00180-386 C-52021
Digital Servo - CR-7220-MG
Off-Road 1/8 Truggy Tires -
- Low Voltage - Core Motor -
Glued on Black Rims - 1 pair
Metal Gear – 20 Kg Torque
C-3611-4-06-10-03 C-3611-4-08-16-05
Ball Bearing - Abec 3 Ball Bearing - Abec 3
6x10x3mm - 2 pcs 8x16x5mm - 2 pcs
SET SCREWS - 10 PCS NYLSTOP NUT - 10 PCS
C-3004-30-03 M3x3 C-31001-25
C-3004-30-05 M3x5 C-31001-30
C-3004-40-04 M4x4 C-31001-40
M2.5
M3
M4
