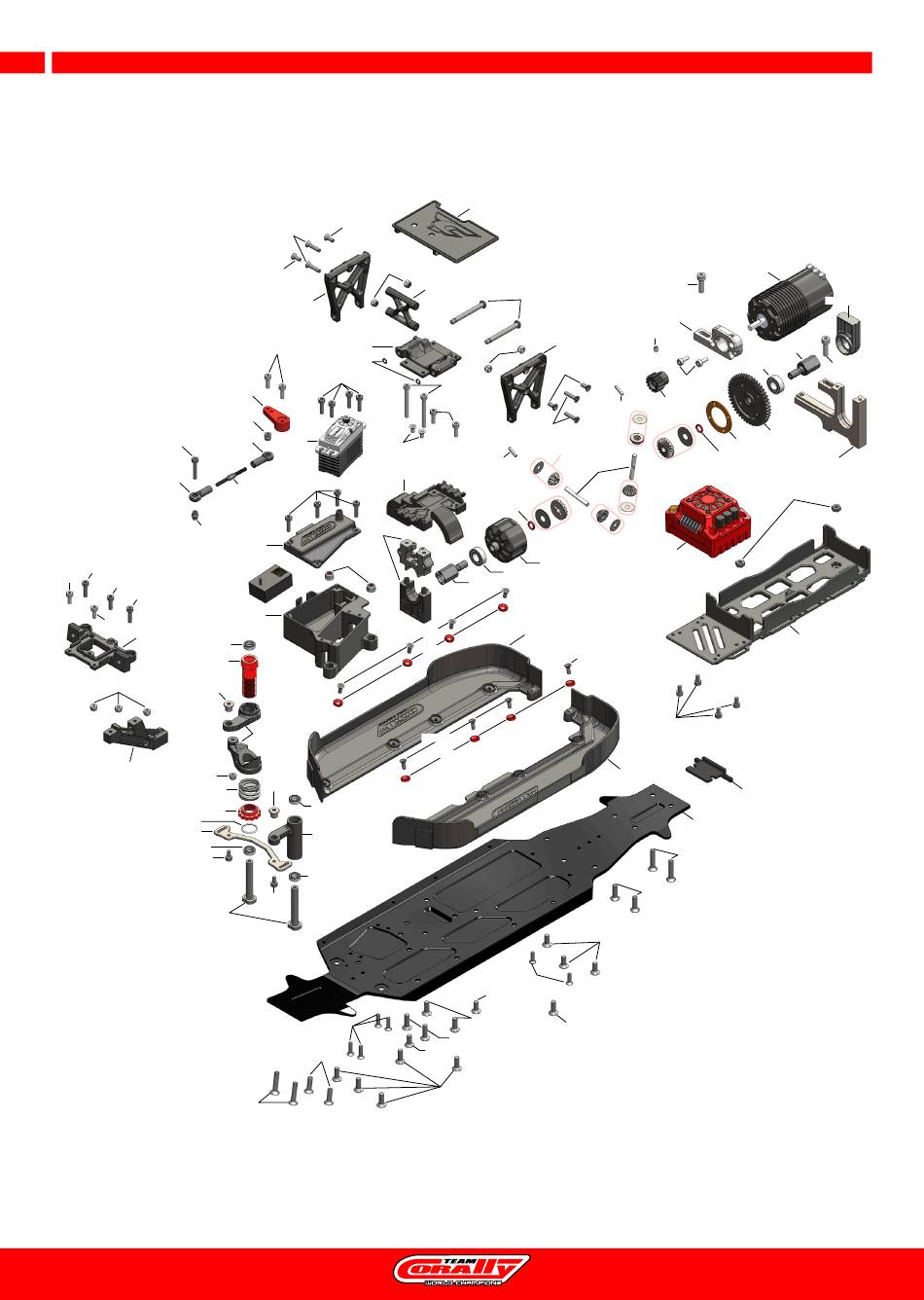

CHASSIS - EXPLODED VIEW
C-00180-372
C-00180-171
C-00180-044
M3x18
C-00180-044
C-00180-149
C-00180-013
M3x12
M3x8
M3x10
M3x12
C-00180-013
M3x8
C-00180-017
C-3611-2-06-10-03
C-00180-145
Nylstop Nut•M3
C-00180-206
C-00180-102
Nylstop Nut•M3
C-00180-216
C-00180-145
C-00180-191
C-00180-175
C-3611-2-06-10-03
M3x6
C-00180-147
F/H•M4x20
F/H•M3x8
F/H•M3x14
Nylstop Nut•M3
F/H•M3x8
C-00180-301
C-00180-301
M3x10
C-00180-305
M3x12
C-52021
F/H•M3x6
C-00180-015
M3x12
C-00180-129
C-00180-018
Nylstop Nut•M3
F/H•M3x8
C-00180-036
C-00180-206
C-3611-2-06-10-03
C-00180-036
C-3611-2-06-10-03
M3x6
F/H•M3x12
F/H•M4x14
C-00180-301
C-00180-301
C-00180-305
C-00180-301
Nylstop Nut•M3
F/H•M3x8
M3x30
M3x10
F/H•M3x14
C-00180-179 (set)
C-00180-205
C-00180-184
C-00180-188
C-00180-090
C-3611-4-08-16-05
C-00180-154-1
C-00180-242
C-31205
F/H•M3x8
F/H•M3x8
C-31205
F/H•M3x10
F/H•M4x10
F/H•M4x12
F/H•M4x14
F/H•M4x14 (2)
F/H•M4x10
F/H•M4x12
C-54055
M4x12
C-00180-177
DIN916•M4x4
C-00180-154-1
C-3611-4-08-16-05
M3x8
C-72713
C-00180-205
C-00180-188
C-00180-188
C-3104-40
C-54011
M3x6
C-00180-242
C-00180-032
C-00180-328
F/H•M4x20
F/H•M4x14
F/H•M4x10
C-00180-023
M4x12
C-00180-091
C-00180-176
C-00180-004
