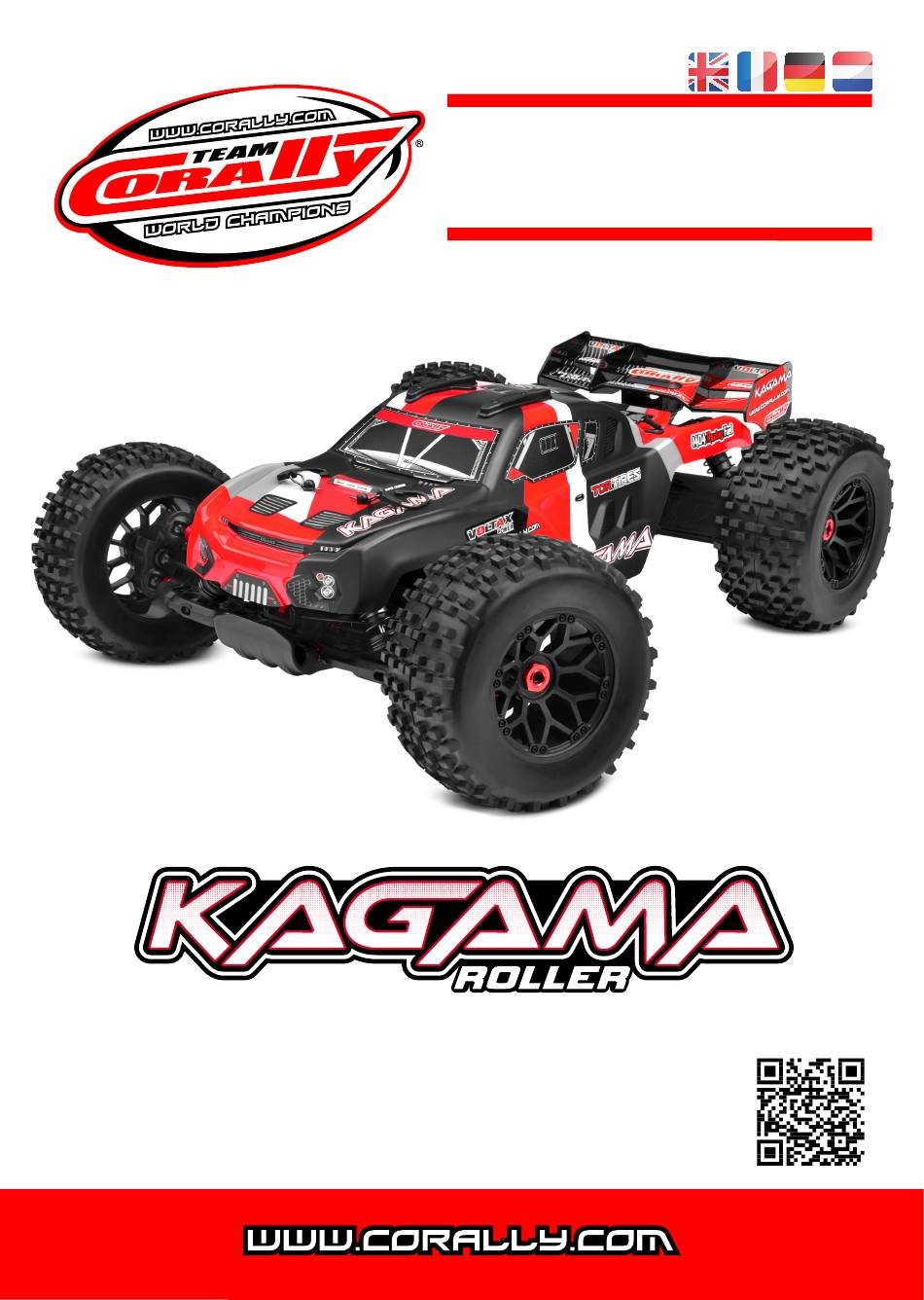

Page 1 LANGUAGES INSTRUCTION MANUAL Check that you have the latest version of this manual before each use. Contrôlez avant chaque utilisation de ce manuel si vous en avez le dernière version. Überprüfen Sie vor jedem Gebrauch dieses Handbuchs, ob Sie die neueste Version haben. Controleer voor elk gebruik van deze handleiding of u over de laatste versie beschikt.
Page 2: Read First
All Team Corally models guarantee a high quality of manufacture and performance that guarantees you a high satisfaction of use and services provided by the Team Corally. Always take the time to read the instructions carefully in order to follow all the procedures to use your RC model safely for you and for other people and property in the area.
Page 3: Use Precautions
Take all necessary precautions before, during and after using your model. You are responsible for the safe assembly, mainte- nance and use of your model. In case of any questions, contact your local reseller or contact Team Corally support for assistance. LIPO BATTERY SAFETY PRECAUTIONS •...
Page 4 He must send the defective goods to our local rep- resentatives or directly to Team Corally / JSP Group Intl bvba, Geelseweg 80, 2250 Olen, Belgium at his own risk and cost.
Page 5: Kit Content
Téléchargez le guide de démarrage rapide en Français sur le site • Laden Sie die Kurzanleitung auf Deutsch von der Website herunter • Download de Nederlandse snelstartgids op www.corally.com DOWNLOAD - TELECHARGER - DOWNLOAD - DOWNLOAD - Check the corally.com website download section and make sure you have the latest version of this manual (see date on the cover of the manual) - Vistez le site web corally.com section téléchargement et controlez que vous avez la dernière version de ce manuel (voir date sur la couverture du manuel) - Überprüfen Sie die Website corally.com im Download-Bereich und stellen Sie sicher, dass Sie die neueste Version dieses Handbuchs haben...
Page 6: Car Components
Téléchargez le guide de démarrage rapide en Français sur le site • Laden Sie die Kurzanleitung auf Deutsch von der Website herunter • Download de Nederlandse snelstartgids op www.corally.com CAR COMPONENTS Front Differential Front Shock Absorber Anti-Roll Bar Suspension Arm Steering Link Steering Servo Battery compartment...
Page 7 Téléchargez le guide de démarrage rapide en Français sur le site • Laden Sie die Kurzanleitung auf Deutsch von der Website herunter • Download de Nederlandse snelstartgids op www.corally.com QUICK START GUIDE ( General for all models) READ THE INSTRUCTIONS CHARGE THE BATTERY INSTALL 4x AA BATTERY - 1.5V CHARGER...
Page 8: Install Electronics
INSTALL ELECTRONICS (not included) INSTALLER L’ÉLECTRONIQUE (non inclus) • ELEKTRONIK INSTALLIEREN (nicht enthalten) • ELEKTRONICA INSTALLEREN (niet meegeleverd) SERVO INSTALLATION M3x18mm M3x10mm (2) Recommended Servo : Digital Servo - CS-5226 - High Voltage M3x12mm (4) #C-52001 ESC INSTALLATION Recommended ESC : Speed Controller - TOROX 185 - Brushless - 2-6S #C-54011...
Page 9 INSTALL ELECTRONICS (not included) INSTALLER L’ÉLECTRONIQUE (non inclus) • ELEKTRONIK INSTALLIEREN (nicht enthalten) • ELEKTRONICA INSTALLEREN (niet meegeleverd) MOTOR INSTALLATION IMPORTANT : - See also the section : “GEAR MESH ADJUSTMENT” - Voyez aussi la section : “AJUSTEMENT DE L’ENTRE-DENTS” - Siehe auch den Abschnitt :”...
Page 10: Gear Ratio
GEAR RATIO - RAPPORT DE TRANSMISSION - GETRIEBEVERHÄLTNIS- VERSNELLINGSVERHOUDING MOTOR PINION MOD1.0 - PIGNON MOTEUR MOD1.0 - MOTORRITZEL MOD1.0 - MOTOR PINION MOD1.0 High-performance pinions gear, manufactured from special steel for toughness and durability with precise tolerances and assures unparalleled concentricity. Created on a special gear machine, all pinions feature ultra-precise tooth shaping and ultra-true running for vibration-free operation.
Page 11 GEAR MESH ADJUSTMENT - AJUSTEMENT DE L’ENGRENAGE - GETRIEBEVERSTELLUNG - TANDWIELAFSTELLING If the gear mesh is not correct, you wear out the spur gear prematurely, the transmission will make noise, give unnecessary load on the motor (higher consumption, heating of the transmission).
Page 12 SHOCK ABSORBER MAINTENANCE - ENTRETIEN DES AMORTISSEURS - STOSSDÄMPFERWARTUNG - ONDERHOUD SCHOKDEMPERS It may be necessary to replace the silicone oil in the shock absorbers every 40 runs (depends on how you drive and the type of terrain you drive on). Il peut être nécessaire de remplacer l’huile silicone des amortisseurs toutes les 40 courses (cela dépend de votre conduite et du type de terrain sur lequel vous roulez).
Page 13: Shock Absorber
SHOCK ABSORBER - AMORTISSEUR - STOSSDÄMPFER - SCHOKDEMPER • Do not overtighten the Shock Cap to prevent deformation of the silicone Shock Bladder. • Ne serrez pas trop le capuchon de l’amortisseur pour éviter la déformation de la membrane en silicone. •...
Page 14: Differential Maintenance
DIFFERENTIAL MAINTENANCE - ENTRETIEN DU DIFFÉRENTIEL - DIFFERENZIALWARTUNG - DIFFERENTIEEL ONDERHOUD It may be necessary to replace the silicone oil every 50 runs (depends on how you drive and the type of terrain you drive on). To remove the FR&RE differentials, follow the steps below. Il peut être nécessaire de remplacer l’huile silicone toutes les 50 courses (cela dépend de votre conduite et du type de terrain sur lequel vous roulez).
Page 15 REMOVING THE CENTRE DIFFERENTIAL- DEMONTER LE DIFF CENTRAL - AUSBAU DES MITTELDIFFERENTIALS - VERWIJDEREN VAN HET MIDDENDIFFERENTIEEL It may be necessary to replace the silicone oil every 50 runs (depends on how you drive and the type of terrain you drive on). To remove the centre differential, follow the steps below.
Page 16: Front & Rear Differential
FRONT & REAR DIFFERENTIAL - DIFFÉRENTIEL AVANT ET ARRIÈRE - DIFFERENTIAL VORNE UND HINTEN - VOOR & ACHTER DIFFERENTIEEL C-3002-30-12 (4pcs) C-00180-153-X C-00180-205 C-3611-3-08-16-05 C-00180-179 (set) C-00180-182 C-00180-184 C-00180-178 C-00180-205 C-00180-183 C-00180-182 OPTION C-3611-3-08-16-05 Aluminium 7075 Hard Anodised Aluminium 7075 Hard Anodised Made in Italy Made in Italy C-00180-153-X...
Page 17 FRONT DRIVE TRAIN - TRAIN AVANT - FRONTANTRIEB - VOORSTE AANDRIJFLIJN C-00180-117 C-00180-329 C-3004-40-04 C-00180-122 C-00180-108-1 (Set) C-00180-123 (2x) C-00180-957 C-00180-207 C-00180-150 C-00180-108-1 C-00180-532 C-3611-3-08-16-05 (2x) C-00180-530 HEX BUTTON HEAD SCREWS C-00180-1068 DIN 7380 - STEEL - 10 PCS C-00180-341 M3x8mm C-3004-30-05 (x2) #C-3003-30-08...
Page 18 REAR DRIVE TRAIN - TRAIN ARRIÈRE - HINTERACHSANTRIEB - ACHTERSTE AANDRIJFLIJN C-00180-005-2 (Set) C-00180-226-B C-3101-30 C-00180-005-2 (Set) C-00180-1065 C-00180-005-2 (Set) C-3101-30 (x4) C-3101-40 C-00180-658 C-3213-30-5 (x2) C-3101-30 C-00180-122 DIN916•M4x4 C-00180-005-2 (Set) C-3101-40 C-00180-148 C-00180-293 C-00180-329 C-00180-539 C-00180-955 C-00180-055 C-3611-3-08-16-05 C-00180-114 C-00180-658 C-00180-553-1 C-3611-3-08-16-05...
Page 19 CHASSIS CENTRE Electronics not included C-00180-953 (set) C-00180-959 C-00180-834 C-00180-959 C-54055 C-00180-716 (set) C-3001-40-14 C-00180-722 C-00180-953 (set) C-3001-40-14 C-00180-177 C-3001-40-10 C-3201-40 M4x4 C-3001-40-10 C-00180-716 (set) C-00180-372 C-72113 C-00180-171 C-00180-013 (set) C-00180-305 (x2) C-00180-640 C-00180-605 C-00180-023 C-00180-149 C-00180-013 (set) C-3101-40 C-00180-129 C-00180-044 (x2) C-00180-615 (set) C-00180-018...
Page 20: Servo-Saver
SERVO-SAVER - SAUVE-SERVO - SERVO-SAVER - SERVO-SAVER C-3611-3-06-10-03 C-00180-145 (set) C-00180-036 (set) C-3101-30 C-00180-216 C-3611-3-06-10-03 (x2) C-00180-191 C-00180-145 (set) C-00180-036 (set) C-3611-3-06-10-03 C-3002-30-18 (x2) C-00180-831 C-3611-3-06-10-03 (x2) C-00180-206 C-00180-147 (x2) OPTION C-3003-30-10 (x2) C-3101-30 (x2) C-00180-964 C-00180-150 (x2) C-00180-266 Servo Saver Steering Arm - 7075 T6 - Hard Anodised - Black - 1 pc...
Page 21: Spare Parts
SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-004-1 C-00180-005-2 C-00180-013 C-00180-018 C-00180-023 Battery Strap - Hook & Loop Wing Mount - Adjustable - Servo Mount - Receiver Box - Centre Diff Bulkhead - Compos- Motor Mount Centre Diff Insert - - 2 pcs Composite - 1 Set Composite - 1 Set...
Page 22 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-220 C-00180-226-B C-00180-230 C-00180-231 C-00180-246 Ball End 5.8mm - for Anti Roll Wing - Composite - 1 pc Wheel Nut - Aluminium - Collar - for Anti-roll Bar - Alu- Anti-Roll Bar - Rear - 2.6mm Bar - Steel - 4 pcs Ribbed - 4 pcs...
Page 23 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-831 C-00180-834 C-00180-871 C-00180-872 C-00180-873 Steering Rack - Dual Stiffener - Centre Roll Cage Foam - Thick- Suspension Arm Mount HD - RE-FR Suspension Arm Mount HD - FR-RE Suspension Arm Mount HD - RE-RE ness 25mm - 1 pc - 8mm - Aluminium - Black - 1 pc - 8mm - Aluminium - Black - 1 pc...
Page 24 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN FRONT & REAR DIFFERENTIAL - SPARE PARTS FRONT & REAR DIFFERENTIAL - SPARE PARTS C-00180-156 C-00180-090-1 C-00180-178 C-00180-179 C-00180-184 Centre Diff set - Case + diff Bevel Pinion 13T - Steel - 1 pc Diff.
Page 25 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN SHOCK ABSORBER - SPARE PARTS C-00180-658 C-00180-133 C-00180-189 C-00180-768 C-00180-190 Shock Cap Cover - RTR - Com- Shock Cap - Aluminium - Hard Shock Bladders - Silicone - Shock Piston Heavy Duty - 4mm Shock Washer - 2.5x6x0.5mm - posite - 2 pcs Anodised - 2 pcs...
Page 26: Option Parts
OPTION PARTS - PIÈCES D’OPTION - OPTIONSTEILE - OPTIES C-00180-903 C-00180-143-2 C-00180-899 C-00180-157 C-00180-316 HD Steering Ball Joint - Com- Turnbuckle - M5 - 92mm - HD Rear Camber Ball Joint - Wing Washer - Lightened - Shock Cap - Lower - Aluminium posite - 1 set Spring Steel - 2 pcs Outer - Inner - 1 set...
Page 27 STEEL SCREWS - VISSERIE ACIER • STAHLSCHRAUBEN • STAAL SCHROEVEN LENGTH LENGTH LENGTH LENGTH HEX FLAT HEAD SCREWS HEX BUTTON HEAD SCREWS HEX SOCKET HEAD SCREWS HEX SET SCREWS DIN 7991 - STEEL - 10 PCS DIN 7380 - STEEL - 10 PCS DIN 912 - STEEL - 10 PCS DIN 916 - STEEL - 10 PCS NOMINAL...
Page 28: Ball Bearings
NUTS - ECROUS • MUTTERN • MOEREN NYLSTOP NUT NYLSTOP NUT - FLANGED NYLSTOP NUT LOW PROFILE NUT ALUMINIUM - 10 PCS ALUMINIUM - 10 PCS STEEL - 10 PCS DIN 936 - STEEL - 10 PCS NOMINAL NOMINAL NOMINAL NOMINAL COLOR COLOR...
Page 29 SPORT RACING - LIPO ELECTRONIC Discover our range of Precision CNC-Cut MOD-1.0 Team Corally - Sport Racing 50C - 4S or 6S - XT-90 - A range of high quality electronic equipment Pinions for motors with a ø 5.0mm motor shaft Hard Case for the best performance.
Page 30 Discover our range of practical plastic boxes with a selection of the most commonly used Screws, Nuts, Shims, Washers. C-38500 C-38501 C-38505 Screw Set M3 - Hex Button Head - DIN 7380 - Steel Screw Set M4 - Hex Button Head - DIN 7380 - Steel Screw Set M3 - Hex Flat Head - DIN 7991 - Steel Black - 10.9 Grade - 15 Sizes - 375 pcs Black - 10.9 Grade - 15 Sizes - 265 pcs...
Page 31: Declaration Of Conformity
DECLARATION OF CONFORMITY - DÉCLARATION DE CONFORMITÉ • KONFORMITÄTSERKLÄRUNG • VERKLARING VAN OVEREENSTEMMING DECLARATION OF CONFORMITY EU-Konformitätserklärung/ Déclaration de Conformité UE (in accordance with ISO/IEC 17050-1) / (in Übereinstimmung mit ISO/IEC 17050-1) / (Conformément à la norme ISO/IEC 17050-1) Description : KAGAMA XP 6S - ROLLER - MONSTER TRUCK 4WD - 1/8 -RTR Item Number: C-00474 This declaration is issued under the sole responsibility of the manufacturer.
