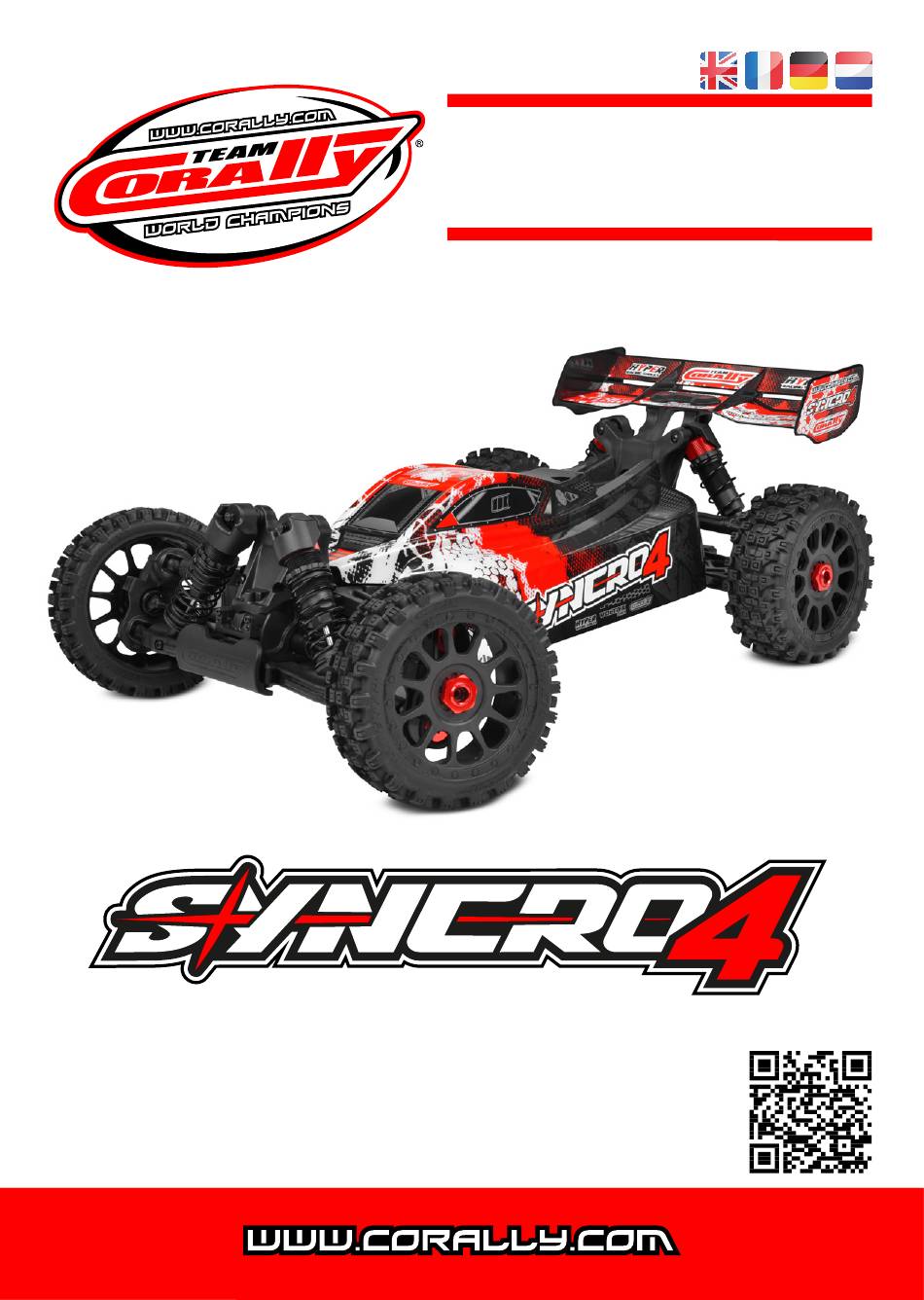

Page 1 LANGUAGES INSTRUCTION MANUAL • Download the latest version of the manual from www.corally.com • Téléchargez la dernière version du manuel à partir de www.corally.com • Download the latest version of the manual from www.corally.com • Download de nieuwste versie van de handleiding van www.corally.com C-00287 Manual - V3...
Page 2 All Team Corally models guarantee a high quality of manufacture and performance that guarantees you a high satisfaction of use and services provided by the Team Corally. Always take the time to read the instructions carefully in order to follow all the procedures to use your RC model safely for you and for other people and property in the area.
Page 3 Take all necessary precautions before, during and after using your model. You are responsible for the safe assembly, mainte- nance and use of your model. In case of any questions, contact your local reseller or contact Team Corally support for assistance. CAUTION GUIDE •...
Page 4: Warranty
He must send the defective goods to our local rep- resentatives or directly to Team Corally / JSP Group Intl bvba, Geelseweg 80, 2250 Olen, Belgium at his own risk and cost.
Page 5: Kit Content
Version française disponible sur le site: • Deutsche Version auf der Website verfügbar: • Nederlandse versie beschikbaar op de website: www.corally.com DOWNLOAD • QUICK START GUIDE Download the latest version of this manual and other languages. Download other instruction manuals about : Electronics - LiPo Safety Instructions - Spare parts - Option Parts ... https://corally.com/en/useful-links/downloads-manuals KIT CONTENT Transmitter...
Page 6: Car Components
CAR COMPONENTS • QUICK START GUIDE Front Differential Front Shock Absorber Suspension Arm Anti-Roll Bar Steering Block Steering Link Battery compartment Steering Servo Receiver Box Centre Differential Brushless Motor Speed Controller (ESC) Power Switch Rear Suspension Arm Wheel Axle Rear Upright Camber Link Rear Shock Absorber Rear Differential...
Page 7 QUICK START GUIDE • QUICK START GUIDE READ THE INSTRUCTIONS CHARGE THE BATTERY INSTALL 4x AA BATTERY - 1.5V CHARGER • Respect the polarity • Respectez la polarité • Beachten Sie die Polarität BATTERY • Respecteer de polariteit • Lisez les instructions •...
Page 8: Gear Ratio
GEAR RATIO - RAPPORT DE TRANSMISSION - GETRIEBEVERHÄLTNIS- OVERBRENGINGSVERHOUDING SPEED GEAR CHART - TABLEAU DES VITESSES - DREHZAHLGANGDIAGRAMM - VERSNELLINGSTABEL GEAR RATIO : 3.31 Km/h Km/h Km/h SPUR GEAR : 46T Gear 13T Pinion 15T Pinion 17T Pinion MOTOR KV : 2150 11,71 10,14 8,95...
Page 9 CHANGING THE MOTOR PINION - CHANGEMENT DU PIGNON MOTEUR - AUSWECHSELN DES MOTORRITZELS - VERANDEREN VAN HET MOTORRONDSEL • You can change the transmission ratio by changing the motor pinion. You can choose from 3 sprocket sizes 13, 15 and 17 teeth. The 13-tooth pinion is factory fitted and allows you to ride on all types of rough terrain.
Page 10 SHOCK ABSORBER MAINTENANCE - ENTRETIEN DES AMORTISSEURS - STOSSDÄMPFERWARTUNG - ONDERHOUD SCHOKDEMPERS • It may be necessary to replace the silicone oil in the shock absorbers every 40 runs (depends on how you drive and the type of terrain you drive on). •...
Page 11: Shock Absorber
SHOCK ABSORBER - AMORTISSEUR - STOSSDÄMPFER - SCHOKDEMPER • Do not overtighten the Shock Cap to prevent deformation of the silicone Shock Bladder. C-00180-1008 (set) • Ne serrez pas trop le capuchon de l’amortisseur pour éviter la déformation de la membrane en silicone. •...
Page 12: Differential Maintenance
DIFFERENTIAL MAINTENANCE - ENTRETIEN DU DIFFÉRENTIEL - DIFFERENZIALWARTUNG - DIFFERENTIEEL ONDERHOUD • It may be necessary to replace the silicone oil every 50 runs (depends on how you drive and the type of terrain you drive on). To dismount and maintain the differentials, follow the steps on these pages. To reassemble the differentials, repeat the steps in reverse. •...
Page 13 DIFFERENTIAL MAINTENANCE - ENTRETIEN DU DIFFÉRENTIEL - DIFFERENZIALWARTUNG - DIFFERENTIEEL ONDERHOUD REAR DIFFERENTIAL DIFFÉRENTIEL ARRIÈRE - HINTERES DIFFERENTIAL - ACHTERSTE DIFFERENTIEEL CENTRE DIFFERENTIAL DIFFÉRENTIEL CENTRAL - MITTELDIFFERENTIAL - MIDDELSTE DIFFERENTIEELENTIEEL...
Page 14: Front & Rear Differential
FRONT & REAR DIFFERENTIAL - DIFFÉRENTIELS AV&AR - DIFFERENTIAL VORNE UND HINTEN - VOOR & ACHTER DIFFERENTIEEL C-3002-30-12 (4pcs) C-00180-153-2 C-00180-205 C-3611-3-08-16-05 C-00180-179 (set) C-00180-182 C-00180-184 C-00180-688 C-00180-205 C-00180-183 OPTION Aluminium 7075 Hard Anodised Aluminium 7075 Hard Anodised C-00180-182 Made in Italy Made in Italy C-00180-410 Xtreme Diff Case - 30mm -...
Page 15 FRONT DRIVE TRAIN - TRAIN AVANT - FRONTANTRIEB - VOORSTE AANDRIJFLIJN C-00180-117 C-00180-329 DIN913 M4x4 C-00180-122 C-00180-150 C-00180-077 C-00180-123 C-00180-989 C-00180-207 C-3611-3-08-16-05 (x2) C-00180-009-1 C-00180-1037 6x12x1.5mm C-00180-024 C-00180-011 C-00180-555-1 HEX BUTTON HEAD SCREWS C-00180-992 DIN 7380 - STEEL - 10 PCS C-00180-360 M3x8mm C-00180-1010...
Page 16 REAR DRIVE TRAIN - TRAIN ARRIÈRE - HINTERACHSANTRIEB - ACHTERSTE AANDRIJFLIJN C-00180-1127-B C-00180-1003 C-3213-30-5 (x2) C-3101-30 (2x) C-00180-1011 C-00180-1010 C-3101-30 (2x) HEX BUTTON HEAD SCREWS C-00180-993 DIN 7380 - STEEL - 10 PCS C-00180-994 M2.5x8mm #C-3003-25-08 M2.5x18mm C-00180-024 C-3004-30-05 (2x) #C-3003-25-18 C-00180-035 C-00180-045...
Page 17 CHASSIS - CHASSIS - CHASSIS - CHASSIS OPTION CENTRE DIFF ASSEMBLY - CENTRE DIFF ASSEMBLY - XPERT BUILD XPERT BUILD Aluminium / Steel Aluminium / Steel C-00180-1034 C-00180-685 Centre Diff Assembly - C-00180-969 (set) 46T Main Gear - Xpert Build - 100K Oil Filled KURON 725 C-54054 C-3004-40-04...
Page 18: Servo-Saver
SERVO-SAVER - SAUVE-SERVO C-3611-3-06-10-03 C-00180-145 (set) OPTION C-00180-036 (set) C-00180-266 Servo Saver Steering Arm - Aluminium C-3101-30 7075 T6 - Hard Anodised - Black - 1 pc C-00180-216 C-3611-3-06-10-03 OPTION C-00180-191 C-00180-145 (set) C-00180-036 (set) C-3611-3-06-10-03 C-00180-831 C-3611-3-06-10-03 Steering Rack - Dual Stiffener - Alumin- ium - 1 Pc C-3003-30-10 C-00180-206...
Page 19: Spare Parts
SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-010 C-00180-004-1 C-00180-005-2 C-00180-008 C-00180-009-1 Suspension Arm - Lower - Rear Battery Strap - Hook & Loop Wing Mount - Adjustable - Hub - Rear - Composite - 1 pc HD Steering Block (1pc) - Pillow - 2 pcs Composite - 1 Set...
Page 20 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN C-00180-969 C-00180-974 C-00180-976 C-00180-555-1 C-00180-556-1 Centre Diff Plate - Pinion Gear Suspension Arm Mount - FR - Alu. Suspension Arm Mount - RR - Alu. Steering Links - Buggy - 77mm Camber Links Rear - Buggy - 4mm - Composite Cover - 1 Set 4mm - Composite Cover - 1 Set...
Page 21 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN FR & RE DIFFERENTIAL - SPARE PARTS C-00180-689 C-00180-688 C-00180-179 Bevel Pinion 13T - Steel - 1 pc Diff. Bevel Gear 43T - Molded Planetary Diff. Gears - Steel - Steel - 1 pc 1 Set C-00180-184...
Page 22 SPARE PARTS - PIÈCES DE RECHANGE • ERSATZTEILE • ONDERDELEN SHOCK ABSORBER - SPARE PARTS C-00180-1011 C-00180-1025 C-00180-1026 C-00180-190 C-00180-029 Shock Cap Protector - EB - Maintenance Kit 1 - Composite Maintenance Kit 2 - Composite Shock Washer - 2.5x6x0.5mm - Shock Spring Cup - Composite Composite - 2 pcs Shocks - 1 Set...
Page 23: Option Parts
OPTION PARTS - PIÈCES D’OPTION - OPTIONSTEILE - OPTIES C-00180-153-X C-00180-155-X C-00180-154-X C-00180-365 C-00180-1019 PRO Diff. Outdrive Cup - Swiss PRO Pinion Outdrive Cup - PRO Centre Diff. Outdrive Cup - Universal Joint Drive Shaft - Chassis Brace - EB - Alumini- Spring Steel - 2 pcs Swiss Spring Steel - 2 pcs Swiss Spring Steel - 2 pcs...
Page 24 STEEL SCREWS LENGTH LENGTH LENGTH LENGTH HEX SOCKET HEAD SCREWS HEX BUTTON HEAD SCREWS HEX FLAT HEAD SCREWS HEX FLAT HEAD SCREWS DIN 912 - STEEL - 10 PCS DIN 7380 - STEEL - 10 PCS DIN 7991 - STEEL - 10 PCS TITANIUM - 10 PCS NOMINAL LENGTH...
Page 25: Ball Bearings
NUTS NYLSTOP NUT NYLSTOP NUT - FLANGED NYLSTOP NUT LOW PROFILE NUT ALUMINIUM - 10 PCS ALUMINIUM - 10 PCS STEEL - 10 PCS DIN 936 - STEEL - 10 PCS NOMINAL NOMINAL NOMINAL NOMINAL COLOR COLOR COLOR COLOR SIZE SIZE SIZE SIZE...
Page 26: Declaration Of Conformity
DECLARATION OF CONFORMITY - DÉCLARATION DE CONFORMITÉ • KONFORMITÄTSERKLÄRUNG • VERKLARING VAN OVEREENSTEMMING DECLARATION OF CONFORMITY EU-Konformitätserklärung/ Déclaration de Conformité UE (in accordance with ISO/IEC 17050-1) / (in Übereinstimmung mit ISO/IEC 17050-1) / (Conformément à la norme ISO/IEC 17050-1) Description : SYNCRO 4 - BUGGY 4WD - 1/8 -RTR Item Number: C-00287 This declaration is issued under the sole responsibility of the manufacturer.
Page 27 C-49231-X C-49232-X C-49247-X Team Corally - Sport Racing 50C - 5000MAH - 3S - Team Corally - Sport Racing 50C - 5000MAH - 4S - Team Corally - Sport Racing 50C - 7000Mah - 4S - 11,1V - XT-90 - Semi-Soft Case...
Page 28 This manual is an edition of Corally, a division of JSP GROUP INTL nv, Geelseweg 80, B-2250 Olen, Belgium. This manual is protected by a copyright and nothing from this edition may be reproduced or used without any prior written authorisation. Whilst every effort has been made to ensure the accuracy of the information in this manual, errors creep in and Corally can accept no responsibility for failures, wrong specifications, accuracy of colours, losses or damages caused.
