Required Tools And Equipment - Cisco Network Convergence System 6000 Series Unpacking, Moving, And Securing Manual

Attaching the Dolly to the Chassis and Removing the Chassis Pallet

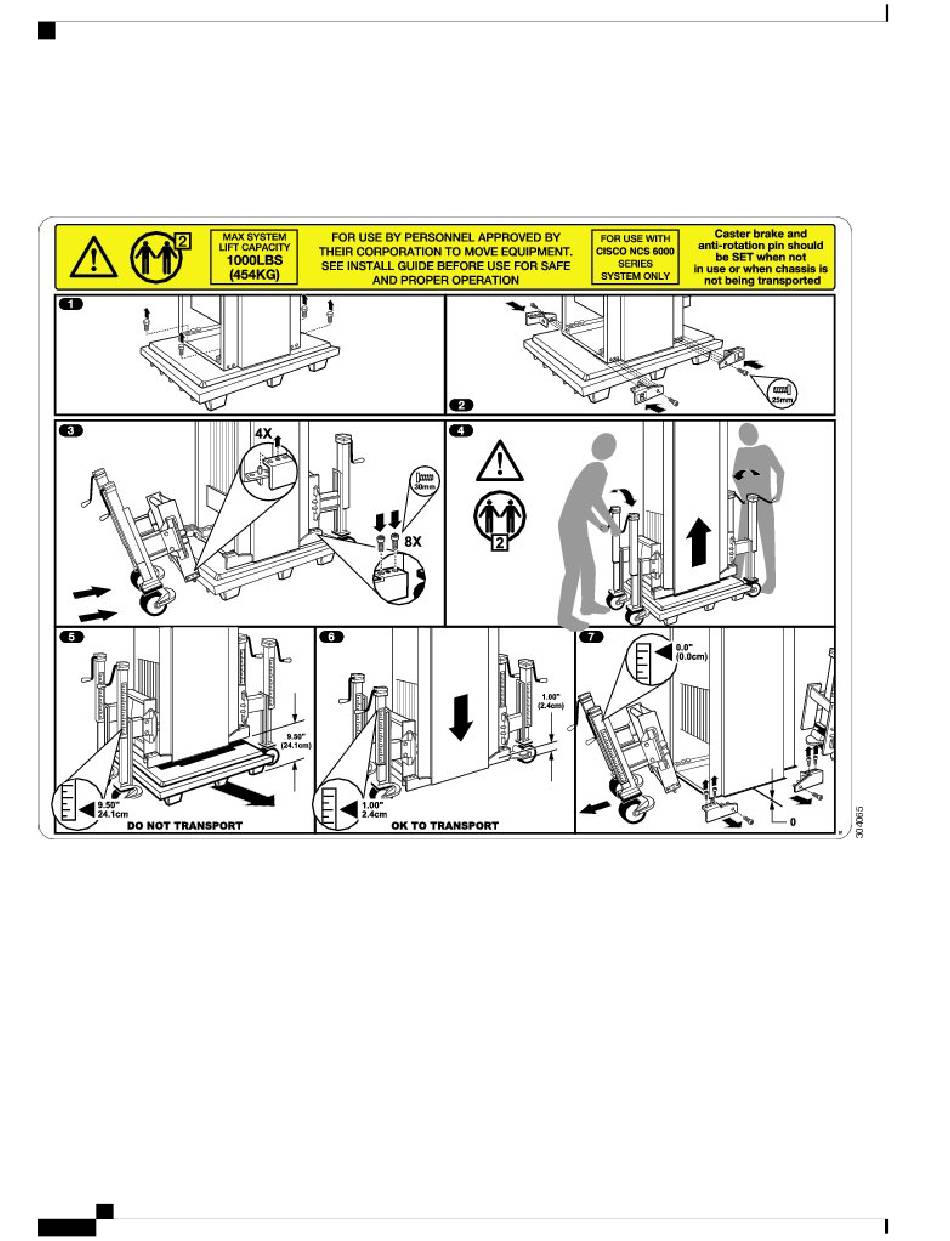

The following figure shows the dolly instruction label on the inside component of the dolly. Refer to this
figure when performing the steps to attach the dolly to the chassis in this section.
Figure 11: Attaching the Dolly to the Chassis — Instructions
Prerequisites
Before performing this task, unpack both the chassis and the dolly.

Required Tools and Equipment

• 3/8-inch ratchet wrench
• 9/16-mm socket
• 14-mm socket
• 12-mm hex bit
Cisco Network Convergence System 6000 Series Routers Unpacking, Moving, and Securing Guide
22
Unpacking the Chassis
