Modifying the Dolly Configuration

Steps

To change the dolly configuration from the as-shipped 90-degree configuration to the 180-degree transport
configuration, perform the following steps.
Step 1 Set the caster wheel rotation using the caster anti-rotation pin. Turn the anti-rotation pin to a vertical position to lock the
caster (Figure 5: Chassis Dolly—90-Degree Configuration
Step 2 To lock the brakes depress the brakes on each side of the dolly.
Step 3
Using the handles
or lower the dolly according to the label rotation direction. Turn the lifting cranks until the dolly casters are just off the
floor.
Step 4 Unlock the dolly caster brakes and anti-rotation pins on both units.
Step 5 On the dolly unit attached to the front side of the chassis, use the 3/8-inch ratchet wrench with 12-mm hex bit to remove
the two holding bolts on the left side lift arm swing bracket to convert to the 180-degree configuration.

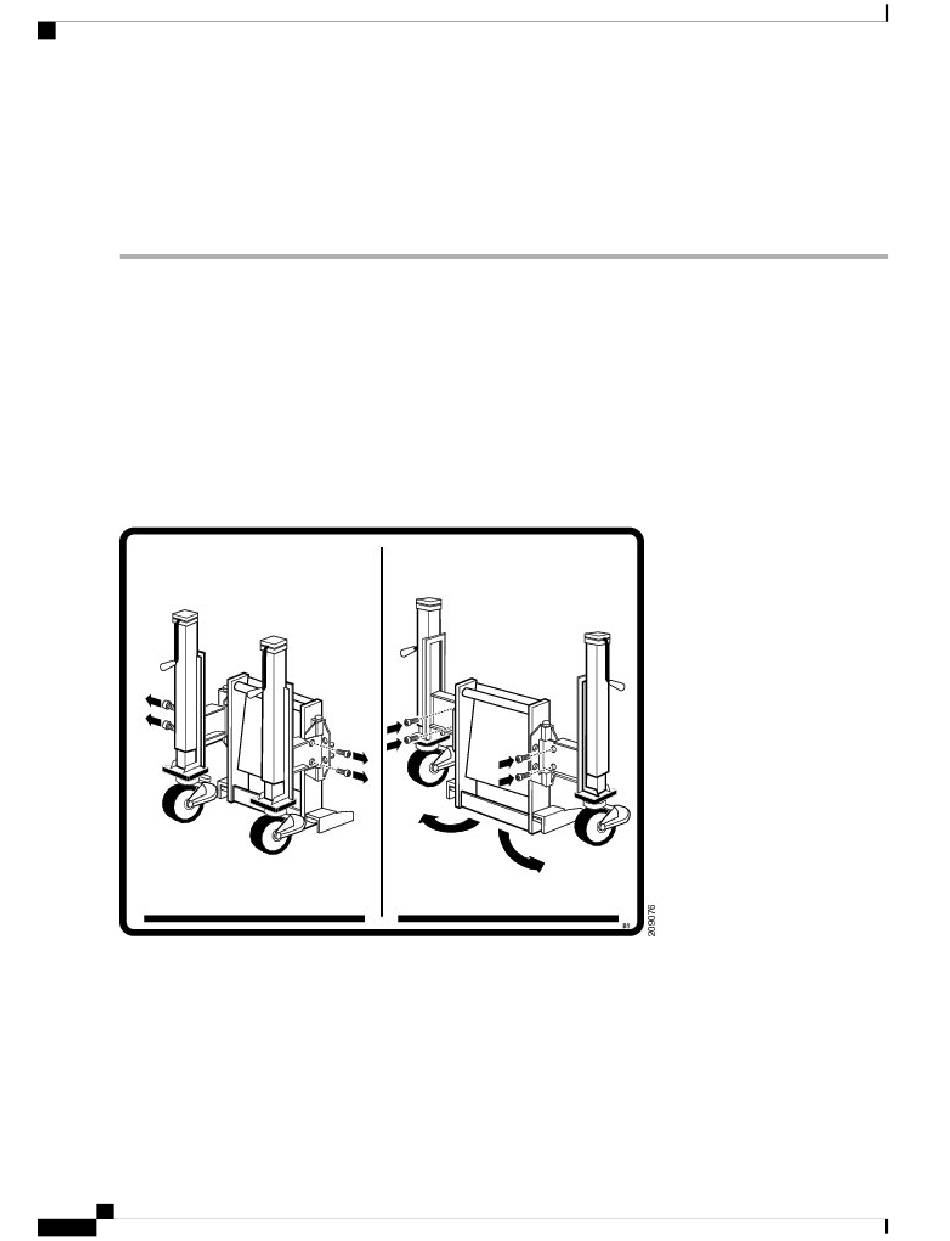

Figure 7: Chassis Dolly — Removing Holding Bolts and Swinging Arm Out to 180 Degrees
Step 6 Swing the lift arm swing bracket to the side (180-degree position as shown in the above figure). Reinsert the holding
bolts and partially tighten the bolts.
Step 7
Repeat Step 1 through Step 6 for the other dolly unit.
dolly in a 180-degree configuration.
Step 8 Lock the dolly caster brakes and anti-rotation pins until you are ready to move the chassis.
Step 9 Using the 3/8-inch ratchet wrench with 12-mm hex bit, firmly tighten the holding bolts on both dolly units.
