DEVICE SETUP

2.1 Quick Start

If you purchased the Mercury Elite Pro as an empty enclosure, proceed to Section 2.2 below. If you
purchased the Mercury Elite Pro with a drive installed, the OWC Drive Guide formatting utility has been
installed. Follow these steps

2.2 Assembly

NOTE: these assembly instructions are written for users who purchased the Mercury Elite Pro as an empty
enclosure. The instructions show how to open the enclosure in order to install a drive. If you purchased the
Mercury Elite Pro with a drive already installed, opening the enclosure before the expiration of the original
warranty will VOID the warranty. If you wish to remove or replace a drive after the expiration of the original
warranty, you may do so at that time. You should start with Step 7 in that case and work backward.
4. Use the included screws to affix the drive to the inner-chassis at the locations shown (2 on each side).
Mercury Elite Pro
to use the Drive Guide to format your drives for macOS or Windows.

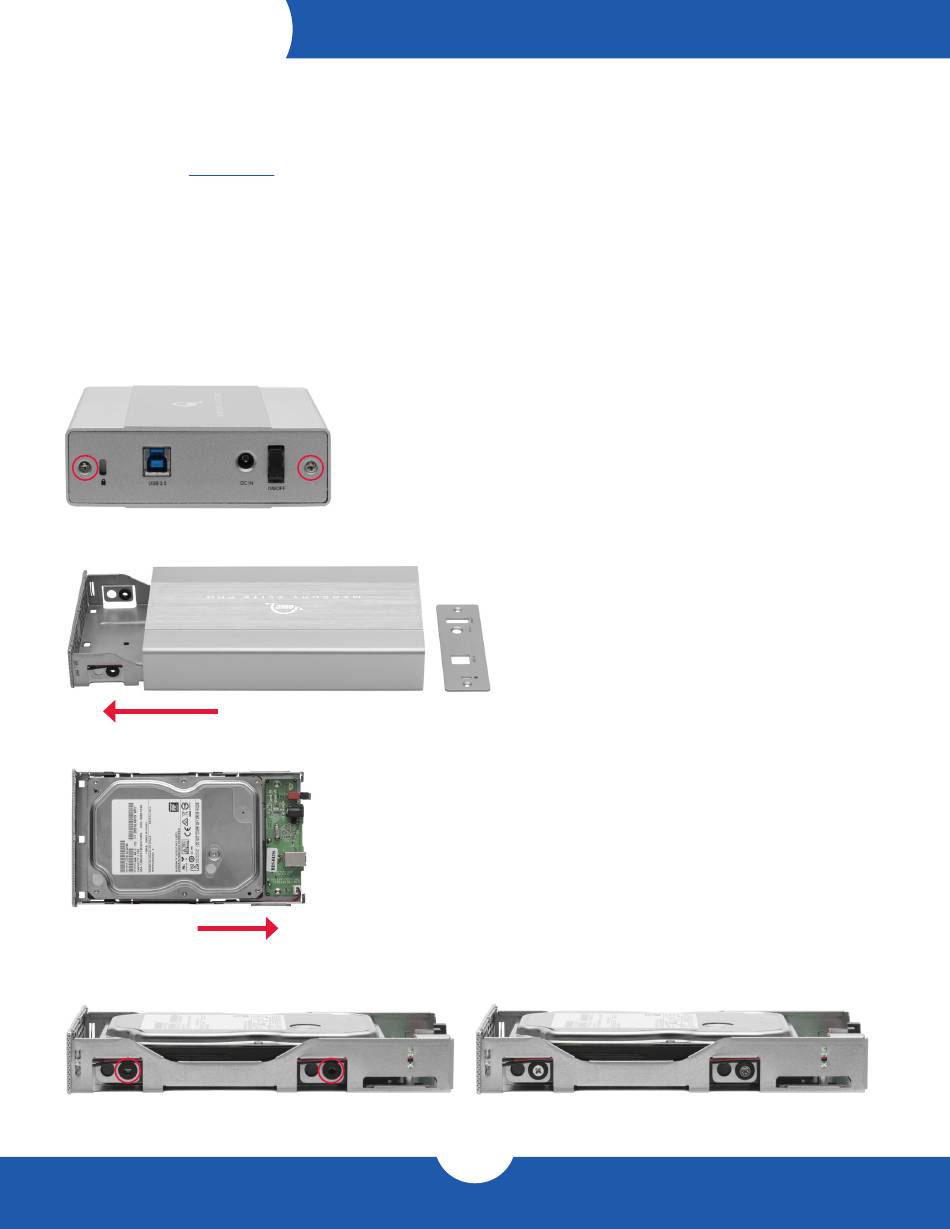

1. Remove the enclosure from its packaging and set it on a level
worksurface with the rear of the device facing you. Remove the
two case screws at the locations shown.
3. Carefully insert the 3.5 inch SATA drive with its connectors facing
down and towards the PCBA, then slide the drive into the SATA
connector on the PCBA until it is fully seated. Only a modest
amount of force is required.
2. The back plate should fall away; set it aside
and holding the front edge of the enclosure,
pull the inner chassis out.
