Terminal Identification:

AL400ULB - Power Supply Board
Terminal Legend Function/Description
AC/AC Low voltage AC input (24VAC 100VA). Altronix part #T24130
+ DC - 6VDC-15VDC @ 4 amp total continuous output.
PD8ULCB - Distribution Module
1P - 8P Positive DC output, Class 2, power-limited.
1N - 8N Negative DC output, Class 2, power-limited.

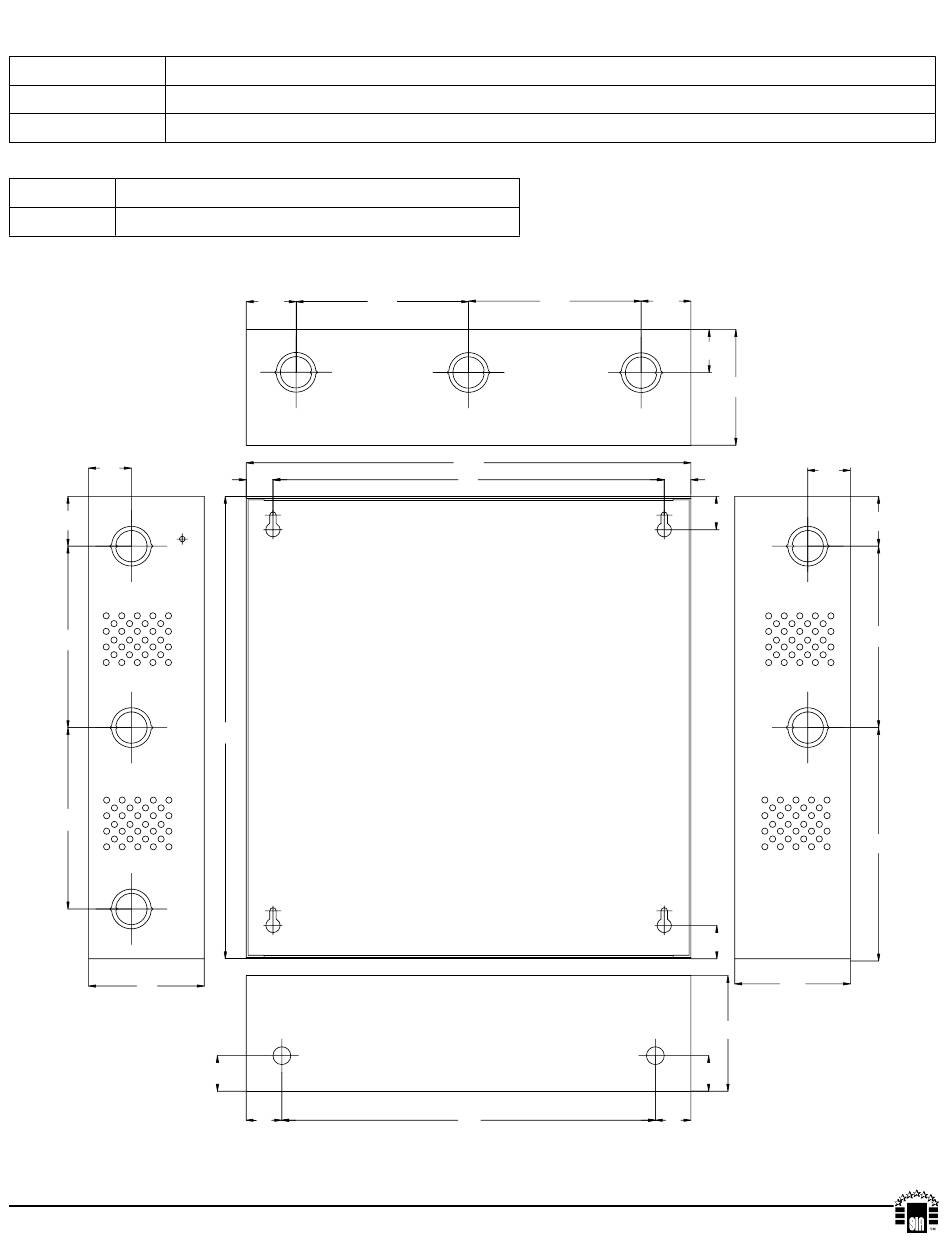

Enclosure Dimensions

13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm)
1.20"
(31mm)
1.40"
(36mm)
5.10"
(130mm)
5.10"
(130mm)
3.25"
(83mm)
Altronix is not responsible for any typographical errors.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IIALTV615DC8ULCB Rev. 042806
(H x W x D approximate)
1.40" 4.85"
(36mm) (123mm)
0.75"
(19mm)
13.0"
(330mm)
1.0"
(25mm)
1.0"
(25mm)
:
4.85"
(123mm)
12.5"
(318mm)
11.0"
(279mm)
10.5"
(267mm)
K18M
1.40"
(36mm)
1.20"
(31mm)
3.25"
(83mm)
1.20"
0.75"
(31mm)
(19mm)
0.9375"
(24mm)
0.9375"
(24mm)
3.25"
(83mm)
3.25"
(83mm)
1.0"
(25mm)
1.0"
(25mm)
1.40"
(36mm)
5.10"
(130mm)
6.5625"
(167mm)
