355 lb
two person
assembly
®
C O M M E R C I A L - G R A D E

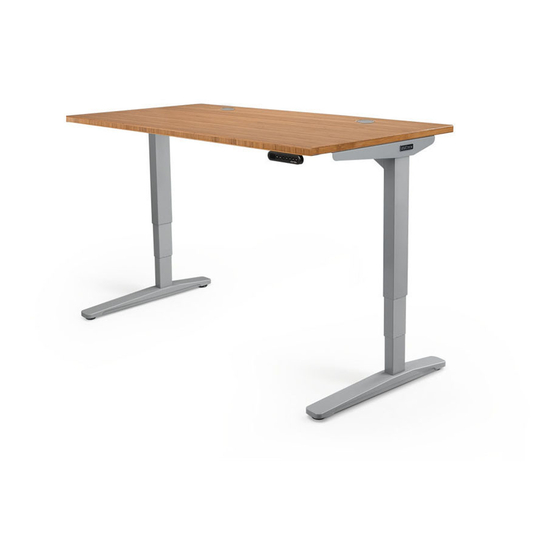

2-Leg Height Adjustable Standing Desk
C-Frame
or
T-Frame
SAVE THESE INSTRUCTIONS:
Study this manual carefully. If this desk is sold, please provide the manual
to the buyer, installers, or support personnel operating the product.
4933053182316
4933053182316
-
THS058
90.014.01.0666v.A
AI-FRMA-2-COM-0.6
Advertisement
Table of Contents
Related Manuals for Uplift Desk T-Frame
Summary of Contents for Uplift Desk T-Frame
- Page 1 C O M M E R C I A L - G R A D E 2-Leg Height Adjustable Standing Desk C-Frame T-Frame SAVE THESE INSTRUCTIONS: Study this manual carefully. If this desk is sold, please provide the manual to the buyer, installers, or support personnel operating the product.
-
Page 2: Safety And Warnings
Liability: Under no circumstances does the manufacturer accept warranty claims or liability claims for dam- ages caused from improper use or handling of the desk frame other than that which is described in this operation manual. © UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • info@upliftdesk.com • upliftdesk.com... -
Page 3: Package Contents
However we do cover another model in these pages, the Commercial-Grade T-Frame (more on that later). If you are assembling the C-Frame model, keep an eye out for this “C” icon for instructions specific to this model. © UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • info@upliftdesk.com • upliftdesk.com... - Page 4 C9 b (includes leveling pads, qty 2) (qty 2) (qty 2) If you are assembling the T-Frame model, keep an eye out for this “T” icon for instructions specific to this model. ASSEMBLY INSTRUCTIONS Step 1 Place Frame ends (C3) upside down, as shown. In- sert the Leg (C1) so the back of the Leg and the back edge of the Frame end are flush.
- Page 5 Rubber grommets are inserted inside each slot, and sliding the frame may dislodge them. If a rubber grommet does come out, they can be easily inserted back in the slot. © UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 6 Tighten using the 4mm Allen wrench (H6). The Center rails do not need to be perfectly centered, but make sure that all eight Set screws make contact with the rails. © UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 7 Wire management tray, now is a good time to add them. Refer to the instructions that came with your accessories, and refer to page 8 of this guide for the Wire management tray. © UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • info@upliftdesk.com • upliftdesk.com...
-
Page 8: Desk Placement
Ensure adequate cord clearance before using the desk. Connect desk’s power cord to the 120v outlet to make the desk ready for use. Do not place any objects underneath the desk that are taller than 20’’. © UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • info@upliftdesk.com • upliftdesk.com... - Page 9 UPLIFT STEEL CROSSBAR (OPTIONAL) The Steel Crossbar is available for maximum stability for your Commercial-Grade UPLIFT Desk and adds additional side-to-side stability for your workstation. This Steel Crossbar accessory is not required to complete assembly of your desk, but can be ac- quired and installed to your desk later to add even more strength if you desire it.
- Page 10 5mm Allen wrench (H7) at the locations mentioned in the accessory’s instructions. PROGRAMMING (Advanced 1-touch digital keypad only) These UPLIFT Desk programming instructions are compatible only with the Advanced 1-Touch Digital Memory Keypad and control boxes with the following numbers located on the silver sticker: FRMA-2-COM: 99.074.14.0089v4.2...
- Page 11 To set new minimum and maximum height settings outside of the current settings, you will need to first remove the current minimum and maximum settings. © UPLIFT Desk • 1-800-349-3839 • 1-512-614-3152 • info@upliftdesk.com • upliftdesk.com...
-
Page 12: Troubleshooting
© Copyright Notice: This guide is a component of the UPLIFT Desk™. This guide is a part of the scope of delivery, even if the item is resold. This guide is also available on the UPLIFT Desk website: upliftdesk.com. Excerpts or copies may not be forwarded to third parties or used in any other published form without the prior written consent of UPLIFT Desk. These instructions are subject to United States copyright law.
