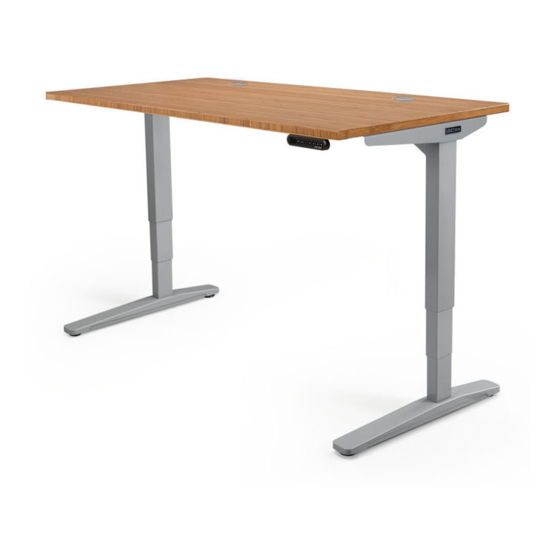

- Page 1 ® V2 Standing Desk Frame C-Frame and T-Frame Models C-Frame T-Frame two person assembly For assembly assistance, visit upliftdesk.com/2leg-srd, or call 800-349-3839, 355 lb or email support@upliftdesk.com Patent Pending, ©2020 UPLIFT Desk®. All Rights Reserved...
- Page 2 Thank you for choosing UPLIFT Desk.
-
Page 3: Safety And Warnings
Under no circumstances does the manufacturer accept warranty or liability claims for damages caused from improper use or handling of this desk. Provide this manual to any new user. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com... - Page 4 “C” icon for in- structions specific to this model. C-Frame Components “CORE2” Box Foot Side bracket (includes leveling pads, qty 2) (right and left, qty 2) © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 5 “4” or the 5mm Allen wrench into the side marked with the number “5”. Be sure to push the Allen wrench all the way into the slot until it snaps into place. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 6 Center indicator marks Slide the Crossbar rails into one of the Crossbar ends (C5). The slots on the Crossbar rails are offset, and should be farther from the floor. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 7 Step 6. Do not tighten all the way. Note: If you had to drill a pilot hole for the Crossbar end in Step 5, you will have to use a Wood screw (H4a) for that hole. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 8 Over tightening where there is a gap can cause stress on the desktop which can cause cracks or warping over time. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 9 Top view of Control box tabs & Crossbar end slot. This is just an illustration, you won’t be able to see this when installing. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
-
Page 10: Accessory Installation
#10x5/8’’ Wood screws (H14). If needed, follow the instructions in Step 5 for pre-drill- ing tray mounting holes. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com... - Page 11 Be careful not to miss the screws marked with an ar- row in the diagram. Don’t forget that one of the screws is under the Control box. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 12 Your desk is now ready for use! If you are using a Memory keypad, see additional key- pad instructions for further information on how to use your keypad © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
- Page 13 4. Hold the DOWN button until the desktop lowers slightly, then raises slightly, and the display changes back to the numeric height setting, then release. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com...
-
Page 14: Display Units
To set new minimum and maximum height settings outside of the current settings, you will need to first remove the current minimum and maximum settings. © UPLIFT Desk • 800-349-3839 • 512-614-3152 • info@upliftdesk.com • upliftdesk.com... -
Page 15: Troubleshooting
If the error message persists after performing the Reset procedure, or if there is a height difference between the legs which exceeds 1.5’’, contact UPLIFT Desk at the email address or phone numbers listed at the bot- tom of each page of these instructions. - Page 16 Copyright Notice: This guide is a component of the UPLIFT Desk™. This guide is a part of the scope of delivery, even if the item is resold. This guide ©...
