Summary of Contents for Uplift Desk PDC005

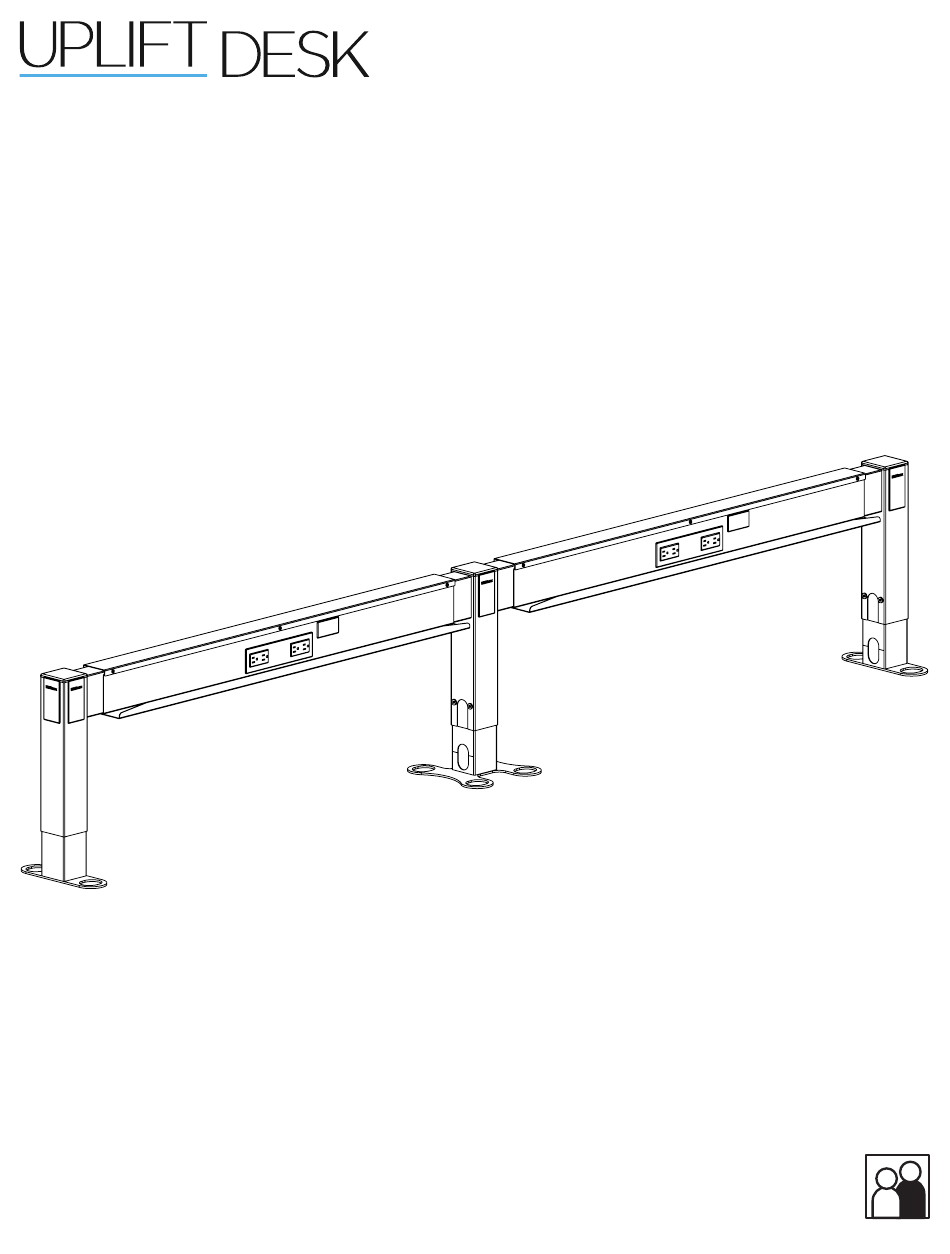

- Page 1 ® Power & Data Rail Modular system for power and data solutions. two person assembly For further info or assistance, visit upliftdesk.com 355 lb call 800-349-3839 or email support@upliftdesk.com Patent Pending, ©2020 UPLIFT Desk®. All Rights Reserved...
- Page 2 UPLIFT Power & Data Rail Components Square Post 120-Degree Post (PDC005-POST-SQ) (PDC005-POST-120) Dual Row Single Row Single Row Dual Row Single Row Dual Row End Foot End Foot Center Foot Center Foot Center Foot Center Foot 80” desks 80” desks...
- Page 3 Power and Data Rail allows you to provide power and data to the following common configurations and many more. Single Sided Row Dual Sided Row C-Shape H-Shape Herringbone 4-Pack 3-Pack Dog Bone Shape © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 4 UPLIFT V2-Commercial Desks C. Once in place, tighten the Set Screws again and continue this process with the rest of your Posts. Height setting for Height setting for V2 Frames V2-Commercial Frames © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 5 Power Infeed hole facing hole the power source. C. After the legs are generally where they need to be, Power move on to the Assembly sections. source © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 6 Rail Extension are hooked over each Post top and opening as shown. B. Attach each Rail Extension to each Post with an M5x12 Machine Screw and tighten using the 3mm Allen Wrench. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 7 UPLIFT 42”, 48”, and 120-degree desks. • Long Rails have a length adjustment range of 51.75’’ to 82.75’’ (31” range) and are used with UPLIFT 60”, 72”, and 80” desks. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 8 Use Single Row Center Foot (PDC005-FOOT-SC) at “B” locations, facing the desks. 4-Pack Use Dual Row End Feet at “A” locations. Use a Dual Row Center Foot (PDC005-FOOT-DC) at the center location, “B.” © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 9 B. Hand tighten each screw a few turns at first. Once all screws are started, tighten them with the in- cluded 3mm Allen Wrench. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 10 42.25” between the 120-Degree and Square Posts. • Note: We highly recommend using our Desk Benching System for V2 Desks (FRM028) with 120-Degree desks to create consistent spac- ing between the desks. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 11 42.25” between the 120-Degree and Square Posts. • Note: We highly recommend using our Desk Benching System for V2 Desks (FRM028) with 120-Degree desks to create consistent spac- ing between the desks. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 12: Electrical Assembly
Rail extension, Post, and next Rail extension to the middle of the next Rail. B. Continue on until all of the Jumpers are in place within the Power & Data Rail assembly. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 13 Rails in order to feed the Jumpers as shown in the example to the left. Detaching one Rail will allow access through the open “window” of the 120-Degree Post. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 14: Installing Power Components
Jumper(s) to the other end of the Power Block. With short Rails, it may help to slide one of the Rail Extensions out a bit to give yourself more room. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 15 Once all of the electrical components are installed and connected, tighten all of the Rail Extension Washer Screws using a 3mm Allen Wrench, but do not over tighten to avoid stripping. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
-
Page 16: Electrical Wiring
Hardwire Power Infeed wiring diagram Circuit 3 Circuit 4 Gray Neutral 2 White Neutral 1 Green/Yellow Iso Ground Green Ground Pink Hot 4 Blue Hot 3 Hot 2 Black Hot 1 © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com... - Page 17 Microphone Jack/3-pin XLR, solder type only www.Byrne.com Video Monitor Jack/DB-15, panel mount solder style www.Byrne.com Note: Please verify fit of jack in adapter before ordering large quantities as manufacturer designs may change without notice. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 18 Plate, fit the assembly into the data window in the side of the Power & Data Rail. Step 7 If you are not installing data in a particular data open- ing, insert one of the included Blank Plates. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 19 B. Finally, press the Square and 120-Degree Post Caps onto the tops of each Post by aligning the pegs on the caps with the holes in the top of the Posts. © UPLIFT Desk • 800-349-3839 • info@upliftdesk.com • upliftdesk.com...
- Page 20 Copyright Notice: This guide is a component of this UPLIFT Desk Product. This guide is a part of the scope of delivery, even if the item is resold. This ©...
