VIPA System 300S IM 353-1DP01 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VIPA System 300S
IM | 353-1DP01 | Manual
HB140E_IM | RE_353-1DP01 | Rev. 14/46
November 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the System 300S IM 353-1DP01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VIPA System 300S IM 353-1DP01

Summary of Contents for VIPA System 300S IM 353-1DP01

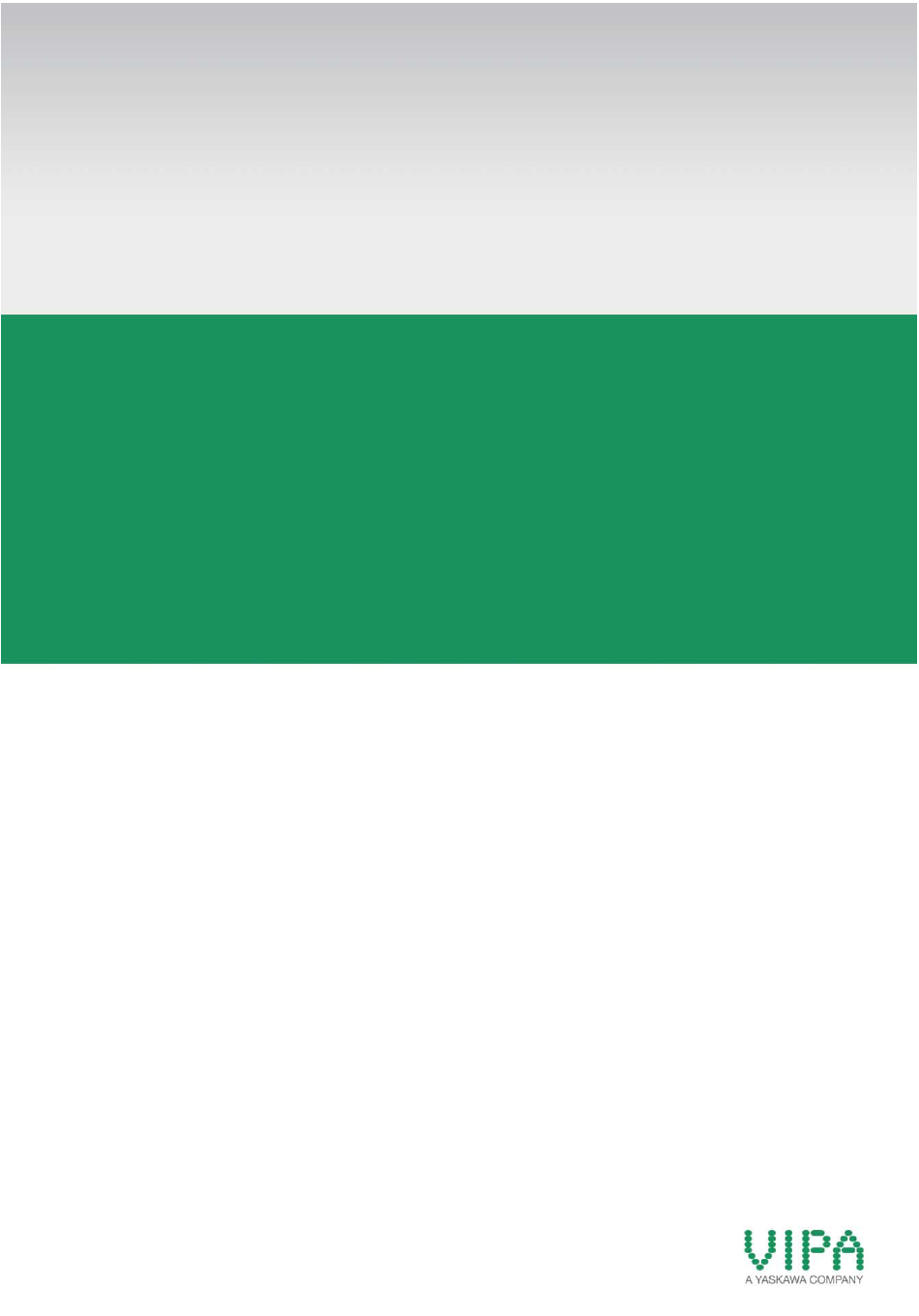

  • Page 1 VIPA System 300S IM | 353-1DP01 | Manual HB140E_IM | RE_353-1DP01 | Rev. 14/46 November 2014...
  • Page 2 Copyright © VIPA GmbH. All Rights Reserved. This document contains proprietary information of VIPA and is not to be disclosed or used except in accordance with applicable agreements. This material is protected by the copyright laws. It may not be reproduced, distributed, or altered in any fashion by any entity (either internal or external to VIPA), except in accordance with applicable agreements, contracts or licensing, without the express written consent of VIPA and the business management owner of the material.

  • Page 3: Table Of Contents

    Manual VIPA System 300S Contents Contents About this manual ..................1 Safety information ..................2 Chapter 1 Assembly and installation guidelines......1-1 Safety Information for Users..............1-2 Installation dimensions ................. 1-3 Assembly standard bus ................ 1-4 Cabling....................1-6 Installation guidelines ................1-7 General data ..................

  • Page 4: About This Manual

    Manual VIPA System 300S About this manual About this Manual This manual describes the operation of the System 300S and the according available interface modules IM 353-1DP01. You'll find here a detailed description of the module. You will get information for connecting and operating the module.
  • Page 5 Manual VIPA System 300S About this manual This manual describes the interface module IM 353-1DP01 which can be Objective and used at the System 300S. It contains a descr iption of the construction, contents project implementation and usage. This manual is relevant for:...

  • Page 6: Safety Information

    Safety information Safety information The interface modules are constructed and manufactured for: Applications conforming with • all VIPA System 300S components specifications • communication and process control • general control and automation applications • industrial applications • operation within the environmental conditions specified in t he technical data •...

  • Page 7: Chapter 1 Assembly And Installation Guidelines

    Manual VIPA System 300S Chapter 1 Assembly and installation guidelines Chapter 1 Assembly and installation guidelines In this chapter you will find all information, required for the installation and Overview the cabling of a process control with the components of the System 300S.

  • Page 8: Safety Information For Users

    Manual VIPA System 300S Chapter 1 Assembly and installation guidelines Safety Information for Users VIPA modules make use of highly integrated components in M OS- Handling of Technology. These components are extremely sensitive to over-voltages electrostatic that can occur during electrostatic discharges.

  • Page 9: Installation Dimensions

    Manual VIPA System 300S Chapter 1 Assembly and installation guidelines Installation dimensions 1tier width (WxHxD) in mm: 40 x 125 x 120 Dimensions Basic enclosure Dimensions Installation 125mm dimensions 120mm 175mm HB140E - IM - RE_353-1DP01 - Rev. 14/46...

  • Page 10: Assembly Standard Bus

    Manual VIPA System 300S Chapter 1 Assembly and installation guidelines Assembly standard bus The single modules are directly installed on a profile rail and connected via General the backplane bus connector. Before installing the modules you have to clip the backplane bus connector to the module from the backside.
  • Page 11 Manual VIPA System 300S Chapter 1 Assembly and installation guidelines Assembly possibilities horizontal assembly vertical Please regard the allowed environment temperatures: assembly • horizontal assembly: from 0 to 60°C • vertical assembly: from 0 to 40°C SLOT2 SLOT1 DCDC • lying assembly: from 0 to 40°C...

  • Page 12: Cabling

    The power supplies and CPUs ar e exclusively delivered with CageClamp Overview contacts. For the signal modules the front connectors are available from VIPA with screw contacts. In the following all connecting types of the power supplies, CPUs and input/output modules are described. Danger! •...

  • Page 13: Installation Guidelines

    Manual VIPA System 300S Chapter 1 Assembly and installation guidelines Installation guidelines The installation guidelines contain information about the interference free General deployment of System 300S systems. There is the description of the ways, interference may occur in y our control, how you can m ake sure the electromagnetic digestibility (EMC), and how you manage the isolation.
  • Page 14 Manual VIPA System 300S Chapter 1 Assembly and installation guidelines In the most times it is enoug h to take care of some elementary rules to Basic rules for guarantee the EMC. Please regard the following basic rules when installing your PLC.
  • Page 15 Manual VIPA System 300S Chapter 1 Assembly and installation guidelines Electrical, magnetically and elect romagnetic interference fields are Isolation of weakened by means of an isolation, one talks of absorption. conductors Via the isolation rail, that is connect ed conductive with the rack, interference currents are shunt via cable isolat ion to the ground.

  • Page 16: General Data

    Manual VIPA System 300S Chapter 1 Assembly and installation guidelines General data • Profile rail 530mm Structure/ • Peripheral modules with recessed labeling dimensions • Dimensions of the basic enclosure: 1tier width: (WxHxD) in mm: 40x125x120 2tier width: (WxHxD) in mm: 80x125x120 3tier width: (WxHxD) in mm: 120x125x120 •...

  • Page 17: Chapter 2 Hardware Description

    Manual VIPA System 300S Chapter 2 Hardware description Chapter 2 Hardware description Here the hardware components of the IM 353-1DP01 are described. The Overview technical data are at the end of the chapter. Content Topic PAge Chapter 2 Hardware description............2-1 Properties.....................

  • Page 18: Properties

    (4Byte DP-V1-Header + 240Byte user data) IM 353DP AI 8x12Bit S/F1 S/F2 S/F3 S/F4 SM331 VIPA 353-1DP01 S/F5 S/F6 S/F7 S/F8 VIPA 331-7KF00 Ordering data Type Order number Description IM 353DP VIPA 353-1DP01 PROFIBUS DP-V0/V1 slave HB140E - IM - RE_353-1DP01 - Rev. 14/46...

  • Page 19: Structure

    Manual VIPA System 300S Chapter 2 Hardware description Structure IM 353 353-1DP01 LED Status indicators IM 353DP Address selector The following components are beneath a flap DC 24V voltage supply RS485 interface VIPA 353-1DP01 DC24V PB DP PB DP Interfaces n.
  • Page 20 Manual VIPA System 300S Chapter 2 Hardware description Components The module carries a number of LEDs t hat are available for diagnostic LEDs purposes on the bus and for displaying the local status. The following table explains the different colors of the diagnostic LEDs.
  • Page 21 Manual VIPA System 300S Chapter 2 Hardware description The PROFIBUS slave has an int ernal power supply. This power supply Power supply requires DC 24V. In addition to the electronics on t he bus coupler , the supply voltage is also used t o power any modules connected to the backplane bus.

  • Page 22: Technical Data

    Manual VIPA System 300S Chapter 2 Hardware description Technical Data Order no. 353-1DP01 Type IM 353DP SPEED-Bus Technical data power supply Power supply (rated value) DC 24 V Power supply (permitted range) DC 20.4...28.8 V Reverse polarity protection Current consumption (no-load operation)

  • Page 23: Chapter 3 Deployment

    Manual VIPA System 300S Chapter 3 Deployment Chapter 3 Deployment This chapter describes the usage of the IM 353-1DP01 at the System 300. Overview You may find here all information about project engineering, commissioning and diagnostic. Content Topic Page Chapter 3 Deployment ..............

  • Page 24: Basics

    Manual VIPA System 300S Chapter 3 Deployment Basics PROFIBUS is an int ernational standard applicable to an open fieldbus for General building, manufacturing and pr ocess automation. PROFIBUS defines the technical and functional characteristics of a serial fieldbus system that can be used to create a low (sensor-/actuator level) or medium (process level) performance network of programmable logic controllers.
  • Page 25 Slave devices A PROFIBUS slave acquires data from peripheral equipment, sensors, actuators and t ransducers. The VIPA PROFIBUS couplers are modular slave devices that transfer data between the System 300V per iphery and the high-level master. In accordance with the PROFIBUS standards these devices have no bus-access rights.
  • Page 26 Manual VIPA System 300S Chapter 3 Deployment The bus t ransfer protocol provides two alternatives for the access to the Communication bus: Master communication is also referred to as token-passing procedure. The Master with token-passing procedure guarantees the accessibility of the bus. The...
  • Page 27 Manual VIPA System 300S Chapter 3 Deployment DP-V0 provides the basic f unctionality of DP, including cycle data Function exchange as w ell as st ation diagnostic, module diagnostic and channel- cyclic data related diagnostic. communication Data is transferred cyclically between the DP master and the DP slave by (DP-V0) means of transmit and receive buffers.
  • Page 28 Manual VIPA System 300S Chapter 3 Deployment To ensure that the data transfer is synchronized the bus cycle time should Bus cycle ≤ ≤ ≤ ≤ always be less than or equal to the DP cycle time. DP cycle The parameter min_slave_interval = 3ms is located in the GSD-file.
  • Page 29 Manual VIPA System 300S Chapter 3 Deployment The key feature of version DP-V1 is the extended function for acyclic data Function communication. This forms the requirement for parameterization and Acyclic data calibration of the field devices over the bus dur ing runtime and for the communication introduction of confirmed interrupt messages.
  • Page 30 Manual VIPA System 300S Chapter 3 Deployment When addressing data, PROFIBUS assumes that the physical structure of Addressing with the slaves is modular or it can be st ructured internally in log ical functional Slot and Index units, so-called modules. This model is also used in t he basic DP functions...
  • Page 31 Manual VIPA System 300S Chapter 3 Deployment For the deployment of the DP-V1 services you have to take care that your Services CPU supports DP-V1 communication. More detailed information about this Acyclic data is to be found in the description of your CPU. The following system function...
  • Page 32 Addressing must be an unique number in the bus sy stem between 1 and 99. The address of the VIPA PROFIBUS coupler is set by the addressing switch located on the front of the module. The GSD files may be found at www.vipa.com at the "Service" part.

  • Page 33: Project Engineering

    • Start your project engineering tool with a new project. • Configure a master system and create a new PROFIBUS subnet. • For the project engineering of the IM 353-1DP01 take the "VIPA 353- 1DP01 (DPV0)" or "VIPA 353-1DP01 (DPV1)" for each functionality from the hardware catalog and drag it to the DP master subnet.
  • Page 34 Manual VIPA System 300S Chapter 3 Deployment Note Please note to place the following modules during hardware configuration to the first three slots: Config for Slot1 Config for Slot2 Config for Slot3 These modules are automatically placed using the Siemens SIMATIC...
  • Page 35 Manual VIPA System 300S Chapter 3 Deployment At usage of the IM 353-1DP01 (DP-V1) you have the following parameter Parameter data data: IM 353-1DP01 DP-V1 Byte Bit 7 ... Bit 0 Default Bit 2 ... 0: 0 (fix) Bit 3: 0 = WD-Timebase 10ms...

  • Page 36: Dp-V1 Services

    Using the following record set no. as Index you get access for reading (R) res. writing (W) to the listed DP slave elements: Index Access Description Device name as ASCII code (VIPA 353-1DP01) Hardware Version as ASCII code (V1.00) Software Version as ASCII code (V1.00) Serial number of the device as ASCII code (e.g.
  • Page 37 Manual VIPA System 300S Chapter 3 Deployment Via the index A4h, the module configuration of DP slave can be monitored. Device The assignment identification to module type can be found at the following configuration table: Module type Identification Input byte...

  • Page 38: Dp-V1 - I&M Data

    Manual VIPA System 300S Chapter 3 Deployment DP-V1 - I&M data Identification and maintenance data (I&M) are stored information in a Overview module which support you at: • check of the system configuration • discover of hardware changes • remove errors in a system Identification data (I data) are information of the module e.g.
  • Page 39 Manual VIPA System 300S Chapter 3 Deployment ... continue I&M data Access Preset Explanation SOFTWARE_REVISION read (4byte) Firmware version Firmware version of the module. Vxyz An increase of the firmware version also increases the hardware revision REVISION_COUNTER read (2byte) 0000h...

  • Page 40: Profibus Installation Guidelines

    Manual VIPA System 300S Chapter 3 Deployment PROFIBUS installation guidelines • A PROFIBUS DP network may only be built up in linear structure. PROFIBUS in general • PROFIBUS DP consists of minimum one seg ment with at least one master and one slave.
  • Page 41 In PROFIBUS all participants are wired parallel. For that purpose, the bus bus connector cable must be feed-through. Via the order number VIPA 972-0DP10 you may order the bus connector "EasyConn". This is a bus connector with switchable terminating resistor and integrated bus diagnostic.
  • Page 42 A ( EN50170). Starting with release 5 you also can use highly flexible bus cable: Lapp Kabel order no.: 2170222, 2170822, 2170322. With the order no. 905-6AA00 VIPA offers the "EasyStrip" de-isolating tool that makes the connection of the EasyConn much easier.

  • Page 43: Commissioning

    Configure your PROFIBUS master in your master system. You can use the Configuration in WinNCS of VIPA for this purpose ore the Siemens hardware configurator. the master system At the PROFIBUS slave modules, you set the PROFIBUS address that you Addressing assigned at project engineering.
  • Page 44 Manual VIPA System 300S Chapter 3 Deployment After power on, the DP slav e executes a self test. It controls its internal Start-up functions and the communication via the backplane bus. After the error free behavior IM start-up, the bus coupler switches into the state "ready". In this state, the...

  • Page 45: Diagnostic Functions

    Additionally in the DP-V1 slave from VIPA the last 100 interrupt messages are stored in a RAM res. in t he flash with a time stamp and may be evaluated with a software.
  • Page 46 Manual VIPA System 300S Chapter 3 Deployment The diagnostic messages that are created by the PROFIBUS slave have, Structure of the depending on the parameterization, a length of 58Byte. 353-1DP01 As soon as the PROFIBUS slave sends a diag nostic to the master, the diagnostic data max.
  • Page 47 Manual VIPA System 300S Chapter 3 Deployment Via the Identifier-related diagnostic you gain information at which plug-in Identifier-related location (module) an error has occurred. diagnostic More detailed information about the error is available via the Module state and the channel-related diagnostic.
  • Page 48 Manual VIPA System 300S Chapter 3 Deployment The module status gives you detailed information about the error that Module status occurred at a module. The module status can be act ivated via the parameterization and has the following structure: Module status Byte Bit 7 ...
  • Page 49 Manual VIPA System 300S Chapter 3 Deployment With the channel-related diagnostic you gain detailed information about the Channel-related channel error within a m odule. For the usage of the channel-related Diagnostic diagnostic you have to release the diagnostic interrupt for every module via the parameterization.
  • Page 50 Manual VIPA System 300S Chapter 3 Deployment The interrupt section of the slave diagnostic shows informations about Interrupts interrupt type and cause. It consists of max. 20Byte. For every slave diagnostic max. 1 interrupt can be send. The interrupt section is always the last part of the diagnostic telegram if activated it in the parameterization.
  • Page 51 Manual VIPA System 300S Chapter 3 Deployment Interrupt status at diagnostic interrupt Bytes x+4 to x+7 (corresponds CPU diagnostic record set 0) Byte Bit 7 ... Bit 0 Bit 0: Module malfunction, i.e. a problem has been detected Bit 1: Internal error in the module...
  • Page 52 Manual VIPA System 300S Chapter 3 Deployment … continue Interrupt status at diagnostic interrupt Bytes x+8 to x+19 (corresponds to CPU diagnostic record set 1) Byte Bit 7 ... Bit 0 70h: Module with digital inputs 71h: Module with analog inputs...
