Worksurface Power - EC26
Under Surface Power - EC27
Notice To Installers: Failure to comply with installation instructions will compromise the safety, durability and performance of this product, which may risk injury to the user of this
product and/or diminish the product life cycle. Jasper Group assumes no liability in these instances.
jsifurniture.com
812.482.3204
800.457.4511
812.482.1548

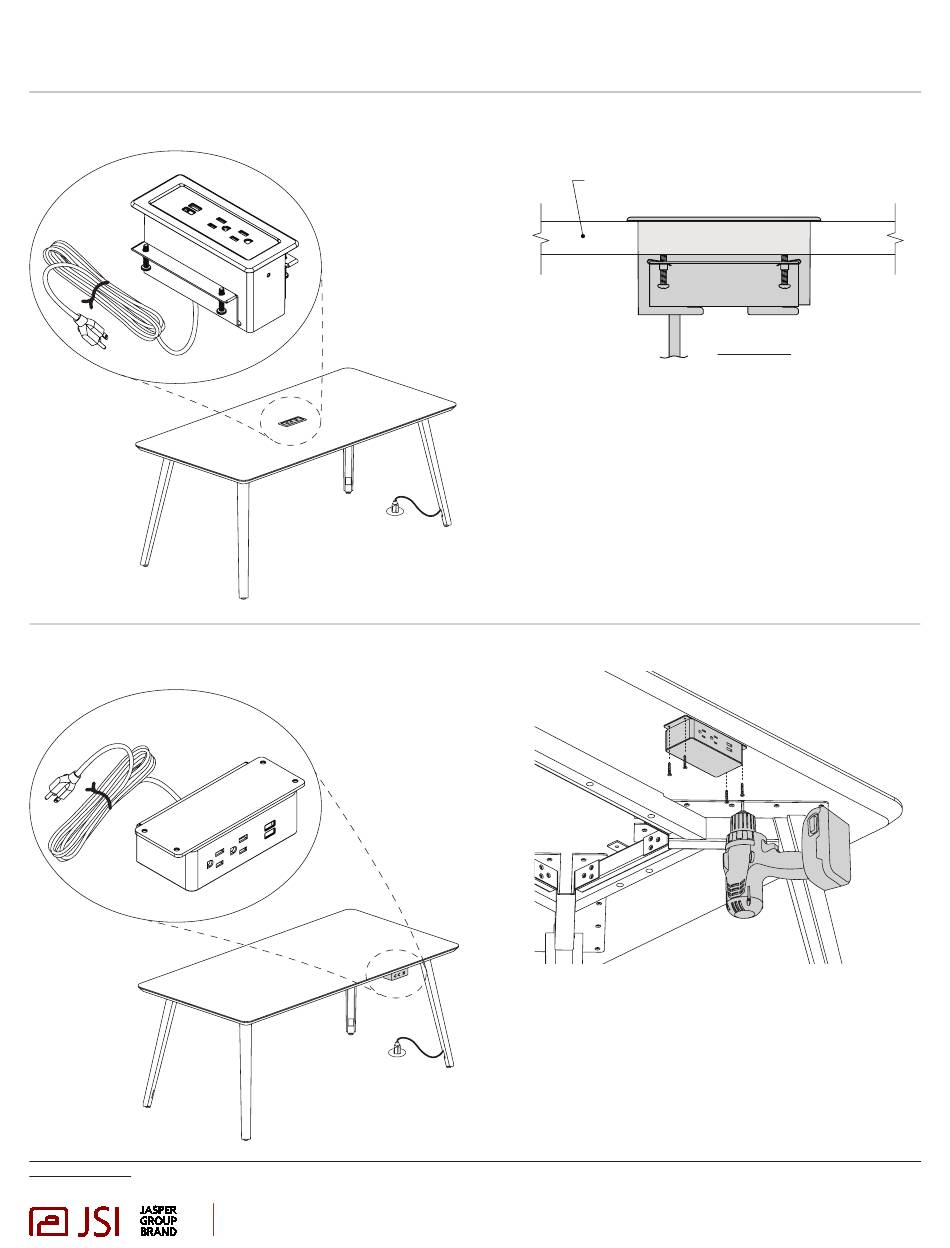

Worksurface
• Remove clamping bracket from power unit.
• From top side of table, feed power cord through
cutout in worksurface and lower unit onto surface.
• Reattach clamping bracket from underside of table,
tighten four screws firmly.
• Locate center of table.
• Position power unit in center of table from
right to left and offset front of power unit back
from front edge of table.
• Mount using four supplied screws.
225 Clay Street / PO Box 231
O
Jasper, Indiana 47546
F
Installation Instructions
Side View
Page 1 of 2
Electrical
1
"
/
8
Form No. INST-BU007
5/1/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for JSI Bourne
Summary of Contents for JSI Bourne
-
Page 1: Installation Instructions
Installation Instructions Bourne Page 1 of 2 Worksurface Power - EC26 Electrical Worksurface Side View • Remove clamping bracket from power unit. • From top side of table, feed power cord through cutout in worksurface and lower unit onto surface. - Page 2 Bourne Page 2 of 2 Wire Management Electrical • Bourne tables with metal legs are designed (continued) to route and conceal cords down to floor. • The Leg Cap will need to be removed in which the cord will be routed. See illustrations below.
