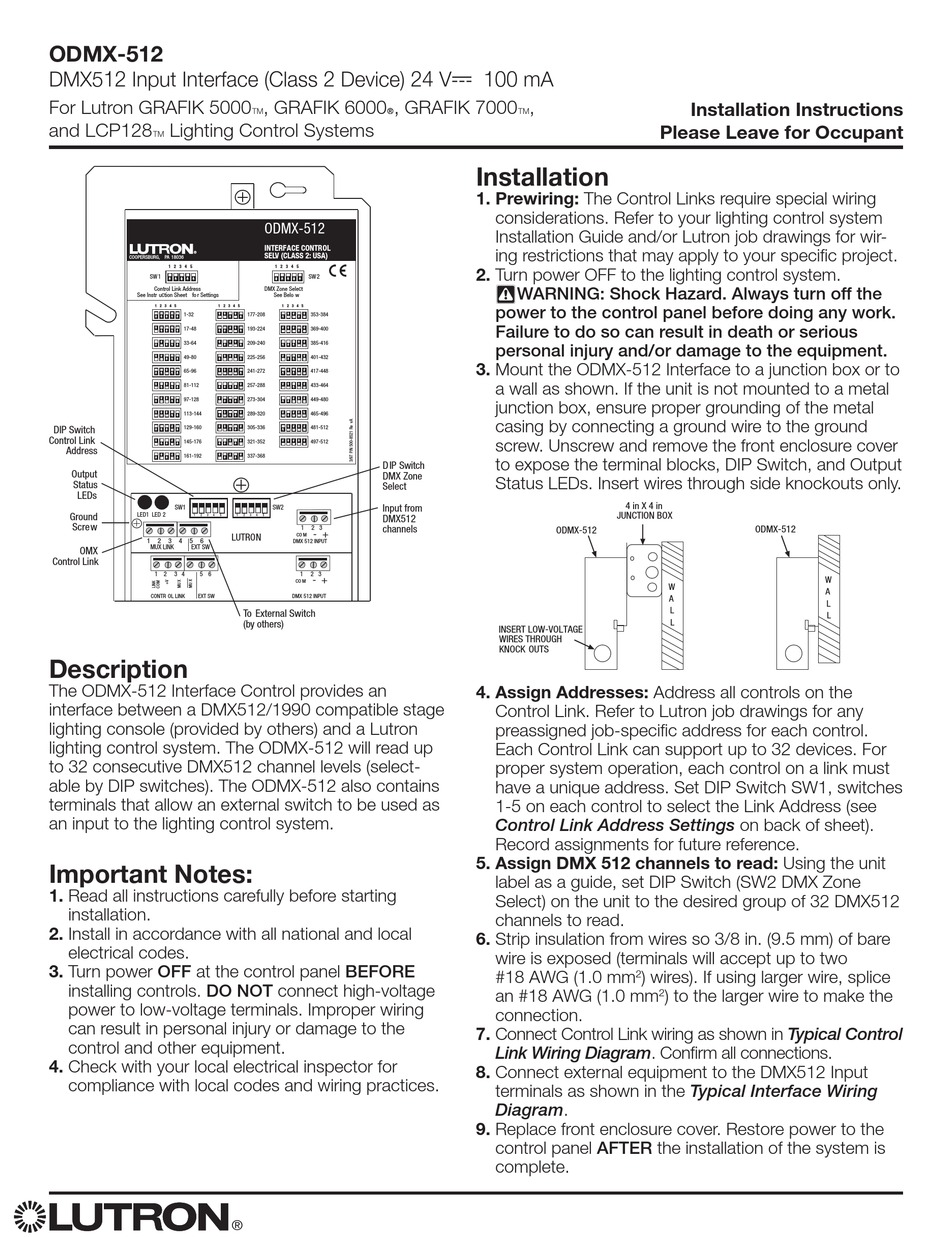

Lutron Electronics ODMX-512 Installation Instructions
Lutron Electronics ODMX-512 Installation Instructions

Lutron Electronics ODMX-512 Installation Instructions

Dmx512 input interface (class 2 device)

Advertisement

Quick Links

ODMX-512
DMX512 Input Interface (Class 2 Device) 24 V- 100 mA
For Lutron GRAFIK 5000T, GRAFIK 6000R, GRAFIK 7000T,
and LCP128T Lighting Control Systems
COOPERSBURG, PA 18036
1 2 3 4 5
SW 1
Control Link Address
See Instr uction Sheet fo r Settings
1 2 3 4 5
1 2 3 4 5
1-32
17-48
33-64
49-80
65-96
81-112
97-128
113-144
129-160
DIP Switch
Control Link
145-176
Address
161-192
Output
Status
LEDs
SW1
LED1 LED 2
Ground
1
2
3
4
5
Screw
1
2
3
4
5
6
MUX LINK
EXT SW
OMX
Control Link
1 2
3 4
5 6
CONTR OL LINK
EXT SW
Description
The ODMX-512 Interface Control provides an
interface between a DMX512/1990 compatible stage
lighting console (provided by others) and a Lutron
lighting control system. The ODMX-512 will read up
to 32 consecutive DMX512 channel levels (select-
able by DIP switches). The ODMX-512 also contains
terminals that allow an external switch to be used as
an input to the lighting control system.

Important Notes:

1. Read all instructions carefully before starting
installation.
2. Install in accordance with all national and local
electrical codes.
3. Turn power OFF at the control panel BEFORE
installing controls. DO NOT connect high-voltage
power to low-voltage terminals. Improper wiring
can result in personal injury or damage to the
control and other equipment.
4. Check with your local electrical inspector for
compliance with local codes and wiring practices.
ODMX-512
OMX-RS232
INTERFACE CONTROL
SELV (CLASS 2: USA)
1 2 3 4 5
SW 2
DMX Zone Select
See Belo w
1 2 3 4 5
177-208
353-384
193-224
369-400
209-240
385-416
225-256
401-432
241-272
417-448
257-288
433-464
273-304
449-480
289-320
465-496
305-336
481-512
321-352
497-512
337-368
DIP Switch
DMX Zone
Select
Input from
SW2
1
2
3
4
5
DMX512
1
2 3
channels
-
+
CO M
LUTRON
DMX 512 INPUT
1
2 3
-
+
CO M
DMX 512 INPUT
To External Switch
(by others)
®
Installation
1. Prewiring: The Control Links require special wiring
considerations. Refer to your lighting control system
Installation Guide and/or Lutron job drawings for wir-
ing restrictions that may apply to your specifi c project.
2. Turn power OFF to the lighting control system.
!
WARNING: Shock Hazard. Always turn off the
power to the control panel before doing any work.
Failure to do so can result in death or serious
personal injury and/or damage to the equipment.
3. Mount the ODMX-512 Interface to a junction box or to
a wall as shown. If the unit is not mounted to a metal
junction box, ensure proper grounding of the metal
casing by connecting a ground wire to the ground
screw. Unscrew and remove the front enclosure cover
to expose the terminal blocks, DIP Switch, and Output
Status LEDs. Insert wires through side knockouts only.
4 in X 4 in
JUNCTION BOX
ODMX-512
INSERT LOW-VOLTAGE
WIRES THROUGH
KNOCK OUTS
4. Assign Addresses: Address all controls on the
Control Link. Refer to Lutron job drawings for any
preassigned job-specifi c address for each control.
Each Control Link can support up to 32 devices. For
proper system operation, each control on a link must
have a unique address. Set DIP Switch SW1, switches
1-5 on each control to select the Link Address (see
Control Link Address Settings on back of sheet).
Record assignments for future reference.
5. Assign DMX 512 channels to read: Using the unit
label as a guide, set DIP Switch (SW2 DMX Zone
Select) on the unit to the desired group of 32 DMX512
channels to read.
6. Strip insulation from wires so 3/8 in. (9.5 mm) of bare
wire is exposed (terminals will accept up to two
2
#18 AWG (1.0 mm
) wires). If using larger wire, splice
an #18 AWG (1.0 mm
connection.
7. Connect Control Link wiring as shown in Typical Control
Link Wiring Diagram. Confi rm all connections.
8. Connect external equipment to the DMX512 Input
terminals as shown in the Typical Interface Wiring
Diagram.
9. Replace front enclosure cover. Restore power to the
control panel AFTER the installation of the system is
complete.
Installation Instructions
Please Leave for Occupant
ODMX-512
W
W
A
A
L
L
L
L
2
) to the larger wire to make the
