Peak PCAN-Router Pro FD User Manual page 23

PCAN-Router Pro FD – User Manual
6. Enter the main directory of the respective example (here
01_Routing) from the folder 424_Examples as the
Location.
7. Open the makefile project folder in the Project type list.
8. Select Empty Project.
Toolchains are now available in the right list.
9. Select ARM Cross GCC as the toolchain.

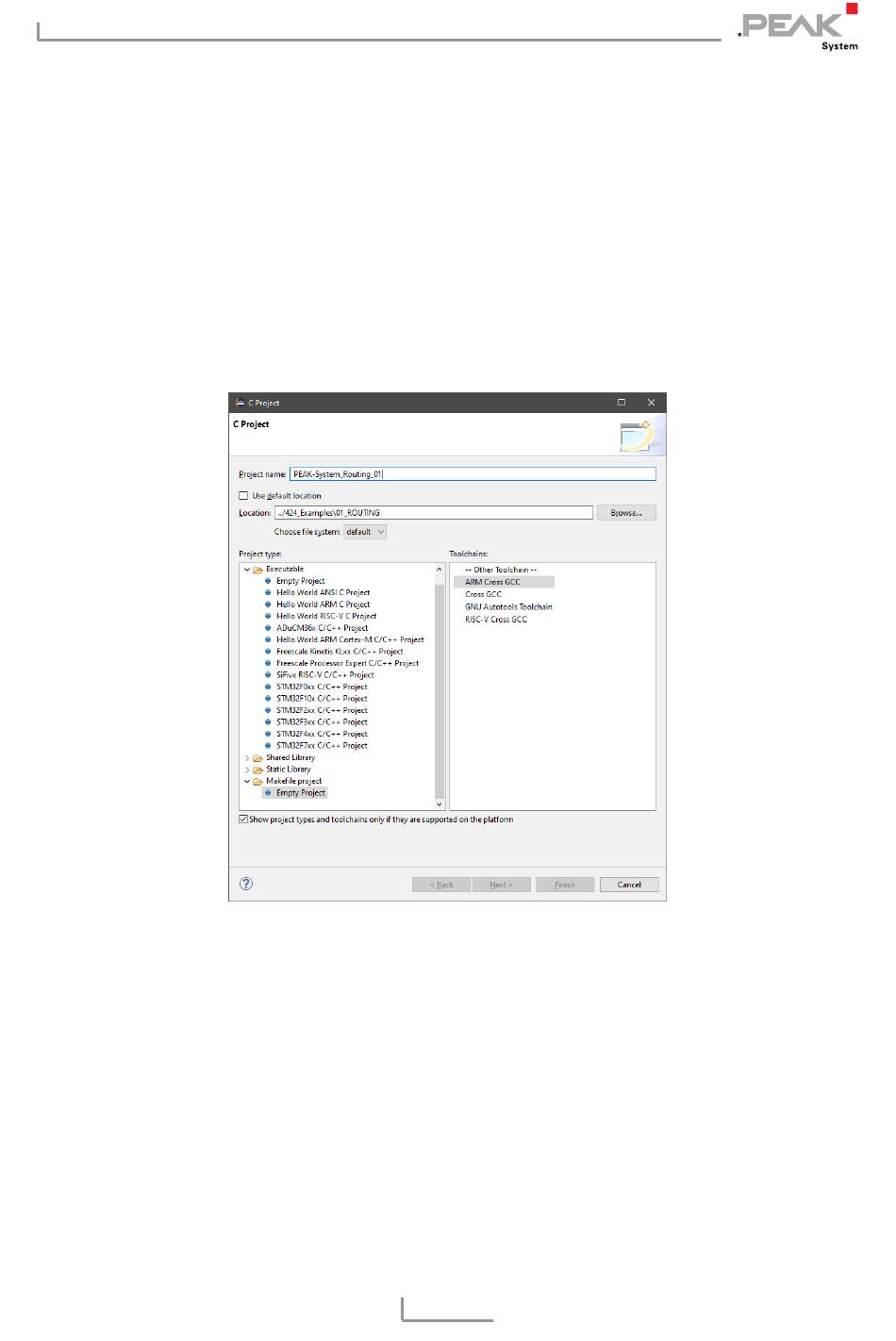

Figure 11: Enter the path (../424_examples/01_Routing)
10. Press the Next button twice.
11. Use the preselected Toolchain path.
of the example in the Location field.
23
