PCAN-Router Pro FD – User Manual

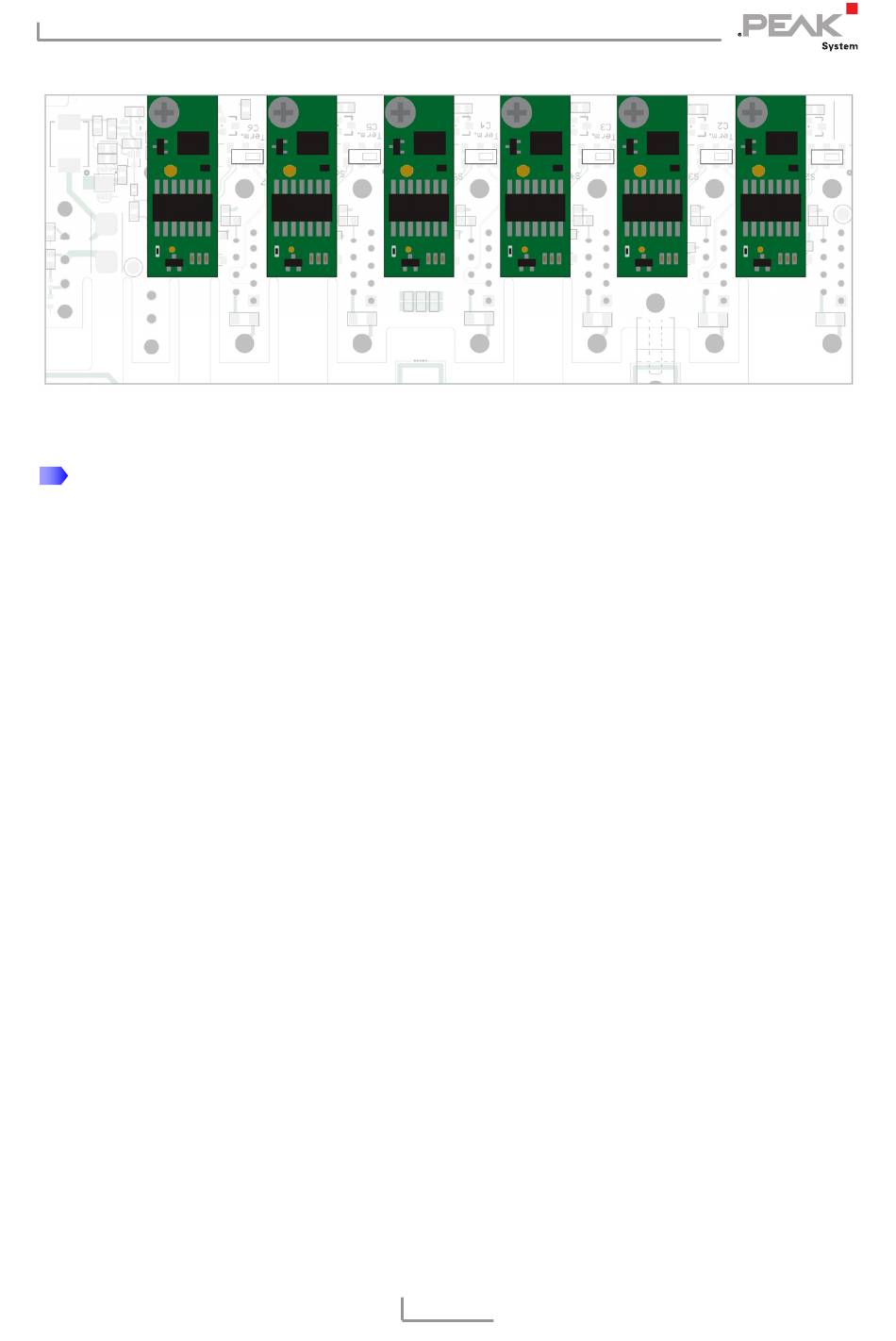

Figure 6: Positions of the transceiver modules for the six CAN FD channels
Do the following to change a transceiver module:
1. Disconnect the device from the power supply.
2. Remove the two upper screws on the front and back of the
housing.
3. BroadR-Reach® interface only:
Remove the mounting screws of the D-Sub connector on the
back of the housing.
4. Pull out the housing cover.
5. Only with backup battery installed:
Remove the backup battery.
6. Remove the screw on the board from the transceiver
module to be replaced.
7. Remove the module from the front panel slot.
8. Plug the new transceiver module into the slot.
9. Fasten the module again with the screw.
10. Only with backup battery installed:
Reinstall the backup battery and secure it with a cable tie.
11. Insert the housing cover.
12. Fasten the four screws to the front and rear of the housing.
