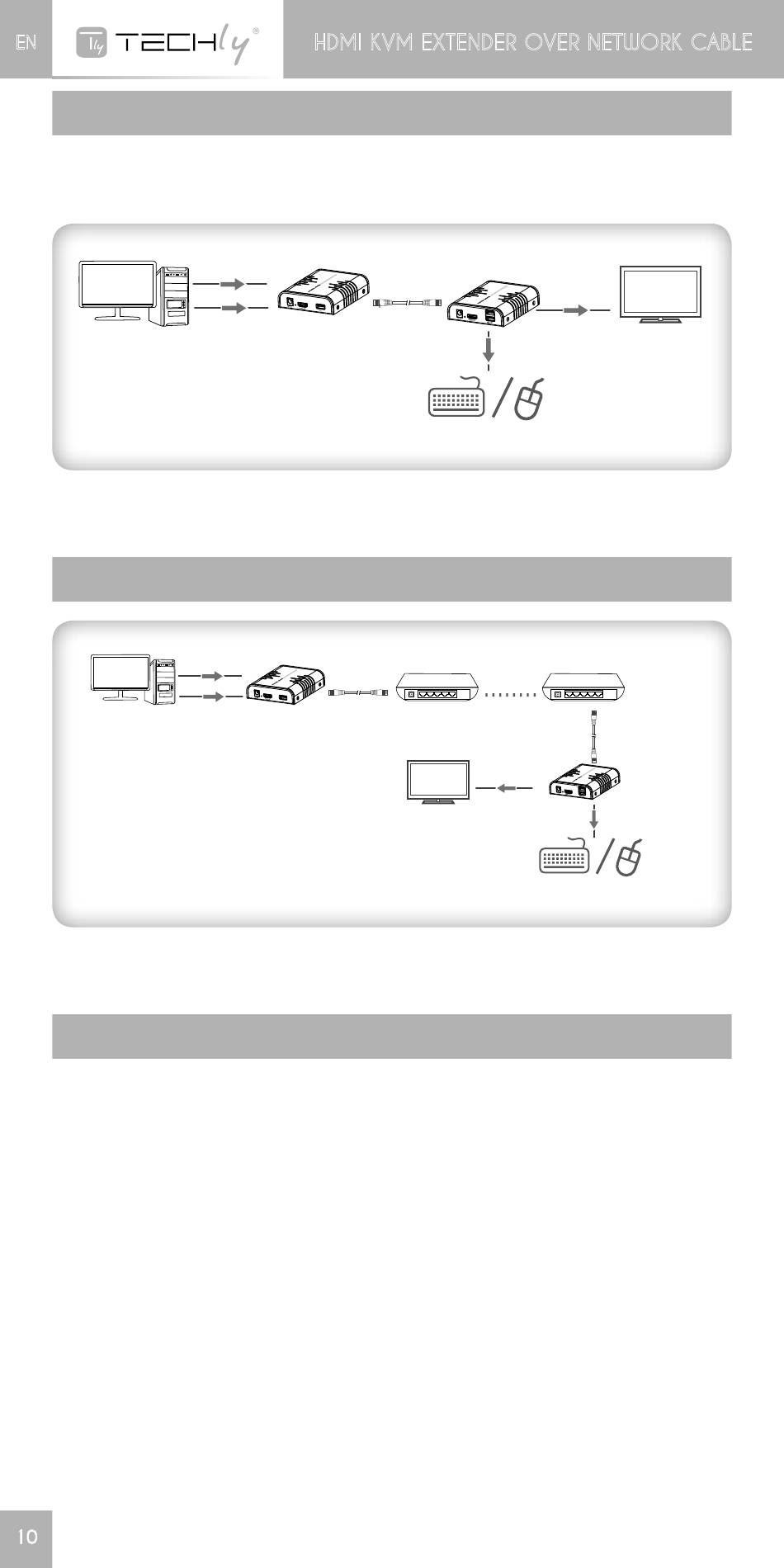

gENERaL coNNEcTIoN

Transmission distance can be up to 120 meters for 1080p over one
Cat6.
PC
NoTE: connection via switch (reserved for this use) is supported but
it strongly recommended to use one receiver only at the same time.

swITcH coNNEcTIoN

PC
NoTE: Transmission distance depends on type of network cable
Cat.5E -> 100m; Cat6 -> 120m
Faq
q: Yellow light of Lan port is flashing but slowly?
a: 1) Check whether HDMI Extender Transmitter and HDMI Extender
Receiver is reversed
2) Check whether HDMI source device output HDMI signal
correctly
3) Check the HDMI cable of transmitter
q: Y ellow light of Lan port is flashing quickly but no display?
a: 1) Check whether HDMI cable of Receiver is well connected
2) If the HDMI source is graphic card, please set the resolution to
be supported by display
3) Change the HDMI cable of receiver
q: Yellow Led light of Lan port is not light?
a: 1) Check connection of network cable
2) Network cable is too long
10
HDMI KVM EXTENDER OVER NETWORK CABLE
Tran sm it t er T X
H D M I
USB
Tran sm it t er T X
H D M I
cab le
USB
Receiv er RX
cable
key b oard / m o u se
Switch*N
Switch
T V
T V
Receiv er RX
key b oard / m o u se
