Summary of Contents for CyberView S119

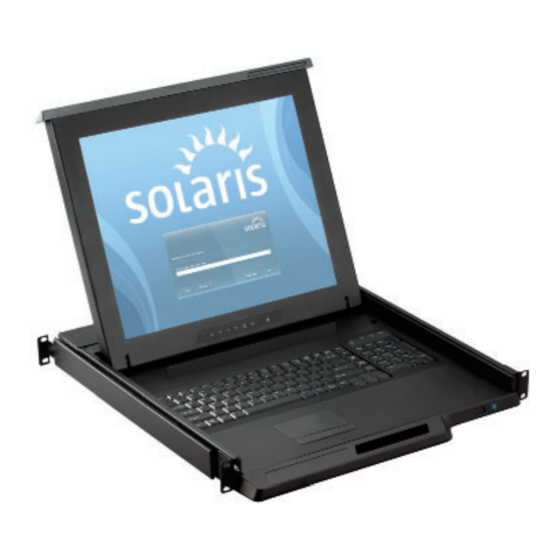

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” LCD 1152 x 900 Native Resolution S117 / S119 1U SUN LCD Console Drawer Options : - DC power Designed and manufactured by Austin Hughes UM-CV-751-S117-Q419V2 www.austin-hughes.com...
- Page 2 Legal Information First English printing, December 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > S117 / S119 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifi cations / OSD Product Specifi cations P.8 - 9 Keyboard / Mouse Specifi cations P.10 - 11... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content S117 / S119 S117 or S119 unit X 1 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut &... - Page 6 36.5 lb 441.6 x 500 x 44 mm 590 x 808 x 140 mm 12.7 kg 17.3 kg S119 17.4 x 19.7 x 1.73 inch 23.2 x 31.8 x 5.5 inch 27.9 lb 38.1 lb The weight is only for the single console models. It varies with accessories & options such as KVM &...
-
Page 7: Installation
< 1.3 > Installation - Installation Slides S117 / S119 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. - Page 8 < 1.3 > Installation - ORB-2.1 2-Post Rack Mounting Brackets ( Option ) Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
- Page 9 < 1.3 > Installation- How to use the drawer S117 / S119 ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-S117-Q419V2 www.austin-hughes.com...
- Page 10 < 1.4 > Connection to USB Server via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D console cable USB server DVI-D < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D...
- Page 11 < 1.4 > Connection to USB Server via CB-6A cable S117 / S119 LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER...
-
Page 12: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations S117 S119 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD 1152 x 900 ( Direct ) 1152 x 900 ( Direct ) Display pixel ( dots x lines ) - Page 13 S117 / S119 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random...
-
Page 14: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■... - Page 15 < 2.2 > Keyboard / Mouse Specifi cations S117 / S119 How to Use "S" Keyboard Num LED in Off mode Num LED in Green mode Key pad behaves as a SUN Solar Key pad behaves as a normal key...
-
Page 16: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 17 < 2.3 > On-screen Display Operation ( OSD ) S117 / S119 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video:...
-
Page 18: Part. 3 > Options
( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) S117 depth will be extended from 460mm ( 18.1” ) to 530mm ( 20.9” ) ( 4 ) S119 depth will be extended from 500mm ( 19.7” ) to 570mm ( 22.4” ) UM-CV-751-S117-Q419V2 P.14... - Page 19 < Part. 4 > KVM Integration S117 / S119 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2019 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-S117-Q419V2 www.austin-hughes.com...
