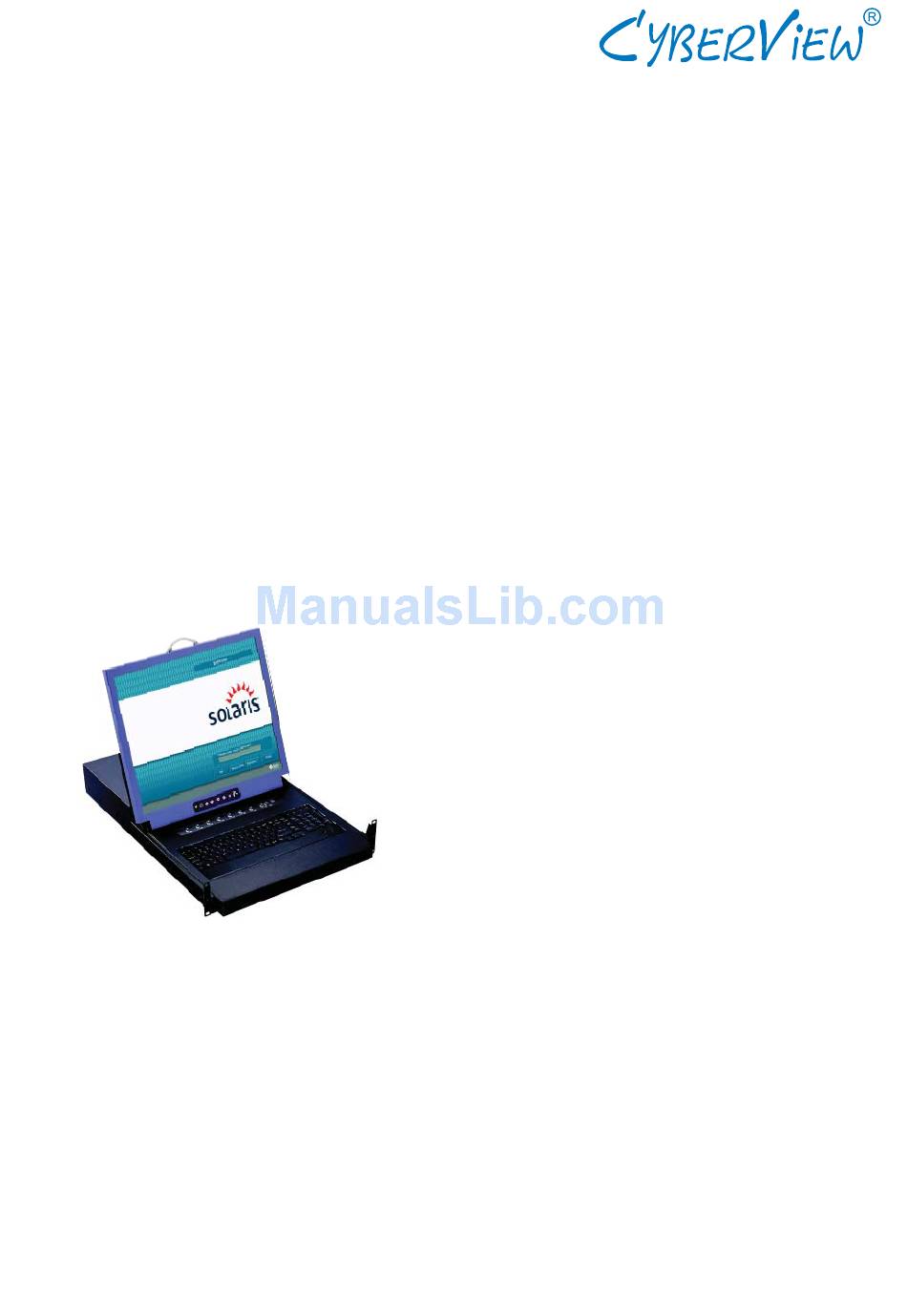

- Page 1 User Manual 2U LCD Keyboard Drawer S220 - With KVM options - 20" screen size - Ultra high resolution 1600 x 1200 - Designed for SUN Solaris...
-
Page 2: Table Of Contents
Contents Chapter 1 Getting Started Important Safeguards............1 Regulatory Notice..............2 Package Contents...............3 Before Installation...............4 Unpacking................4 Optional Accessories............4 Peripheral Products.............5 Structure Diagram...............5 Installation................6 1.10 Connect to Server via USB Interface........7 1.11 Connect to KVM via USB Interface........7 Chapter 2 Operation On-screen Display Operation..........8 On-screen Menu.............9-10 Chapter 3 Standard Specifi... -
Page 3: Important Safeguards
Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■... -
Page 4: Regulatory Notice
Chapter 1 1.2 Regulatory Notice Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 5: Package Contents
Chapter 1 1.3 Package Contents LCD keyboard drawer x 1 pc Fasteners for rear L-bracket x 4 pcs 330mm rear mounting L-bracket x 1 pair * mounting depth-adjustable from 310 to 880mm CB-6 2-in-1 USB KVM cable x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter (for external power version) x 1pc... -
Page 6: Before Installation
Chapter 1 1.4 Before Installation ■ It is very important to locate the LCD Keyboard Drawer in a suitable environment. ■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable cabinet. ■... -
Page 7: Peripheral Products
Chapter 1 1.7 Peripheral Products Item Model No. Description CV-S801 / CV-S1601 8 / 16-port USB KVM DB-15 KVM UIP-1602 / UIP-3202 16 / 32-port IP Cat5 KVM U-1602 / U-3202 16 / 32-port two console Cat5 KVM Cat5 KVM U-1601 / U-3201 16 / 32-port high density Cat5 KVM 1.8 Structure Diagram... -
Page 8: Installation
Chapter 1 1.9 Installation ■ Install each rear L-bracket using two fasteners shown in Figure 1. ■ Leaving the fasteners slightly loose. Figure 1. Installing the rear L-bracket to the LCD keyboard drawer. ■ Measure the front and rear mounting depth of the rack. -
Page 9: Connect To Server Via Usb Interface
Chapter 1 1.10 Connect to Server via USB Interface Figure 4. Example of connecting CB-6 2-in-1 USB KVM cable to server via USB interface 1.11 Connect to KVM via USB Interface Figure 5. Example of connecting CB-6 2-in-1 USB KVM cable to KVM via USB interface Remarks ■... -
Page 10: On-Screen Display Operation
Chapter 2 2.1 On-screen Display Operation LCD membrane Membrane Switch Function Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressing the button for 5 seconds Toggle analog, digital &... -
Page 11: On-Screen Menu
Chapter 2 2.2 On-screen Menu Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue: Adjust the screen hue value Geometry... - Page 12 Chapter 2 2.2 On-screen Menu Display mode Main menu Sub menu S-Video √ √ √ √ Brightness √ √ √ √ Contrast √ √ √ √ Image Sharpness √ √ Saturation √ √ √ Auto Confi g √ H. Position √...
-
Page 13: Specifi Cations
Chapter 3 3.1 Specifi cations Item Description 1U rack mounting on slide-out rails Form Factor LCD Manufacturer 20" TFT Diagonal Size 1152 x 900 (Direct) Resolution 1600 x 1200 (Native) Brightness (cd/m²) 16.7 Mil. Color Support 800:1 Contrast Ratio (typ.) 160˚... -
Page 14: Keyboard & Mouse
Chapter 3 3.2 Keyboard & Mouse Supporting layouts only S keyboard integrated with trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■ US layout only ■... -
Page 15: How To Use "S" Keyboard
Chapter 3 3.3 How to Use "S" Keyboard ■ SUN-compatible keyboard incorporates SUN short-cut keys. ■ Press the Fn/Num button to switch the color the Num LED. Num LED in Blue mode Num LED in Green color Key pad behaves as a SUN Solaris system Key pad behaves as a normal key pad mode administration command mode Three Audio / Display keys are located in the upper-right corner of the keyboard:... -
Page 16: Kvm Options
Chapter 4 4.1 KVM Options Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions: ■ For KVM operation, please refer to "Integrated LCD KVM Switch" user manual ■ Option with high desnsity Cat5 KVM with either 16 or 32 ports ■... -
Page 17: S-Video + Bnc Input Option
Chapter 4 4.4 S-Video + BNC Input Option 3-in-1 VGA KB mouse Internal power version S-Video BNC console port External power version Remarks : ■ Package includes an extra 6ft S-Video cable 4.5 DC Power Options Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt... -
Page 18: Chapter 5 Troubleshooting
Chapter 5 5.1 Troubleshooting 1. How can I adjust the monitor resolution to 1152 x 900 for SUN Micro system ? The S solution LCD keyboard drawer will automatically detect the 1152 x 900 resolution, so no user confi guration should be necessary. -
Page 19: Chapter 6 Dimensions
(W x D x H) Weight Weight 442 x 650 x 88 mm 583 x 796 x 215 mm 20 kg 26 kg S220 series 17.4 x 25.9 x 3.5" 23 x 31.3 x 8.5" 44 lb 57 lb P.17... - Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Austin Hughes Electronics Ltd. All rights reserved. CV-S21-0308V4...
