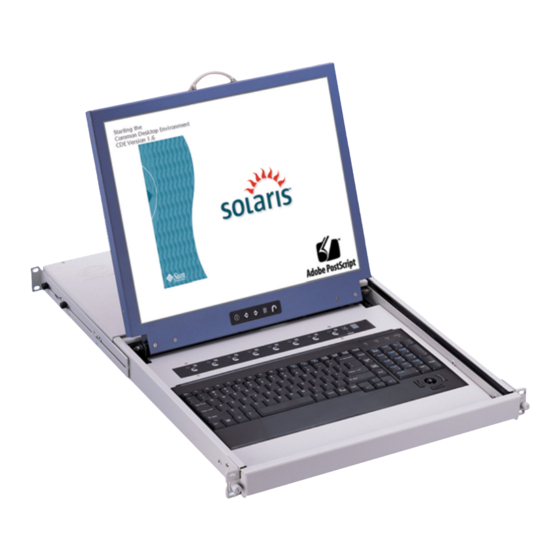

CyberView S117 Brochure

SUN Microsystems compatible
The LCD screen will sync with most SUN
resolution including 1152 x 900 @ 66 or 76Hz
17'' / 19'' TFT LCD Screen
Available in 2 LCD screen sizes, all in a 1U unit
Built in on screen display controlled by
integral membrane switches
Allows adjustment of color, contrast,
brightness, H Position, V position, Auto
Configure, OSD, etc
Unique modular mechanical design
Allows easy component level replacement
and provides a KVM migration path
Extended Slide rails provide clearance
distance between rack panel mounts and
the rear of the LCD Screen
Allows protruding equipment i.e. servers
and patch panels to be mounted directly
above the drawer, without interference
Slide rails have two friction stops to prevent
movement of the keyboard
Allowing comfortable working on unit
while maintaining safety
Available with notebook keyboard and
either trackball or touchpad mouse
FULL SUN Microsystems Keyboard
Including Stop, Cut, Paste, Compose etc
Informations supplémentarie: Daxten France - Email: info.fr@daxten.com - Tel.: +33 (0) 64 56 09 33
3-BUTTON TRACKBALL
All mounting hardware included
Allows simple, quick and secure installation
WITH KVM SWITCH:-
8 or 16 Port KVM
USB KVM switch options, cascade able
up to 128 servers
Built in integral KVM membrane switch
Allows user to chose server selection via
membrane button or 'hot' keys via OSD
Multiplatform
Provides instant switching between PC's,
SUN's, IBM's, HP's, Compaq, and DELL
platforms
Stay Alive Feature
Safeguards server for power loss to switch
Access Password Security
Supports eight character password
protection and search feature for specific
PC or server name
Auto Scan Mode
Monitor your servers at intervals 5-99
seconds, set by user
Supplied with 8 x 6 C series KVM
connecting cables
Supports good rear cable management
via the use of 8 x 3 in 1 KVM Cables
SUN KEYS
