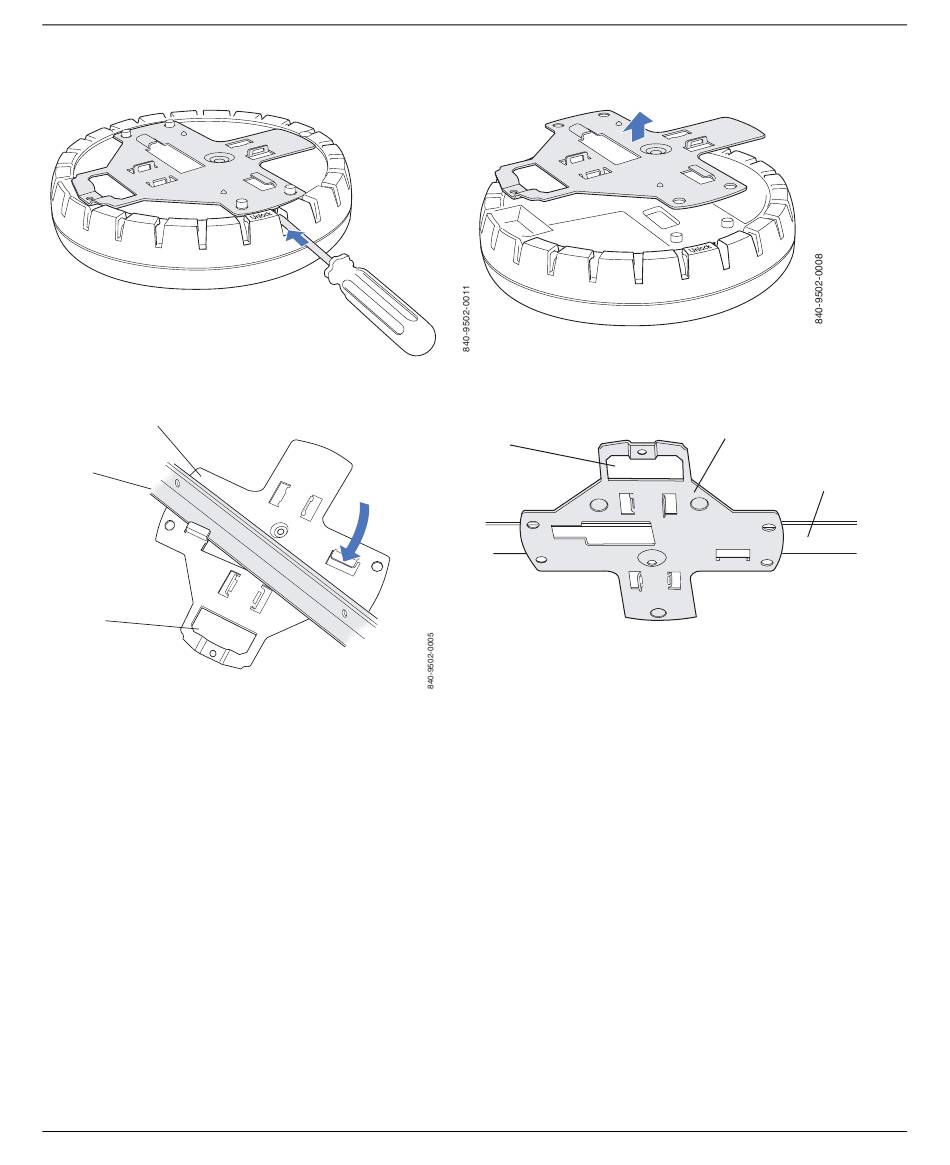

Use the mounting template to cut a hole for the CAT-5 Ethernet cable.
2
Remove the mounting bracket from the 2332 Series access point.
3
Attach the mounting bracket to the T-bar clamp.
Universal mounting
bracket
T-bar
Port connector
opening
(Viewed from above ceiling tiles, looking down.)
NN47250-308 (324137-C Version 02.02)
Port connector
opening
Universal mounting bracket
T-bar
