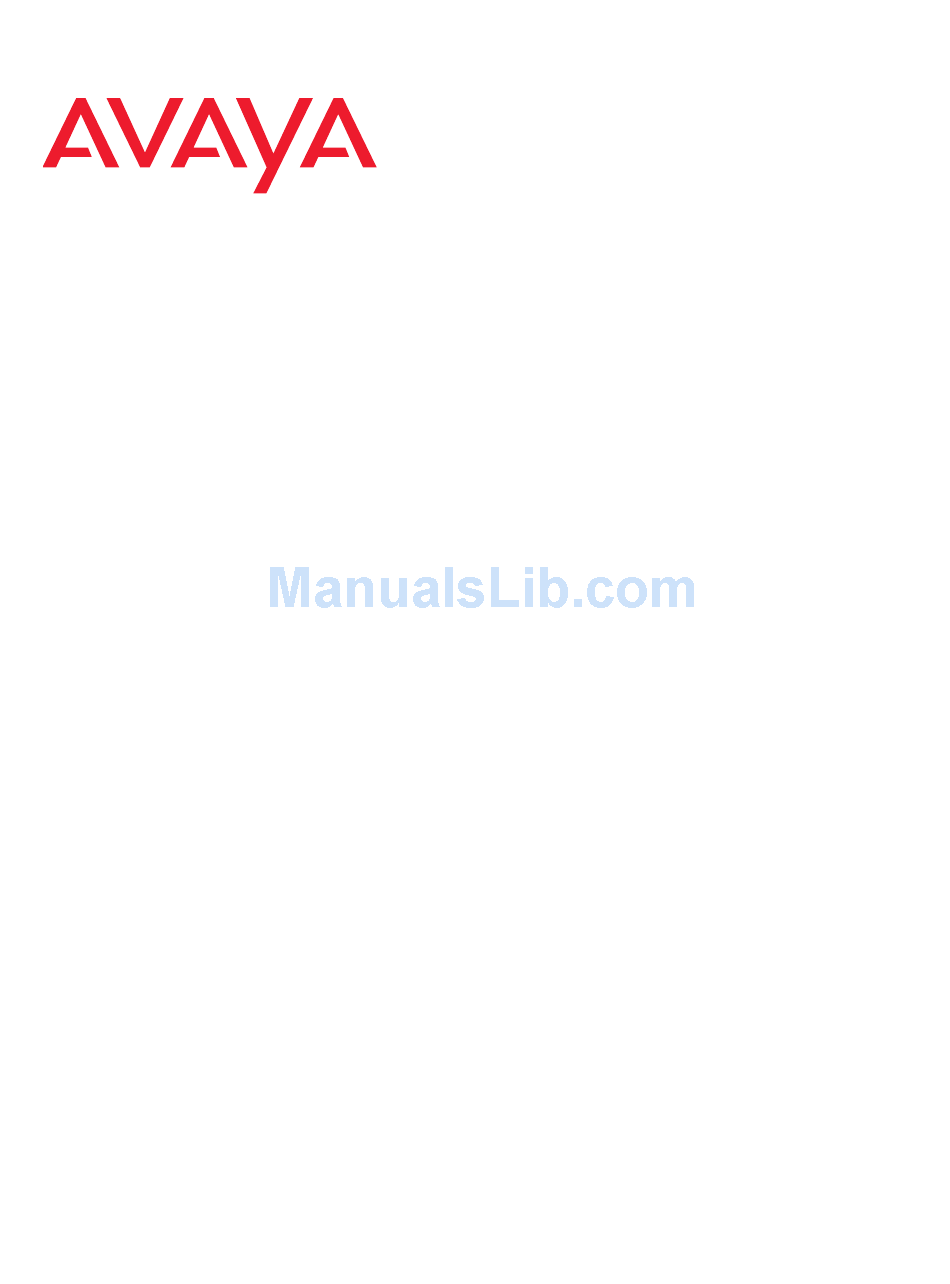

- Page 1 Installing the Avaya WLAN Outdoor Access Point WAO9122 Release 7.0 NN47252-300 Issue 01.01 June, 2014...
- Page 2 Documentation, Software, Hosted Service, or hardware provided by Avaya. All content on this site, the documentation, Hosted Service, and the Product provided by Avaya including the selection, arrangement and design of the content is owned either by Avaya or its licensors and is protected by copyright and other...
- Page 3 Avaya or such third party which may own the Mark. Nothing contained in this site, the Documentation, Hosted Service(s) and Product(s) should be construed as granting, by implication, estoppal, or otherwise, any license or right in and to the Marks without the express written permission of Avaya or the applicable third party.
-
Page 5: Quick Installation Guide
The WAO 9122 is not compatible with other Avaya mounting options. For additional information, refer to Using the Avaya Wireless Orchestration System (NN47252-103). - Page 6 Installing the Avaya WLAN Outdoor Access Point WAO9122 Choose a Suitable Location The WAO 9122 is tested to IP65 waterproof and dust-proof requirements to protect against severely wet and dusty environments. For optimal placement, we recommend that a predictive survey be performed by a qualified Avaya partner.
- Page 7 Mount the WAP on a Pole or Wall 5a - Pole Mounting For pole mounting, Avaya recommends using metal straps (not included with the WAP). The metal straps can be obtained from BAND-IT-IDEX, Inc. (www.BAND-IT-IDEX.com). See their web site for additional contact information. Complete the following steps to mount the WAP to...
- Page 8 Installing the Avaya WLAN Outdoor Access Point WAO9122 Install the metal bands through the holes in the mounting bracket. Note that the photos below show a different mounting bracket. The steps for installation are identical, however. Hand tighten the Band-It strap through the pole mounting bracket, thread it through the strap buckle and then bend the strap back.
- Page 9 Installing the Avaya WLAN Outdoor Access Point WAO9122 Using the built in cutting tool on the Band-It tool, cut the excess strap. Your installation should now appear as shown here. Using a hammer, bend back and flatten the remaining strap.
- Page 10 Installing the Avaya WLAN Outdoor Access Point WAO9122 5b - Wall Mounting Place the WAP in the desired location and mark the location of the two mounting holes on the wall, as shown. Drill and prepare the holes for the desired screw type. In...
-
Page 11: Install An Antenna
All WAO 9122 WAPs are powered directly via their Gigabit Ethernet connection. Power: These WAPs are only powered through the GIG PoE port. Only Avaya-supplied power injectors, or 802.3af or 802.3at PoE-compliant switches, may be used to power the WAO 9122. - Page 12 Installing the Avaya WLAN Outdoor Access Point WAO9122 The components of the connector are shown in the photo below in the order that they are placed onto the Ethernet cable, and also shown in more detail as a color-coded drawing.
- Page 13 Installing the Avaya WLAN Outdoor Access Point WAO9122 Snug all of the components together as shown, but leave the RJ45 connector protruding. Tighten the sealing nut lightly, making sure that the RJ45 connector is rotated so that it will seat easily in the connector body later.
-
Page 14: Connect The Antenna
Installing the Avaya WLAN Outdoor Access Point WAO9122 Connect the Antenna The WAO 9122 has four RP-TNC connectors for the antenna. RADIO1 ANT1 RADIO1 ANT2 RADIO2 ANT1 RADIO2 ANT2 Both of the AP's Radio1 cables (Radio1 ANT1 and Radio1 ANT2) must be attached to antenna leads for the same frequency band (for example, 2.4GHz), and Radio1 must be set to that band... -
Page 15: Zero-Touch Provisioning And Ongoing Management
Most customers employ the Wireless LAN Orchestration System (WOS) for the initial setup and continuing management of Avaya devices. WOS users can readily set up their new devices for zero-touch provisioning and ongoing maintenance via the following platforms. Wait five... -
Page 16: Mounting Bracket Dimensions
Installing the Avaya WLAN Outdoor Access Point WAO9122 Mounting Bracket Dimensions 3.2 in 8.1 cm 11.6 in 29.5 cm Customer Support Visit the Avaya Support website at https://support.avaya.com/ for the most up-to-date documentation, product notices, and knowledge articles. You can also search for release notes, downloads, and resolutions to issues.
