HEAT-SHRINKABLE CORE SEALER INSTALLATION INSTRUCTIONS
Use the heat-shrinkable core sealer with LBTV2-CT in place of the cold-applied core sealer shown in Step 12 on page 5.
A
WARNING: Fire Hazard. Heat guns or minitorches
can cause fire or explosion in hazardous areas. Be sure
there are no flammable materials or vapors in the area
before using these tools. Follow all site safety guidelines
when working in hazardous areas.

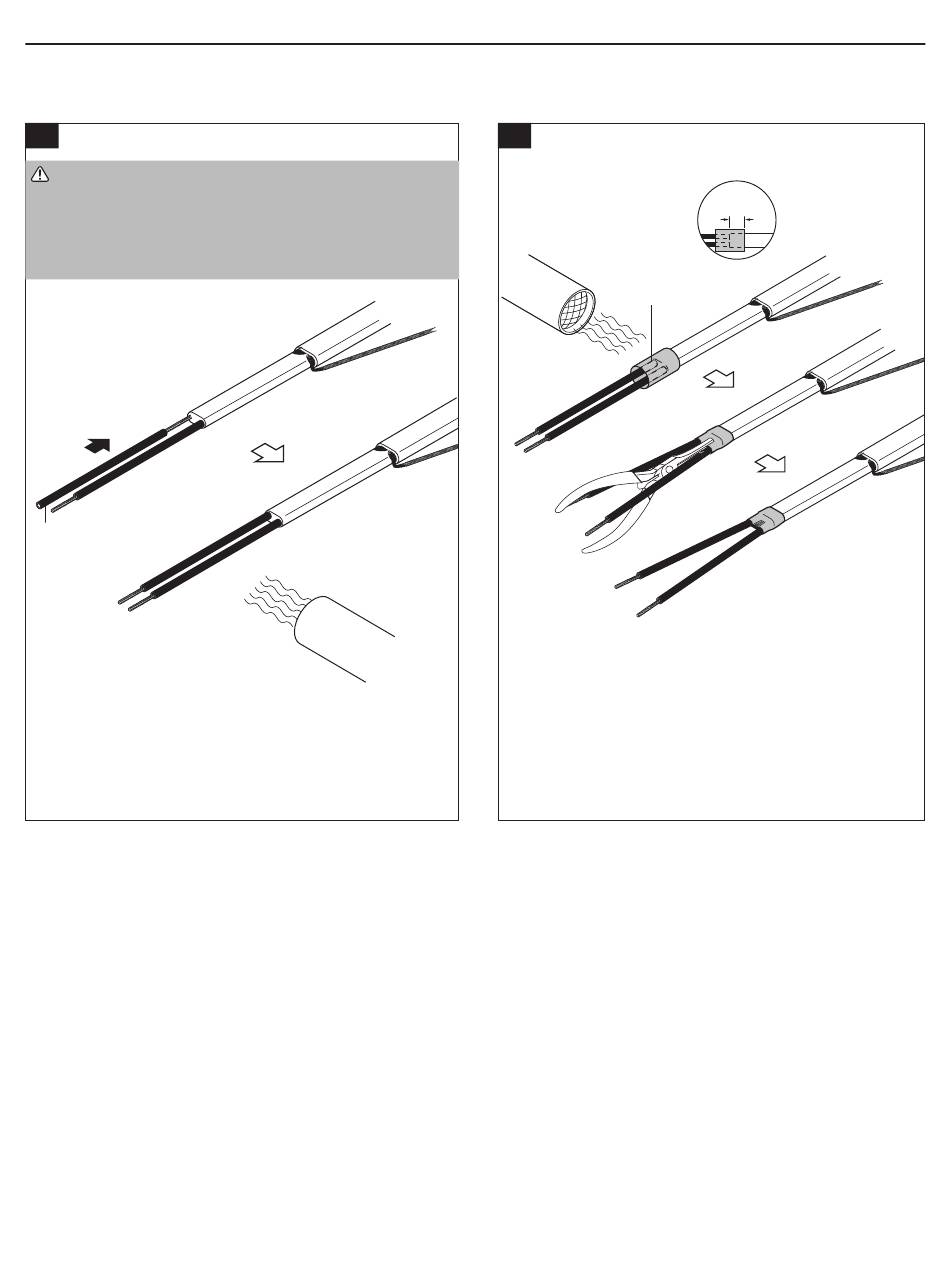

Black tubes
• Refer to material safety data sheet RAY3122.
• Slide on black heat-shrinkable tubes.
• Use heat gun or minitorch with soft yellow flame to
gently heat tubes until they shrink.
B
Clear yellow
tube
• Center clear yellow tube over end of inner jacket.
• Heat tube until it shrinks and adhesive flows out ends.
While still hot, immediately pinch between bus wires
and hold for 5 seconds to create a seal.
• Go to step 15 and continue with installation.
1/2 in.
(13 mm)
