RayClic Connection System

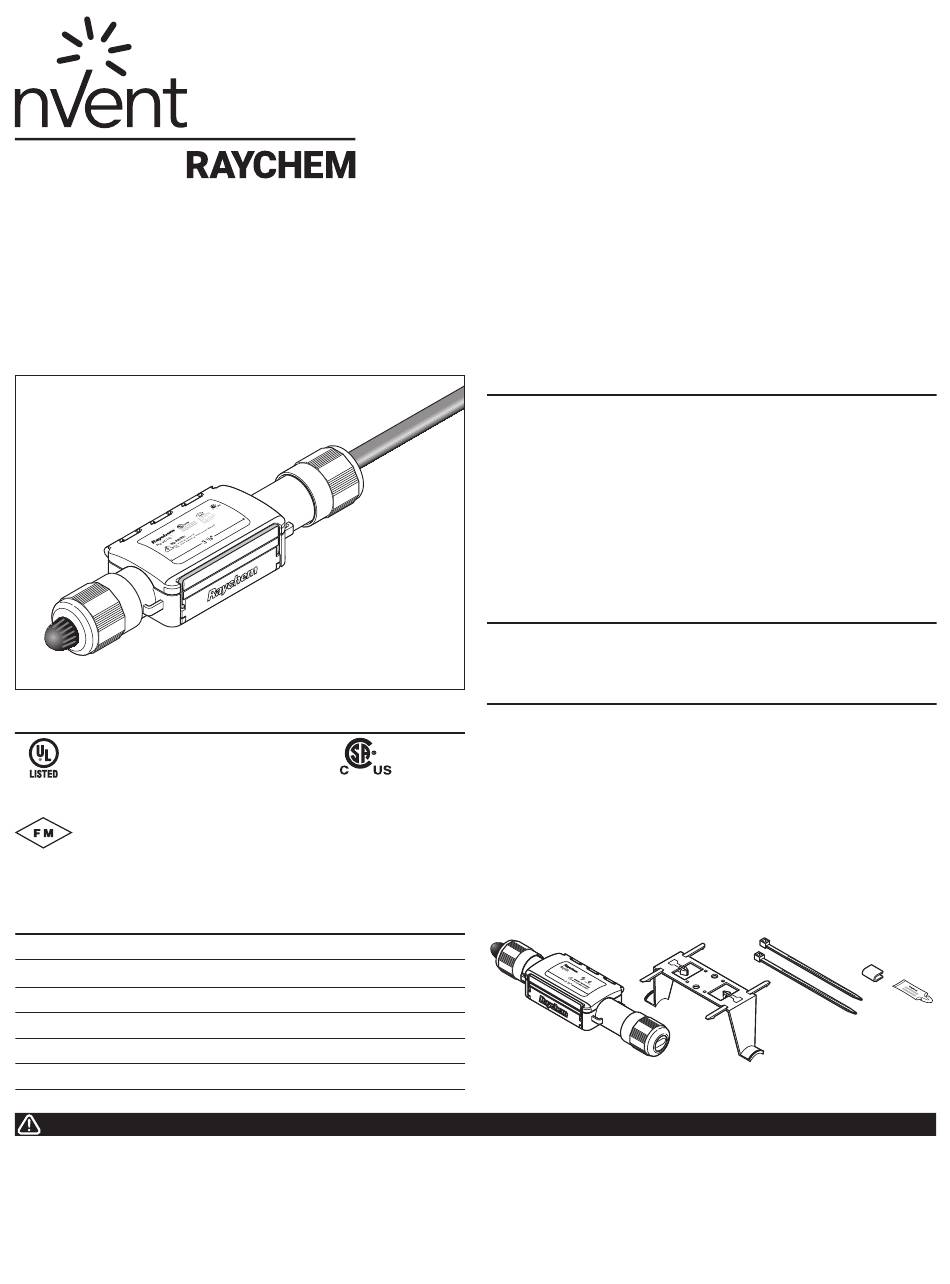

RayClic-LE Lighted End Seal Kit Installation Instructions
APPROVALS
718K Pipe Heating Cable
877Z De-Icing and Snow Melting
Not UL Listed with XL-Trace heating
cable for buried piping.
For HWAT, IceStop, and XL-Trace only
Hazardous Locations: For IceStop (GM-XT) only
APPROVED
Class I, Div. 2, Groups A,B,C,D

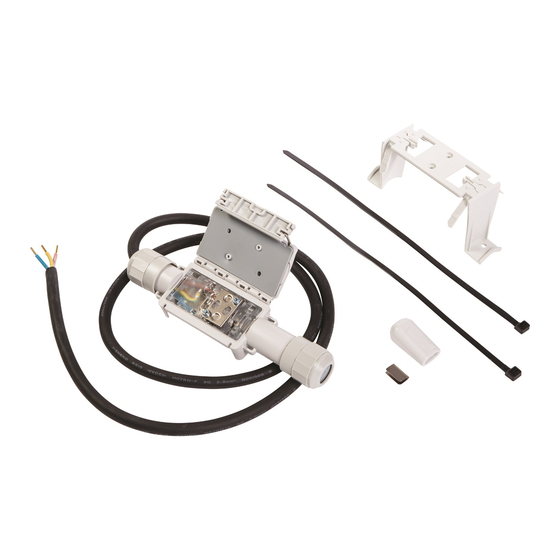

KIT CONTENTS
Item Qty
Description
A
1
Lighted end seal
B
1
Pipe mounting bracket
C
2
Plastic cable ties
D
1
Clip
E
1
Cable lubricant
WARNING:
This component is an electrical device that must be
installed correctly to ensure proper operation and to
prevent shock or fire. Read these important warnings and
carefully follow all the installation instructions.
• To minimize the danger of fire from sustained electrical
arcing if the heating cable is damaged or improperly
installed, and to comply with the requirements of nVent,
DESCRIPTION
The nVent RAYCHEM RayClic-LE Lighted End Seal Kit is for use
with nVent RAYCHEM IceStop, XL-Trace and HWAT heating
cables. The connection is designed to be installed above the
pipe insulation or mounted on the wall at the end of the heating
cable circuit. These installation instructions should be used
in conjunction with the IceStop, XL-Trace and HWAT System
Installation and Operation Manuals.
For technical support contact your nVent representative or call
nVent (800) 545‑6258.
TOOLS REQUIRED
• Utility knife
• TORX
OPTIONAL ACCESSORIES (Not included in this kit):
• nVent RAYCHEM RayClic‑SB‑02 Wall mounting bracket
-w
agency certifications, and national electrical codes,
ground-fault equipment protection must be used. Arcing
may not be stopped by conventional circuit breakers.
• Bus wires will short if they contact each other. Keep bus
wires separated.
• Keep components and heating cable ends dry before
and during installation.
• Wire cutters
T20 screw driver
®
A
B
• The black heating cable core is conductive and can
short. It must be properly insulated and kept dry.
• Component approvals and performance are based
on the use of nVent-specified parts only. Do not use
substitute parts or vinyl electrical tape.
• Leave these instructions with end user for reference
and future use.
C
D
E

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAYCHEM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for nvent RAYCHEM

  • Page 1 RayClic Connection System RayClic-LE Lighted End Seal Kit Installation Instructions DESCRIPTION The nVent RAYCHEM RayClic-LE Lighted End Seal Kit is for use with nVent RAYCHEM IceStop, XL-Trace and HWAT heating cables. The connection is designed to be installed above the pipe insulation or mounted on the wall at the end of the heating cable circuit.
  • Page 2 • Score around and down the outer jacket of the heating cable 3 1/8 inches from the end. • Remove the outer jacket. • Place metal clip over the base of exposed braid. 2 | nVent.com...
  • Page 3 Push until heating cable is fully inserted and end is visible through opening in connection cover plate. Note: RayClic connection kits are designed to be installed only once; the heating cable cannot be removed once installed nVent.com | 3...
  • Page 4 (pages 2–4). • Attach the connector to the mounting bracket by pressing until it snaps in place. • Complete heating cable installation and install a drip loop as shown. Drip loop • Protect heating cable from sharp edges. 4 | nVent.com...
  • Page 5: Troubleshooting Guide

    Braid clips are missing. The braid clips are attached to the cardboard packing insert under the lid. The braid clips must be used to ensure a ground connection. If clips are missing or lost, call nVent at (800) 545‑6258. Mounting bracket is missing.
  • Page 6 ©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without notice. Raychem-IM-H58082-RayClicLE-EN-1805...
