E-100-L
High-Profile End Seal With Light Installation Instructions
APPROVALS
Hazardous Locations
Class I, Div. 2, Groups A, B, C, D
Class II, Div. 2, Groups E, F, G
Class III
– WS
CLI, ZN1, AEx em II T*
Ex em II T*
Ex em IIC T* Gb
E-100-L is IECEx certified for use with:
BTV-CR/BTV-CT:
IECEx
QTVR-CT:
XTV-CT:
KTV-CT:
VPL-CT:
(1)
Except VPL
* For system Temperature Code, see heating cable or design documentation
(2)
Except KTV-CT
KIT CONTENTS
Item Qty Description
A 1 End seal and light assembly
B 2 Insulated parallel crimps (blue)
C 1 End seal label
D 1 Cable lubricant
E 1 Cable tie
F 1 Core sealer
(1)
(2)
IECEx BAS 06.0043X
IECEx BAS 06.0045X
IECEx BAS 06.0044X
IECEx BAS 06.0046X
IECEx BAS 06.0048X
.
DESCRIPTION

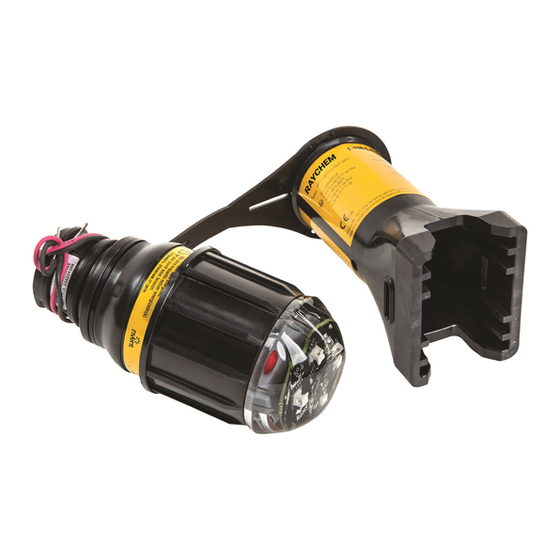

The nVent RAYCHEM E-100-L is a NEMA 4X-rated end seal kit with a light
that indicates voltage at the end of the circuit. It is designed for use with
nVent RAYCHEM BTV-CR, BTV-CT, QTVR-CT, XTV-CT, KTV-CT, and VPL-
CT industrial parallel heating cables. Once installed, the end seal is easily
re-entered for maintenance and the heating cable can be accessed
without removing the end seal. The LED indicator light provides excellent
visibility.
This kit may be installed at temperatures as low as –40°F (–40°C).
For easier installation store above freezing until just before
installation.
Two units are available:
– nVent RAYCHEM E-100-L1 for 100–120 volts.
– nVent RAYCHEM E-100-L2 for 200–277 volts.
Make sure voltage rating of light is the same as that of the
heat-tracing circuit.
For technical support call nVent at (800) 545-6258.
TOOLS REQUIRED
• Wire cutters • Utility knife
• Needle nose pliers • Slotted screwdriver or nutdriver
• Panduit CT-100 crimp tool or equivalent
ADDITIONAL MATERIALS REQUIRED
• Pipe strap • GT-66 or GS-54 glass cloth tape
OPTIONAL MATERIALS
• Small pipe adapter for 1 in (25 mm) and smaller pipes:
Catalog number JBS-SPA P/N E90515-000
Leash
Strain
relief
A
Stand
F
B
Light
C
D
E
