nvent LENTON Instruction Sheet

INSTRUCTION SHEET


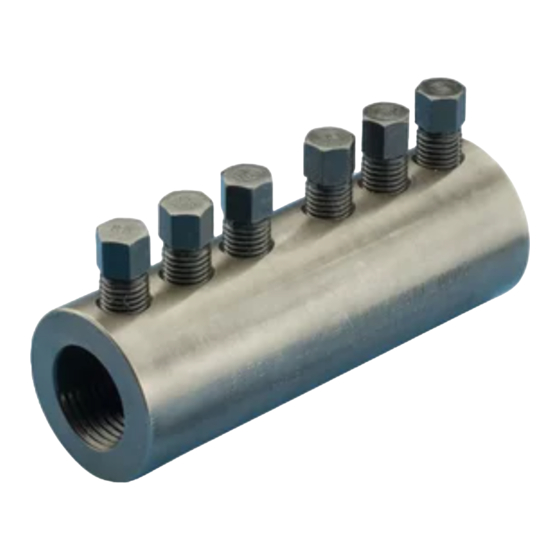

Read all instructions and procedures. Ensure nVent LENTON Connect is sized properly per project plans. Refer to
product instruction sheet for coupler installation procedure details. Additional copies of instructions and
application information are available at www.nVent.com

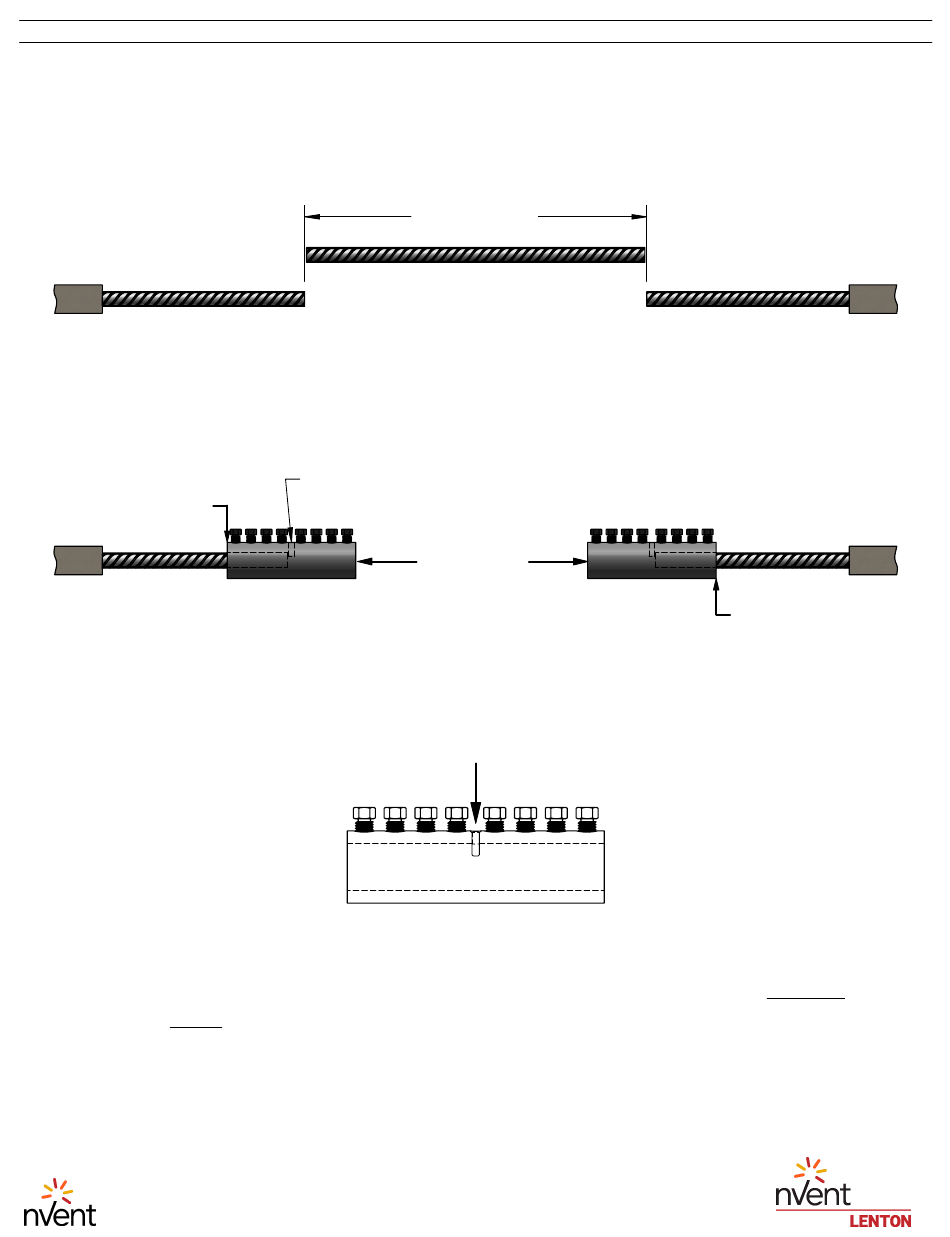

Step 1: Slide the coupler onto each rebar end until the rebar touches the stop pin. Mark the rebar to ensure
proper coupler/rebar engagement.
Mark Rebar
Step 2: To allow rebar to pass entirely through the coupler, remove the stop pin by pushing the pin into the
inside diameter of sleeve. Discard the stop pin.
WARNING:
1. nVent products shall be installed and used only as indicated in nVent product instruction sheets and training materials. Instruction sheets are available at www.nVent.com and from your
nVent customer service representative.
2. nVent products must never be used for a purpose other than the purpose for which they were designed or in a manner that exceeds specified load ratings.
3. All instructions must be completely followed to ensure proper and safe installation and performance.
4. Improper installation, misuse, misapplication or other failure to completely follow nVent's instructions and warnings may cause product malfunction, property damage, serious bodily
injury and/or death, and void your warranty.
The customer is responsible for:
a. Conformance to all governing codes.
b. The integrity of structures to which the products are attached, including their capability of safely accepting the loads imposed, as evaluated by a qualified engineer.
c. Using appropriate industry standard hardware as noted above.
SAFETY INSTRUCTIONS:
All governing codes and regulations and those required by the job site must be observed.
Always use appropriate safety equipment such as eye protection, hard hat, and gloves as appropriate to the application.
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are registered trademarks
of nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reservers the right to change
specifications without prior notice.
TECHNICAL SUPPORT:
Stop Pin
Slide
coupler
Push pin in and through
PDF139_A
www.nVent.com
Section of rebar
to be spliced
Slide
coupler
center of coupler
1 of 2 © 2019 nVent All Rights Reserved
Mark Rebar
