Cree ZR Series Installation Instructions page 2

3
Junction Box
4
Dimming Wire
Compartment
Knock-outs
ELECTRICAL CONNECTIONS
STEP 1:
Make the following Electrical Connections:
a. Connect the black fixture lead to the voltage
supply Line position, Hot.
b. Connect the white fixture lead to the neutral supply
position.
c. Connect the green or green/yellow ground lead to
the supply ground lead.
d. If 0/1-10V Dimming is used, connect the violet lead
to the supply positive dimming lead. If dimming is
not being used ensure to cap off the violet lead.
e. If 0/1-10V Dimming is used, connect the gray lead
to the supply negative dimming lead. If dimming is
not being used ensure to cap off the gray lead.
© 2014 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change. See
www.cree.com/lighting/products/warranty for warranty and specifications. Cree®, and the Cree logo are
registered trademarks and ZR14™, ZR22™ and ZR24™ are trademarks of Cree, Inc.
2 of 2
Cover
DO NOT use
third Knock-out

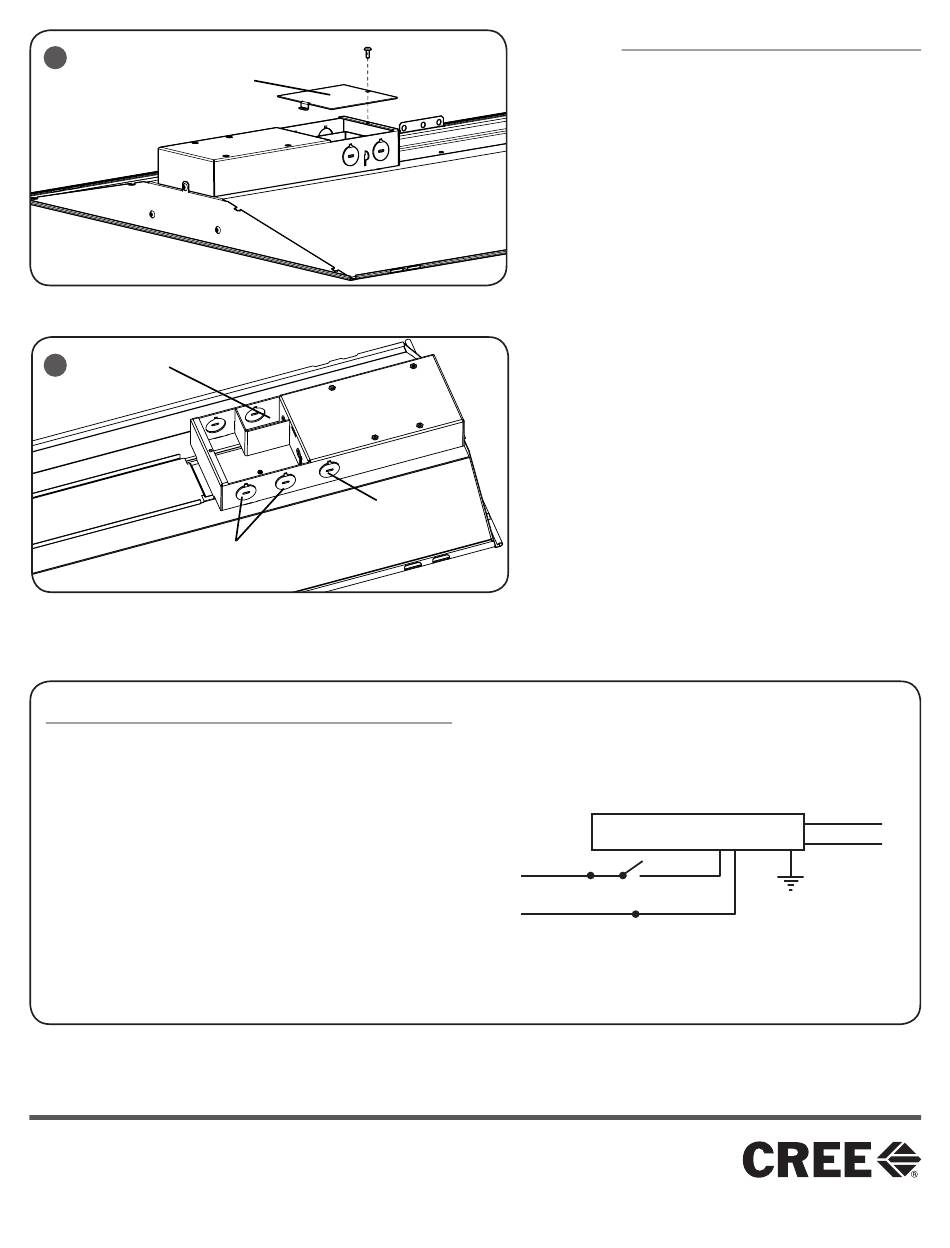

0 - 10V DIMMING OPTION
STEP 1:
Remove the cover of the junction box and
bring in appropriate power supply to the
junction box using one of the knock-outs. See
Figure 3 and 4.
NOTE: Do NOT use the third knock-out that
is shown in Figure 4.
STEP 2:
Bring dimming conduit into dimming wire
compartment using the knock-out. See
Figure 4 .
STEP 3:
Wire luminaire per "Electrical Connections"
section and push all leads into the junction
box. Reattach junction box cover that was
removed in Step 1 , make sure no wires are
pinched.
DRIVER ASSEMBLY
LINE
BLACK
NEUTRAL
WHITE
VIOLET
GREY
www.cree.com/lighting
LPN00208X0001A4_B
