Cree Edge XAKE Series Installation Instructions

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2. This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements,
consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualifié.
3. Ensure the mounting surface is capable of supporting the weight of the
luminaire after installation.
Veiller à la surface de montage est capable de supporter le poids du luminaire
après l'installation.
4. If NEMA Photo Control is installed refer to NEMA Receptacle Section for
instructions.
5. Due to the weight of the luminaire, 2 people may be necessary during
installation.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
TO INSTALL:

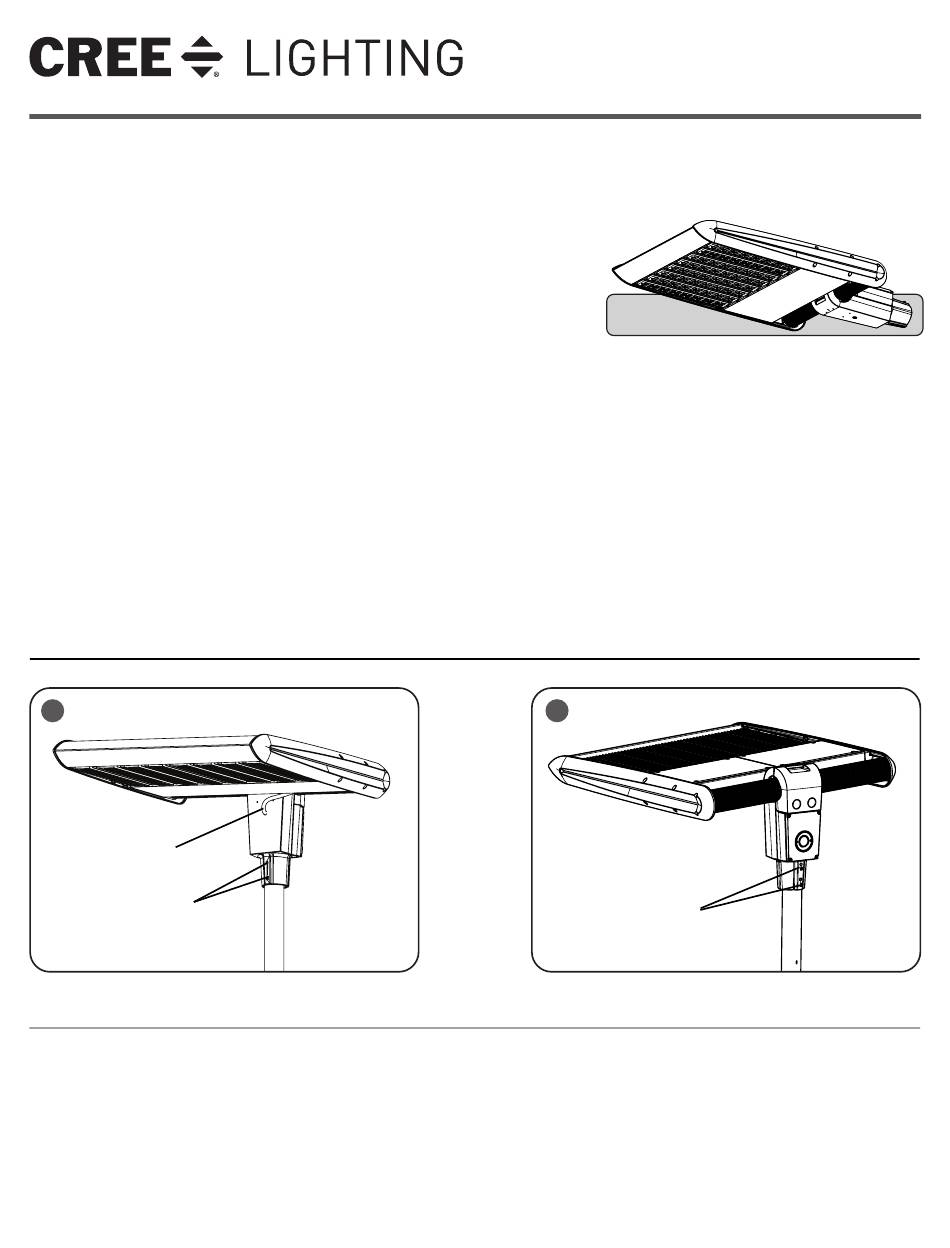

1
Cord
Tighten these (2) Set
Screws FIRST
TENON MOUNT
NOTE: Tenon must be 3.75" or longer and
constructed of steel.
STEP 1:
To adjust the angle of the luminaire,
reference the Angle Adjustment Section.
STEP 2:
Route the supply wire through the tenon.
Secure the supply wire to keep from sliding
back down the pole.
1 of 4
STEP 3:
Make electrical connections per Electrical
Connection section.
NOTE: Electrical Connections can be made
after installation is finished.
STEP 4:
Fit the luminaire over the tenon.
STEP 5:
Using 3/16" Allen wrench, hand tighten (2) set
screws, on the side of the tenon where the
LED High Output Luminaire
Includes: XAK1, XAKE and XAKG Series
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
• Prior to installation, store luminaire in a dry
location protected from rain, dust, and outdoor
environment. If equipped with a photocell
receptacle, do not store or install luminaire
outdoors without immediately installing a
suitable photocell, shorting cap, or other
compatible device. Do NOT leave receptacle open
to environmental elements. Luminaires with a
top-mounted photocell receptacle should not be
installed in an up-light position or at a tilt greater
than 45 degrees from the down-light position.
2
Tighten these (2) Set
Screws LAST
cord is, until tip of screws engage tenon. (Do
not fully tighten). Torque set screws to 180 in.
lbs. (4.5 N-m) See Figure 1.
STEP 6:
Using 3/16" Allen wrench, hand tighten (2)
set screws, on the opposite side of the tenon
where the cord is, until tip of screws engage
tenon. (Do not fully tighten). Torque set
screws to 180 in. lbs. (4.5 N-m) See Figure 2.
DO NOT over-tighten.
THE EDGE
®
CI380X05R4_B
