IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2.
This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements,
consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique
local. Si vous n'êtes pas familier avec ces codes et ces exigences, veuillez
contacter un électricien qualifié.
3.
DO NOT lift luminaire by the power leads or cord.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
TO INSTALL:
1
2
1 of 3
304 Conversion to CPY250
INSTRUCTIONS D'INSTALLATION
NOTE:
No user maintenance is required. Do not remove the
enclosure cover after installation.
INSTALLATION
STEP 1:
Disconnect power from the installed 304 luminaire.
STEP 2:

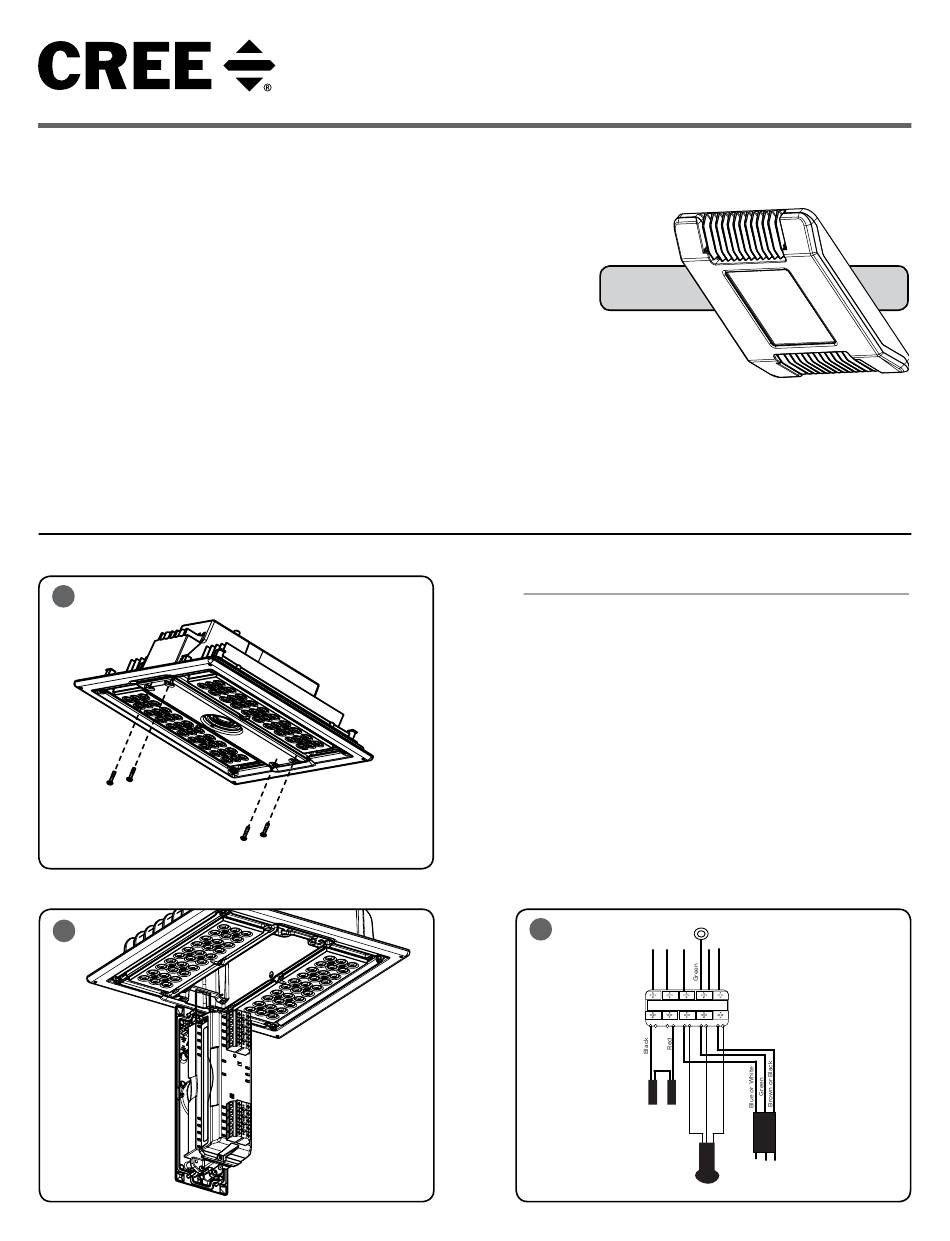

Remove the Driver Module Cover on the 304 luminaire by removing
four screws. See Figure 1.
STEP 3:
Allow the Driver Module to hang from the hinge and disconnect the
following wires from the terminal block See Figure 2 & 3:
• Red and Black Lightbar Connector wires
• Blue, Green & Brown OR White, Green & Black Cord wires
• Green Luminaire Ground wire.
NOTE: Wires are removed from the terminal block by depressing
the button above the wire being removed and gently pulling the
wire out.
FIXTURE
3
GROUND
T-
T+
N
G
White
Lightbar
Connectors
Surge
Suppressor

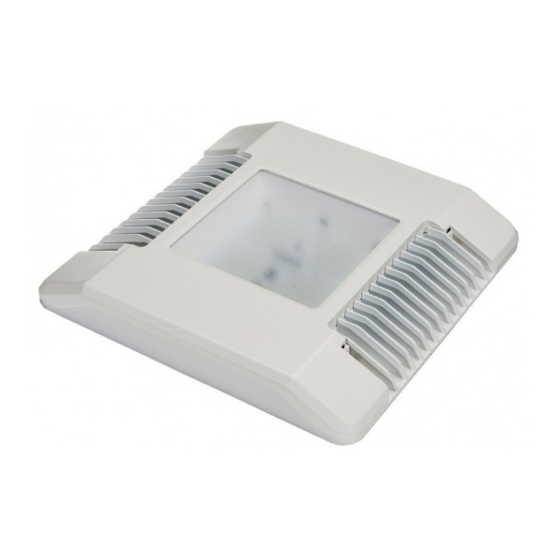

CPY Series
LED Canopy Luminaire
Luminaires
TM
INSTALLATION INSTRUCTIONS
L
Cord
LPN00622X0001A0_A
