IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2.
This luminaire must be installed in accordance with the NEC or your
local electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualifié.
3.
Do not handle energized module with wet hands or when standing on wet
or damp surfaces, or in water.
4.
Suitable for damp locations.
Convient aux emplacements humides.
5.
Access above ceiling required. Do not install insulation within 3" (76mm) of
any part of the luminaire.
Accès requis au-dessus du plafond. Ne pas mettre l'isolant à moins de 76
mm (3 po) de toute partie du luminaire.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
• The ZR Series of recessed
troffers is for non-insulated
ceiling applications using
T-Bar ceiling grid, drywall grid
adaptors, and
suspended mount.
• Designed for use in 120-
277V 50-60 Hz or 347V 60Hz
protected circuit (fuse box,
circuit breaker). Supply wire
sized as per NEC or governing
code(s), 90C rated.
TO INSTALL:
1
T-Bar Clips
1 of 4
• Make sure to cap off all unused
leads.
• ** Not intended for use with
9/16" T-Bar grids unless used
with a 9/16" accessory clip like
"Armstrong® LFC- Fixture Clip"
which can be purchased through
distribution. Consult factory for
non-standard grid applications.
• Lens may shift during
installation. Press center of
lens to engage magnet strip
after installation.
Mounting Bracket

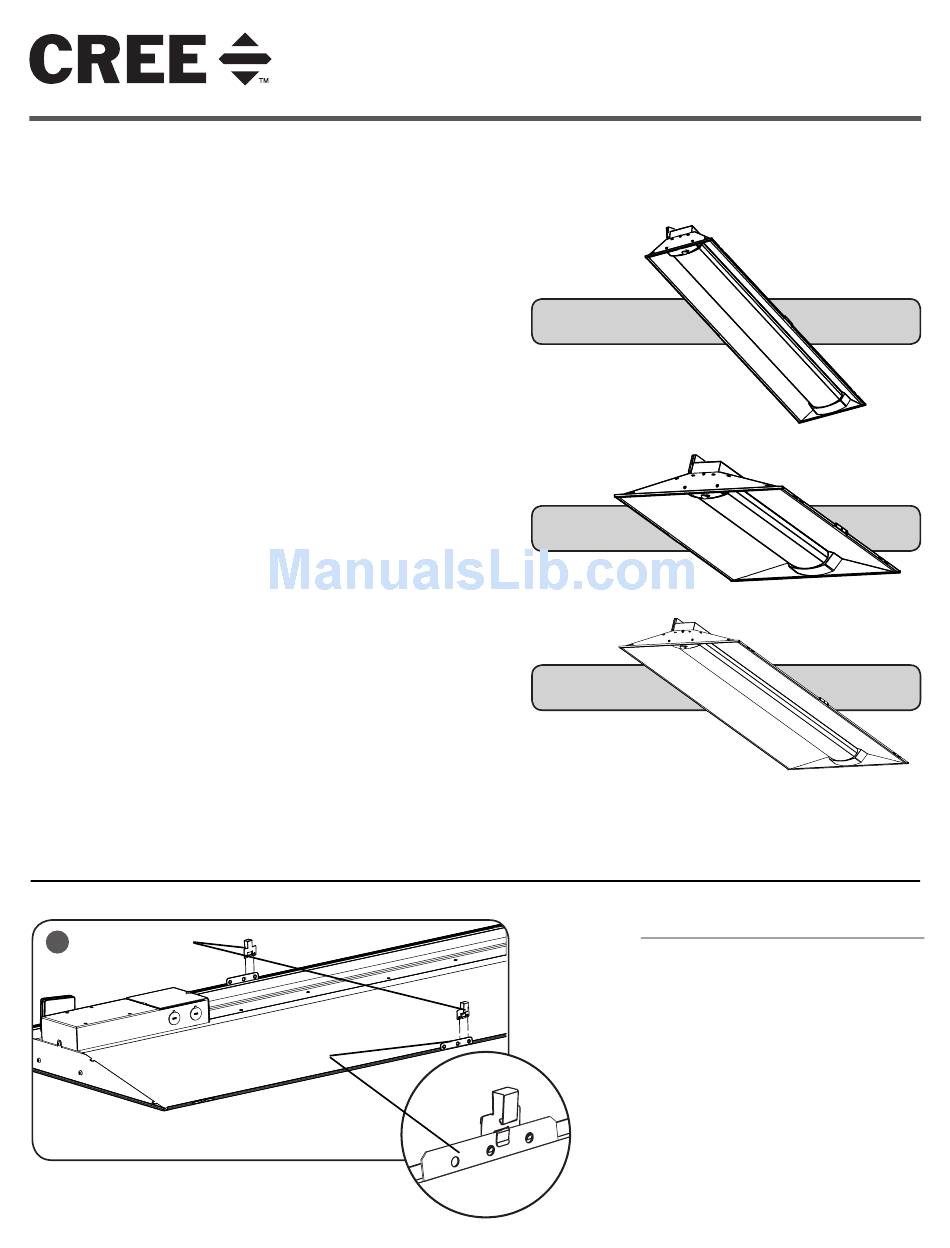

ZR Series with Cree SmartCast
Architectural Troffers with Removable Lens
ZR14™
ZR22™
ZR24™
Technology
®
Includes: ZR14™, ZR22™ and ZR24™
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
T- BAR CEILING MOUNTING
STEP 1:
Install the (2) supplied T-Bar clips onto the
mounting bracket on the outside of the housing.
See Figure 1.
STEP 2:
Bring the ZR troffer into the T-Bar Ceiling panel
and attach the clips on the housing onto the
T-Bar.
STEP 3:
Attach the RF Module to the luminaire by
clicking it into place as Shown in Figure 3.
LPN00467X0003A0_B
Advertisement
Related Manuals for Cree ZR14
Summary of Contents for Cree ZR14
- Page 1 ZR Series with Cree SmartCast Technology ® Architectural Troffers with Removable Lens Includes: ZR14™, ZR22™ and ZR24™ IMPORTANT SAFEGUARDS INSTALLATION INSTRUCTIONS INSTRUCTIONS D’INSTALLATION When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS DANGER- Risk of shock- Disconnect power before installation.
- Page 2 • If Blue LED is blinking, then perform a RESET (See RESET RF MODULE section). • If Blue LED is on solid or off, call Cree DO NOT use third Knock-out Customer Service. • If you have done a RESET, and the light is...
- Page 3 CLEANING LENS STEP 1: Locate the end cap with the arrow marks on it, indicating that the end cap is removable. End Cap STEP 2: Grab the lens section next to the end cap and pull lens and end cap together downward gently. See Figure 6. STEP 3: Disengage the other end of the lens from the other end cap.
- Page 4 See http://lighting.cree.com/warranty for warranty and specifications. Cree and SmartCast are registered trademarks, and ® ® the Cree logo, and ZR14™, ZR22™ and ZR24™ are trademarks of Cree, Inc. Armstrong® is a registered trademark of AWI Licensing LLC. www.lighting.cree.com LPN00467X0003A0_B 4 of 4...
