Cree WS Series Installation Instructions

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always
be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2. This luminaire must be installed in accordance with the NEC or your
local electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code
électrique local. Si vous n'êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualifié.
3. MIN. 75C SUPPLY CONDUCTORS.
LES FILS D'ALIMENTATION 75°C MIN.
4. SUITABLE FOR WET LOCATIONS.
CONVIENT AUX EMPLACEMENTS MOUILLES.
5. SUITABLE FOR OPERATION IN AMBIENT NOT EXCEEDING 40°C.
PEUT ETRE UTILISE A UNE TEMPERATURE AMBIANTE
N'EXCEDANT PAS 40°C.
6. SUITABLE FOR CONTINUOUS ROW MOUNTING.
PEUT ÊTRE MONTÉ EN RANGÉE CONTINUE.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE

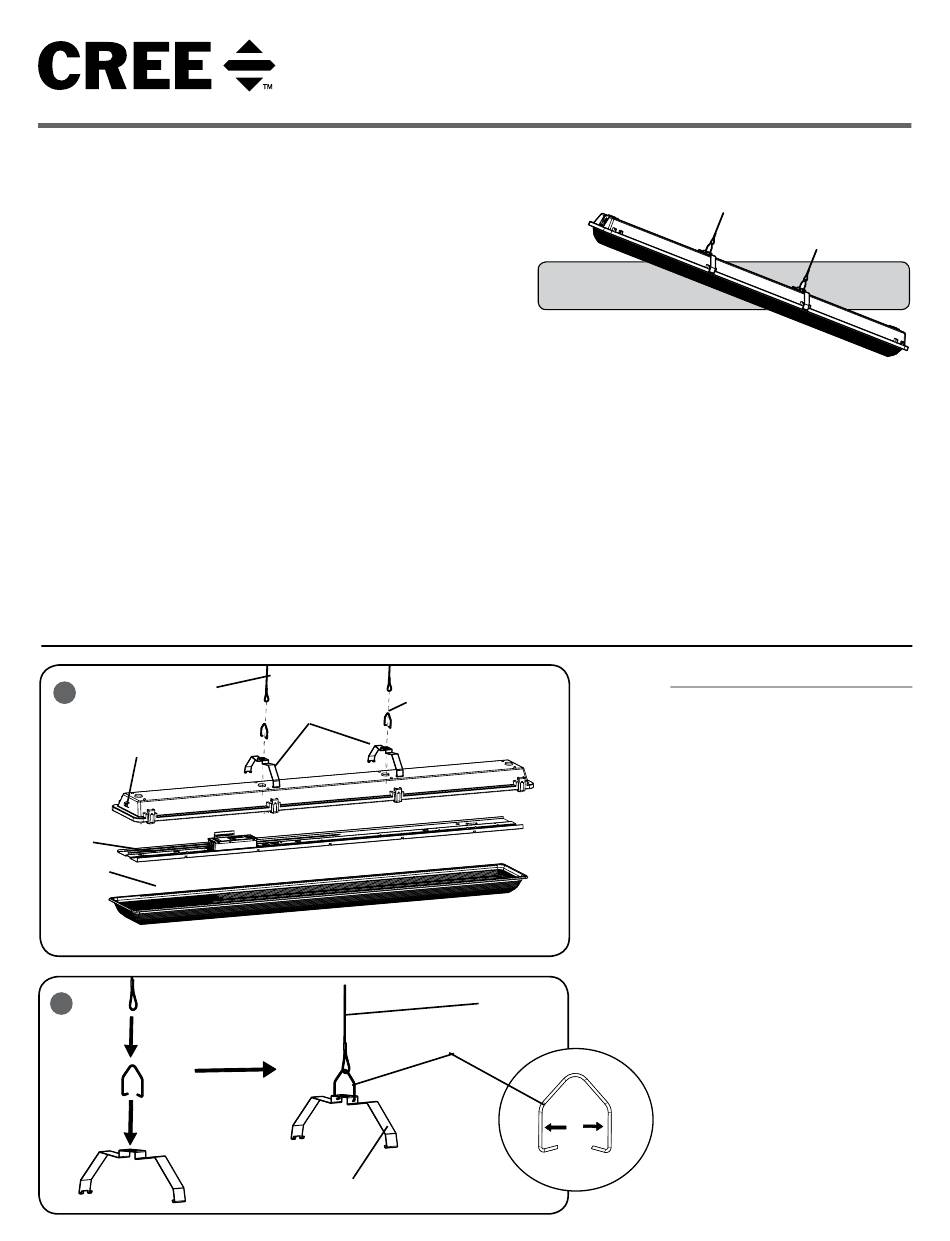

TO INSTALL:
Air Craft Cable
1
Conduit Hole
LED Tray
Lens Cover
2
1 of 3
Bail
Mounting Brackets
Bail
Mounting Bracket
NOTES:
• For use with Cree Cable Suspension Kit.
• Liquid tight conduit fitting must be IP65 rated, supplied by
customer, to be used when attaching conduit to housing.
Air Craft Cable

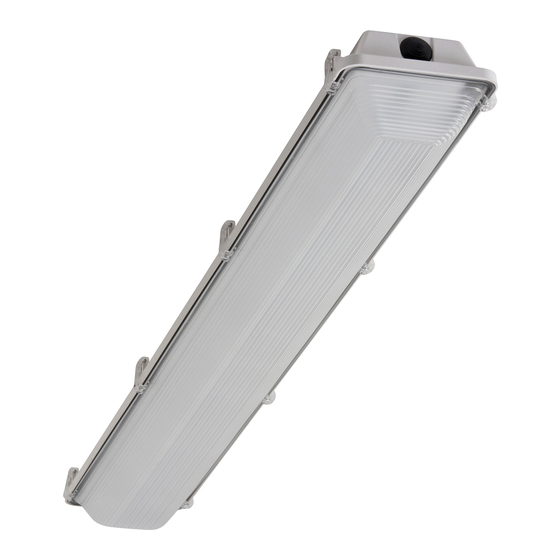

WS Series
LED Linear Luminaire
Suspended Mount
INSTALLATION INSTRUCTIONS
SUSPENDED MOUNT
STEP 1:
Attach the bails to the mounting brackets
by gently pulling outward on the bail and
snapping it into the holes on the top of the
mounting bracket. See Figure 1 and 2.
STEP 2:
Attach air craft cables to the bracket
assembly. Attach the other end of the air
craft cable to ceiling. See Figure 2.
NOTE: It is recommended that the
dimensions between brackets equal about
70-80% of the luminaire's length. The
luminaire will engage to the mounting
brackets at any point along it's length,
except where there are latches.
LPN00501X0002A1_A
