Cree IG Series Installation Instructions

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2. This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements, consult
a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique local.
Si vous n'êtes pas familier avec ces codes et ces exigences, veuillez contacter un
électricien qualifié.
3. DO NOT lift luminaire by the power leads.
4. DO NOT carry or lift luminaire by wireform. Wireform is only for supporting luminaire while
making wiring connections.
SAVE THESE INSTRUCTIONS FOR FUTURE

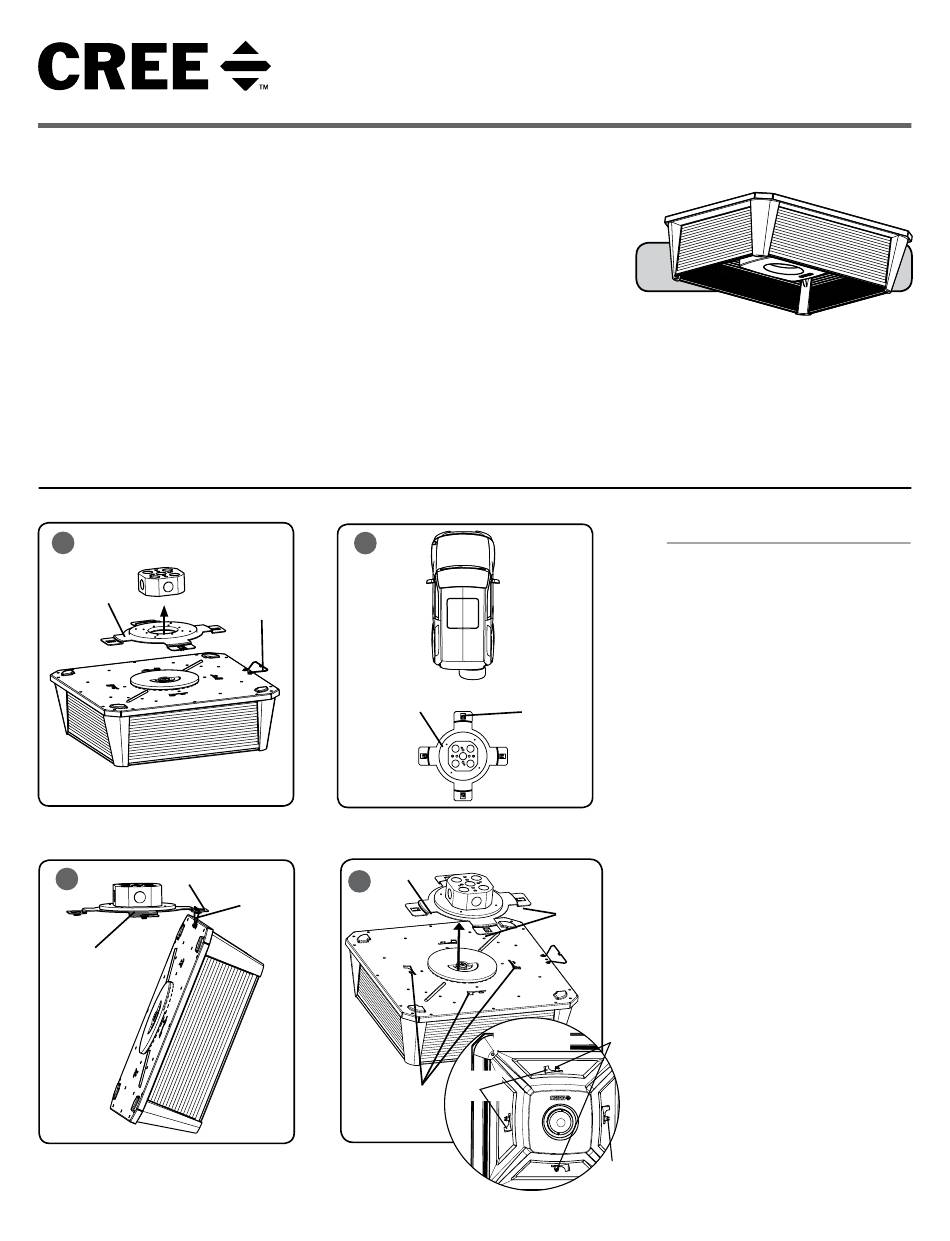

TO INSTALL:
1
Mounting Plate
3
Clips
Mounting Plate
1 of 2
REFERENCE
2
Wireform
Mounting Plate
Mounting
4
Plate
Wireform
(4) Luminaire Slots
Mounting
Plate Clip
(4) Clips
View of Underneath
(2) Screws
Luminaire
Luminaire
Slots
(4) Mounting
Plate Clips

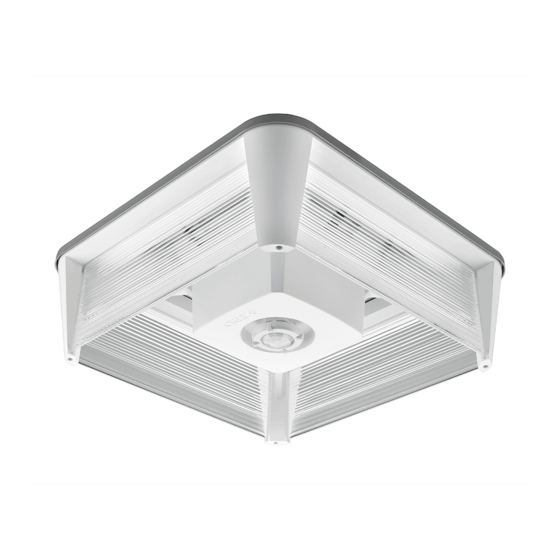

IG Series
LED Parking Luminaire
Junction Box and Pendant Mount
INSTALLATION INSTRUCTIONS
NOTE:
• During installation and maintenance handle
the luminaire only by the housing NOT by the
lens.
JUNCTION BOX MOUNTING
STEP 1:
Attach mounting plate to customer
supplied junction box with the clips on the
Mounting Plate directed parallel to vehicle
traffic as shown in Figure 2. Torque to
20 in-lbs. See Figure 1 and 2.
STEP 2:
For hands-free wiring locate the wireform
on luminaire and attach it to the clip on
the Mounting Plate. See Figure 3.
STEP 3:
Make wiring connections per "Electrical
Connections" section.
STEP 4:
After wiring connections have been made,
tuck all wires into junction box ensuring
that no wires are pinched. Remove
wireform on luminaire from the clip on the
mounting plate. Fold the wireform back
down onto the luminaire.
STEP 5:
Attach luminaire to the Mounting Plate
by pressing up on the luminaire until the
slots on the luminaire engage with the
clips on the Mounting Plate and rotate
until clips lock securely. To secure install
a minimum of (2) supplied screws across
from each other into the mounting plate
clips on the underside of the luminaire.
See Figure 4.
NOTE: May require extra pressure on
luminaire to engage clips into slots. Only
apply pressure on housing body NOT on
the luminaire lens.
NOTE: If the mounting plate clips
become deformed during installation,
slightly reopen the clips back up using a
screwdriver to ensure proper install of
luminaire.
LPN00305X0001A0_A
