Cree ZR Series Installation Instructions

I
MPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To avoid the possibility of electrical shock, turn off power supply before
installation or servicing.
2. Product must be installed in accordance with NEC or your local
electrical code. If you are not familiar with these codes and
requirements, consult a qualified electrician.
3. Do not handle energized module with wet hands or when standing on
wet or damp surfaces, or in water
4. Suitable for Damp Locations.
5. Access above ceiling required. Do not install insulation within 3"(76mm)
of any part of the luminaire. Suitable for suspended ceilings.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
• The ZR Series of recessed troffers is for non-insulated ceiling
applications using T-Bar ceiling grid, drywall grid adaptors, and
suspended mount.
• Designed for use in 120-277V 50-60 Hz or 347V 60Hz protected
circuit (fuse box, circuit breaker). Supply wire sized as per NEC
or governing code(s), 90C rated.
• Make sure to cap off all unused leads.
TO INSTALL:
1
T-Bar Clips
2
1 of 2
Mounting Bracket
Cable Slots
Includes: ZR14™, ZR22™ and ZR24™

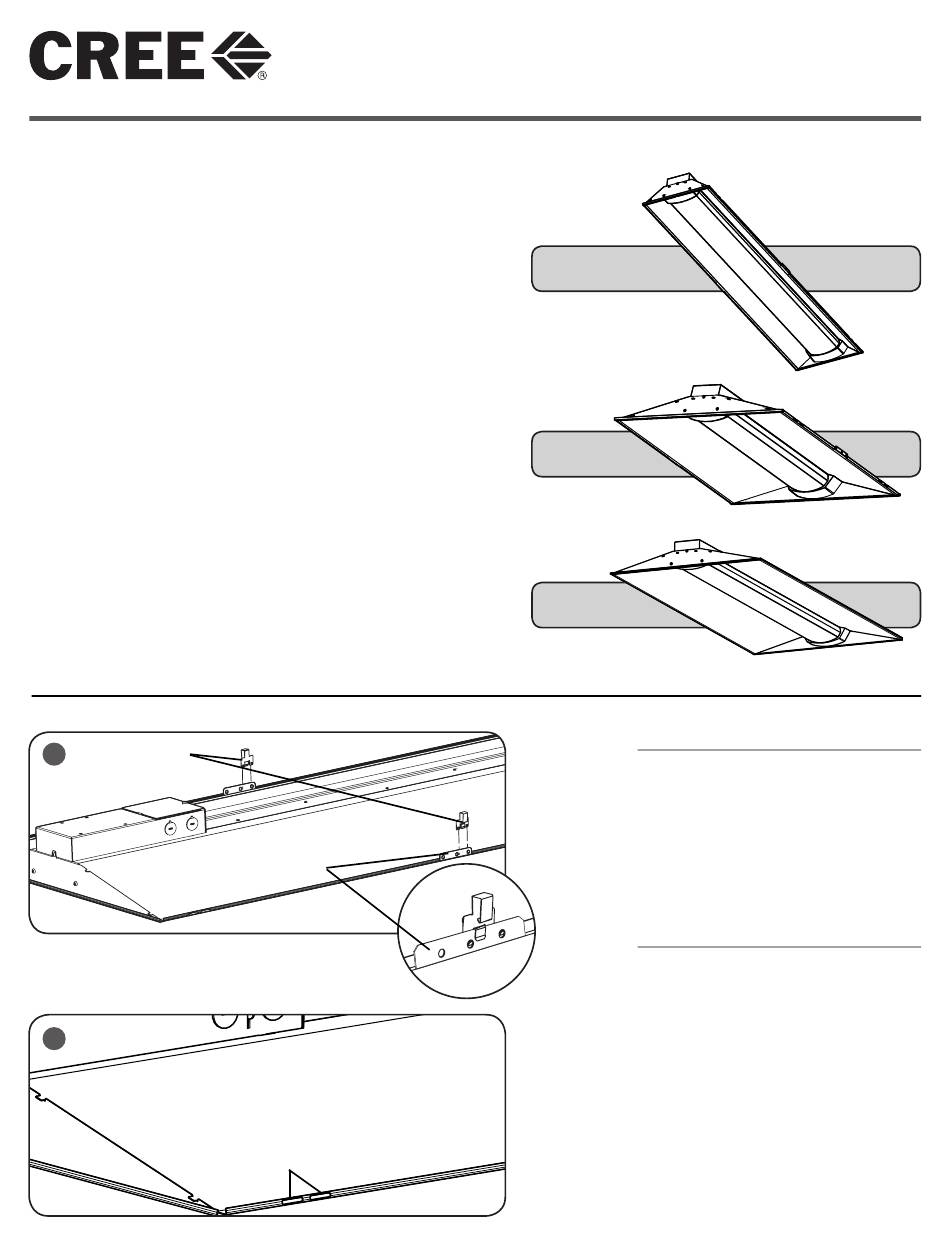

INSTALLATION INSTRUCTIONS
ZR14™
ZR22™
ZR24™
T- BAR CEILING MOUNTING
STEP 1:
Install the (2) supplied T-Bar clips onto the
mounting bracket on the outside of the
housing. See Figure 1.
STEP 2:
Bring the ZR troffer into the T-Bar Ceiling
panel and attach the clips on the housing
onto the T-Bar.
SUSPENDED MOUNTING
STEP 1:
Attach customer supplied cables to the (2)
cable slots on each corner of the housing.
See Figure 2.
STEP 2:
Attach customer supplied cables to
mounting surface using customer supplied
hardware. Ensuring that mounting surface
can support the luminaire.

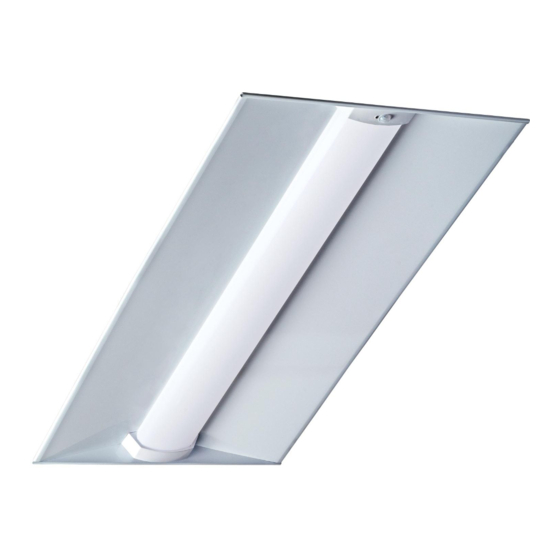

ZR Series
Architectural Troffers
LPN00208X0001A4_B
