Cree XSP Series Installation Instructions

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be
followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. To reduce the risk of electrical shock, turn off power supply before
installation or servicing.
2. This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements,
consult a qualified electrician.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
TO INSTALL:

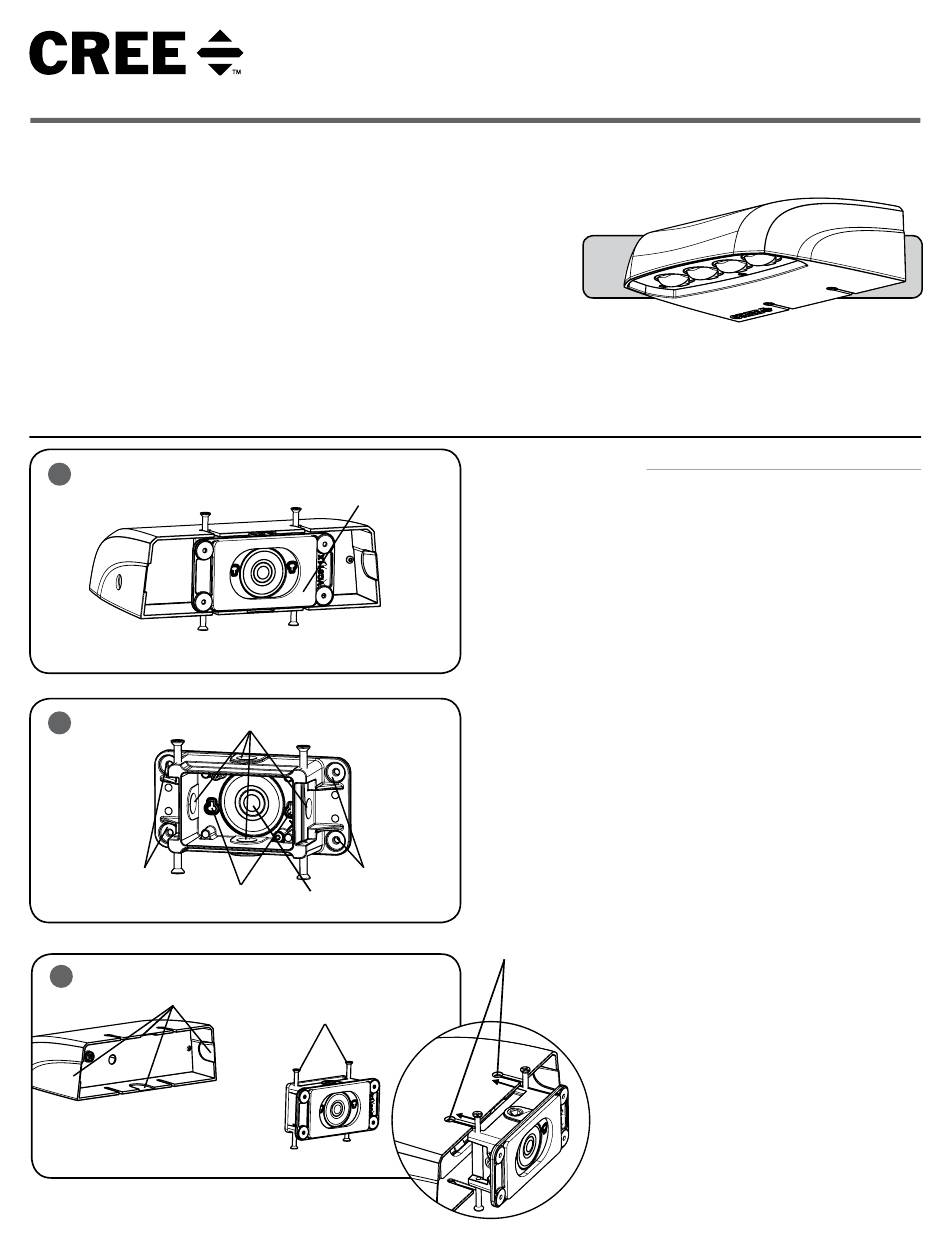

1
2
(4) 1/2" threaded holes
(4) Mounting
Holes
3
Conduit Knockouts Locations
1 of 2
Mounting Box
(4) Mounting Holes
(2) Keyhole
Conduit Knockout
Knockouts
Luminaire Mount
Screws
Slots on Luminaire
Housing

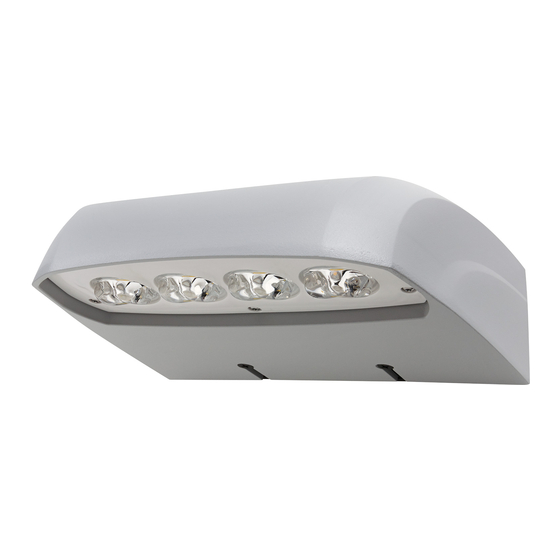

XSP Series
LED Wall Pack
Includes: XSPW™ Luminaires
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION

WALL MOUNTING

STEP 1:
Remove mounting box from the luminaire. See
Figure 1.
STEP 2:
IMPORTANT – If needed, the (2) Keyhole
knockouts located inside box may be removed,
but are for alignment only. See Figure 2.
Luminaire is to be supported by (4) 3/16"
mounting holes. The Mounting holes will
accommodate a #10 bolt. Select appropriate
customer supplied mounting hardware for
mounting surface. See Figure 2 and 4.
STEP 3:
Place mounting box over junction box or
conduit. If mounting over junction box a 2-1/2"
Inspection knockout hole is included. See
Figure 2 and 4.
STEP 4:
For surface wiring (4) 1/2" threaded holes are
available. See Figure 2 and 4.
STEP 5:
If mounting on a uneven surface, place a
minimum of a 1/4" bead of high grade silicone
on the black gasket encompassing the
Inspection Knockout hole on the back of the
mounting box. See Figure 4.
STEP 6:
If mounting over surface mounted conduit
use the knockout conduit openings located
on the top, bottom, or sides of the luminaire.
Knockouts can be removed by using a hammer
or pliers. See Figure 3.
STEP 7:
Before securing to wall mounting surface,
make sure mounting box is level.
STEP 8:
Secure mounting box to wall.
CI379X41R0
