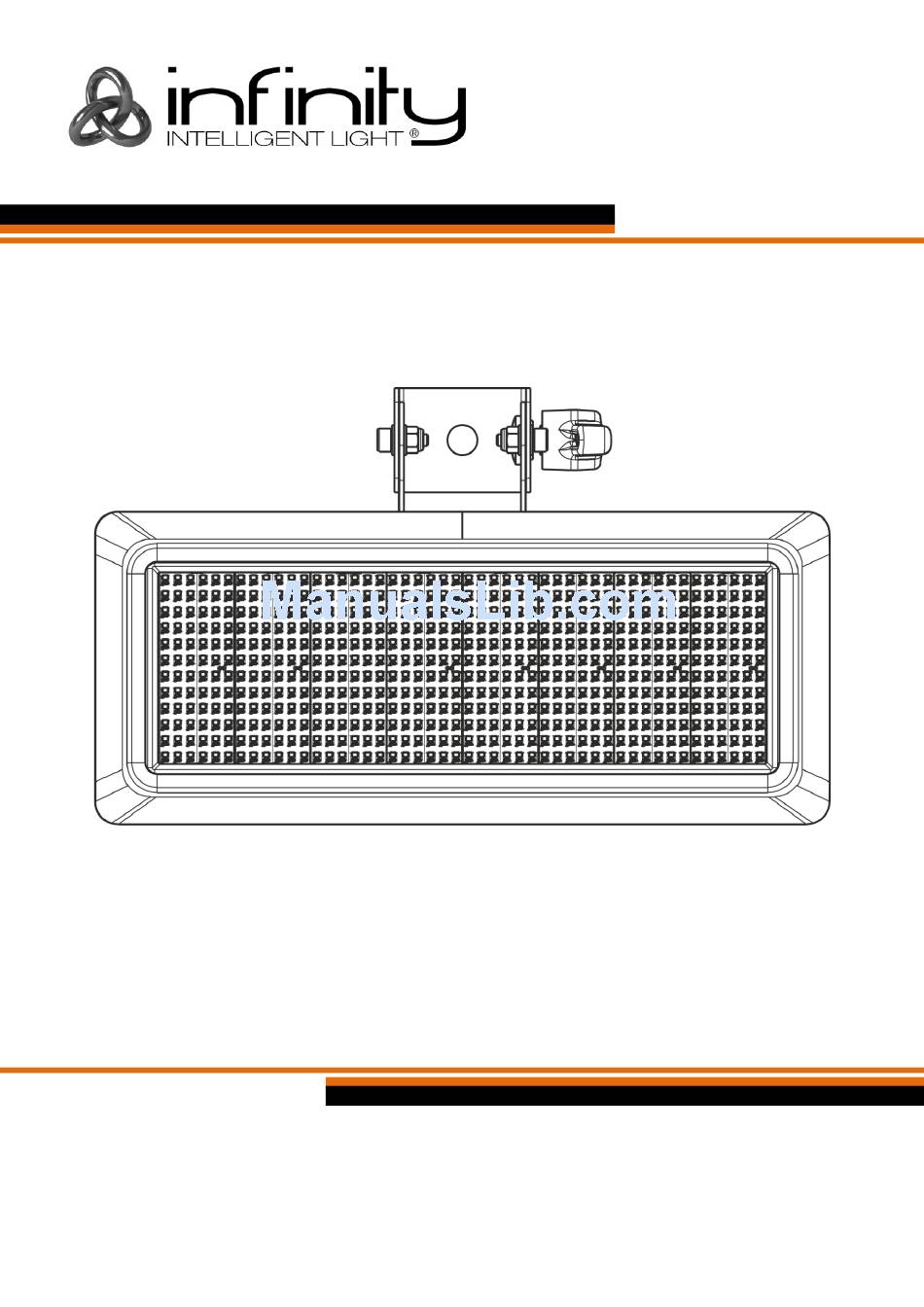

- Page 1 MANUAL ENGLISH Infinity XPLO-15 LED Strobe Ordercode: 40280 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
XPLO-15 LED Strobe RDM Product Parameter IDs .....................34 XPLO-15 LED Strobe RDM UID ..........................34 XPLO-15 LED Strobe RDM Parameter IDs ......................35 XPLO-15 LED Strobe RDM Manufacturer Status IDs ...................36 XPLO-15 LED Strobe RDM Manufacturer Specific PIDs for Root Device ............37 Productcode: 40280... - Page 3 Infinity XPLO-15 LED Strobe Maintenance ..................................37 Troubleshooting ................................38 No Light ..................................38 No Response to DMX..............................38 Product Specifications ..............................40 Dimensions ..................................41 Notes ....................................42 Productcode: 40280...
-
Page 4: Warning
Infinity XPLO-15 LED Strobe Warning Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Safety Instructions
Infinity XPLO-15 LED Strobe Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: be qualified. • follow the instructions of this manual. • Before the initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. -
Page 6: Operating Determinations
If your Infinity device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Infinity dealer for service. For adult use only. Infinity must be installed out of the reach of children. Never leave the unit running • unattended. -
Page 7: Connection With The Mains
Infinity XPLO-15 LED Strobe The Infinity can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 8: Return Procedure
Infinity XPLO-15 LED Strobe Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device

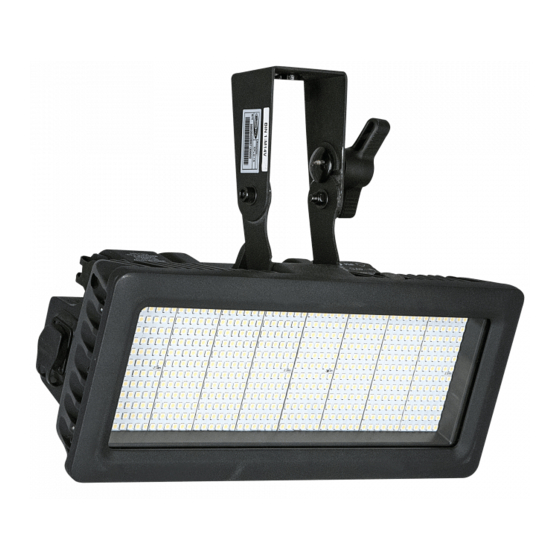

Infinity XPLO-15 LED Strobe Description of the device Features The Infinity XPLO-15 LED Strobe is a professional strobe effect for the most demanding users. Input voltage: 100-240V, 60/50Hz • Power consumption: 132W • DMX channels: 1, 3, 4, 6 (16-bit Control), 28 (Zone Mapping) channels •... -
Page 10: Backside
08) 3-pin DMX/RDM signal connector IN Installation Remove all packing materials from the Infinity XPLO-15 LED Strobe. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 11: Control Modes
02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) When the Infinity is not connected with a DMX cable, it functions as a stand-alone device. Please see pages 17-29 for more information about the Stand-alone Mode. -
Page 12: Multiple Infinitys (Dmx Control)
02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Infinity and other devices. 04) Link the units as shown in fig. 04. Connect the first unit's DMX "out" socket with the second unit's "in"... -
Page 13: Fixture Linking
Infinity XPLO-15 LED Strobe Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 14: Control Panel
When using multiple Infinity’s, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity should be 1(001); the DMX address of the second Infinity should be 1+28=29 (029); the DMX address of the third Infinity should be 29+28=57 (057), etc. -
Page 15: Menu Overview
Infinity XPLO-15 LED Strobe Menu Overview Productcode: 40280... - Page 16 Infinity XPLO-15 LED Strobe Productcode: 40280...
-
Page 17: Main Menu Options
Infinity XPLO-15 LED Strobe Main Menu Options Presets Chases Settings Menu Fixture Lock Password System Status Home Presets Down Chases DMX Address Setting Left Main Screen Right The device’s output is divided into zones. In the example below, zones 2, 3, 5, 7 and 8 are switched ON. -
Page 18: Presets
Infinity XPLO-15 LED Strobe 1. Presets 1.1. Editing a preset 01) While in the main menu, press the buttons to choose and press button to open the menu. You can also press the button. The display will show: 02) Press the... - Page 19 Infinity XPLO-15 LED Strobe 04) Press the button to proceed to zone edition. The display will show: 05) Press the buttons to switch between the zones. 06) Press the to switch the zones ON or OFF. 07) Once you have applied all the necessary changes, press the to confirm.
-
Page 20: Chases
Infinity XPLO-15 LED Strobe 2. Chases 2.1. Editing a chase 01) While in the main menu, press the buttons to choose and press button to open the menu. You can also press the button. The display will show: 02) Press the buttons to choose one of the 10 built-in chases or one of the 8 user chases. -
Page 21: Editing An Effect
Infinity XPLO-15 LED Strobe 08) Press the buttons to choose one of the existing presets which, later on, can be edited. There are 31 presets to choose from. 09) Press the buttons to choose Master Intensity. 10) Press the buttons to adjust the dimmer intensity. -
Page 22: Adding A New Step
Infinity XPLO-15 LED Strobe 09) Press the buttons to choose one of the 8 zones which you want to activate/deactivate. 10) Press the buttons to activate/deactivate the desired zone. 11) Press the button to save changes. 12) Press the buttons to choose Yes or No, when asked if you are sure that you want to save changes, and press the button to confirm your choice. -
Page 23: Settings
Infinity XPLO-15 LED Strobe 3. Settings 01) While in the main menu, press the buttons to choose and press button to open the menu. The display will show: 02) Press the buttons to toggle between the 5 options: • Security General •... -
Page 24: General
Infinity XPLO-15 LED Strobe 04) Press the buttons to choose the digit which you want to edit. The chosen digit will light up in blue. 05) Press the buttons to adjust the value. The adjustment range is between 0-9. 06) Once the security key has been inserted, press the button to store it. - Page 25 Infinity XPLO-15 LED Strobe Dimming Curves Fig. 06 Productcode: 40280...
-
Page 26: Factory Default
Infinity XPLO-15 LED Strobe 3.3. Factory Default 01) Press the to choose Factory Default and press the button to enter the menu. The display will show: 02) Press the buttons to toggle between the following available options: • Protected Load Factory •... -
Page 27: Dmx Mode
Infinity XPLO-15 LED Strobe 3.4. DMX Mode 01) Press the buttons to choose DMX and press the button to enter the menu. The display will show: 02) Press the buttons to toggle between the following 4 options: DMX Enable (Choose between Enable and Disable, to activate/deactivate DMX. ) •... -
Page 28: Display
Infinity XPLO-15 LED Strobe 02) Press the to enter edition mode. The display will show: 03) Press the buttons to adjust the chosen digit (which lights up in blue). 04) Press the buttons to choose another digit to edit and repeat the previous step. -
Page 29: Fixture Lock
Infinity XPLO-15 LED Strobe 4. Fixture Lock 01) While in the main menu, press the buttons to choose and press button to open the menu. The display will show: 02) Press the buttons to choose either Yes or No. 03) Press the button to confirm your choice. -
Page 30: Status
Infinity XPLO-15 LED Strobe 6. Status In this menu you can see the current status of the device. 01) While in the main menu, press the buttons to choose and press button to open the menu. The display will show: 02) The display shows the current dimmer intensity, as well as the current zone preview. -
Page 31: Dmx Channels
Infinity XPLO-15 LED Strobe DMX Channels The device’s output is divided into zones. In the example below, zones 2, 3, 5, 7 and 8 are switched ON. 1 channel (Single Channel) Channel 1 – Strobe 0-255 Strobe flash frequency, from slow to fast 3 channels (Three Channel) Channel 1 –... -
Page 32: Channels (16-Bit Control)
Infinity XPLO-15 LED Strobe 187-214 Random patterns 215-235 Chase 1 - from left to right, from slow to fast 236-255 Chase 2 - from right to left, from slow to fast 6 channels (16-bit Control) Channel 1 – Dimmer intensity... -
Page 33: Channels (Zone Mapping)
Infinity XPLO-15 LED Strobe 28 channels (Zone Mapping) Channel 1 – Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – 16-bit dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 3 – Effects Dimmer must be open... - Page 34 Infinity XPLO-15 LED Strobe Channel 11 – Zone 3 - Dimmer intensity Dimmer must be open 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 12 – Zone 3 - Strobe Duration Dimmer must be open 0-255 Strobe flash duration, from short to long Channel 13 –...
-
Page 35: Rdm Parameter Ids
Dimmer must be open 0-255 Strobe flash frequency, from slow to fast RDM Parameter IDs The following tables outline and describe all the RDM parameters IDs associated with the XPLO-15 LED Strobe. XPLO-15 LED Strobe RDM Product Parameter IDs Model ID... -
Page 36: Xplo-15 Led Strobe Rdm Parameter Ids
Infinity XPLO-15 LED Strobe XPLO-15 LED Strobe RDM Parameter IDs RDM Parameter IDs Value Comment Implemented Allowed Allowed Category - Network Management DISC_UNIQUE_BRANCH 0x0001 ■ DISC_MUTE 0x0002 ■ DISC_UN_MUTE 0x0003 ■ ■ PROXIED_DEVICES 0x0010 ■ PROXIED_DEVICES_COUNT 0x0011 ■ ■ COMMS_STATUS... -
Page 37: Xplo-15 Led Strobe Rdm Manufacturer Status Ids
PRESET_PLAYBACK 0x1031 XPLO-15 LED Strobe RDM Manufacturer Status IDs Manufacturer specific messages are in the range of 0x8000 – 0xFFDF. Each manufacturer specific Status ID shall have a unique meaning which shall be consistent across all products having a given manufacturer ID. -
Page 38: Xplo-15 Led Strobe Rdm Manufacturer Specific Pids For Root Device
04) The electric power supply cables must not show any damages or material fatigue. The Infinity XPLO-15 LED Strobe requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 39: Troubleshooting
Suspect three potential problem areas as: the power supply and the LEDs. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Infinity to your Infinity dealer. 03) If all of the above appears to be O.K., plug the unit in again. - Page 40 Infinity XPLO-15 LED Strobe Problem Probable cause(s) Solution • Check if power is switched on and One or more No power to the fixture cables are plugged in fixtures do not function at all • Return the device to your local Internal fuse blown dealer.
-
Page 41: Product Specifications
Infinity XPLO-15 LED Strobe Product Specifications Model: Infinity XPLO-15 LED Strobe Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 132W (full output) DMX linking: 30pcs Dimensions: 319 x 130 x 255 mm (LxWxH) Weight: 5,4 kg Operating and Programming: Signal pin OUT:... -
Page 42: Dimensions
Infinity XPLO-15 LED Strobe Dimensions Productcode: 40280... -
Page 43: Notes
Infinity XPLO-15 LED Strobe Notes Productcode: 40280... - Page 44 ©2015 Infinity...
