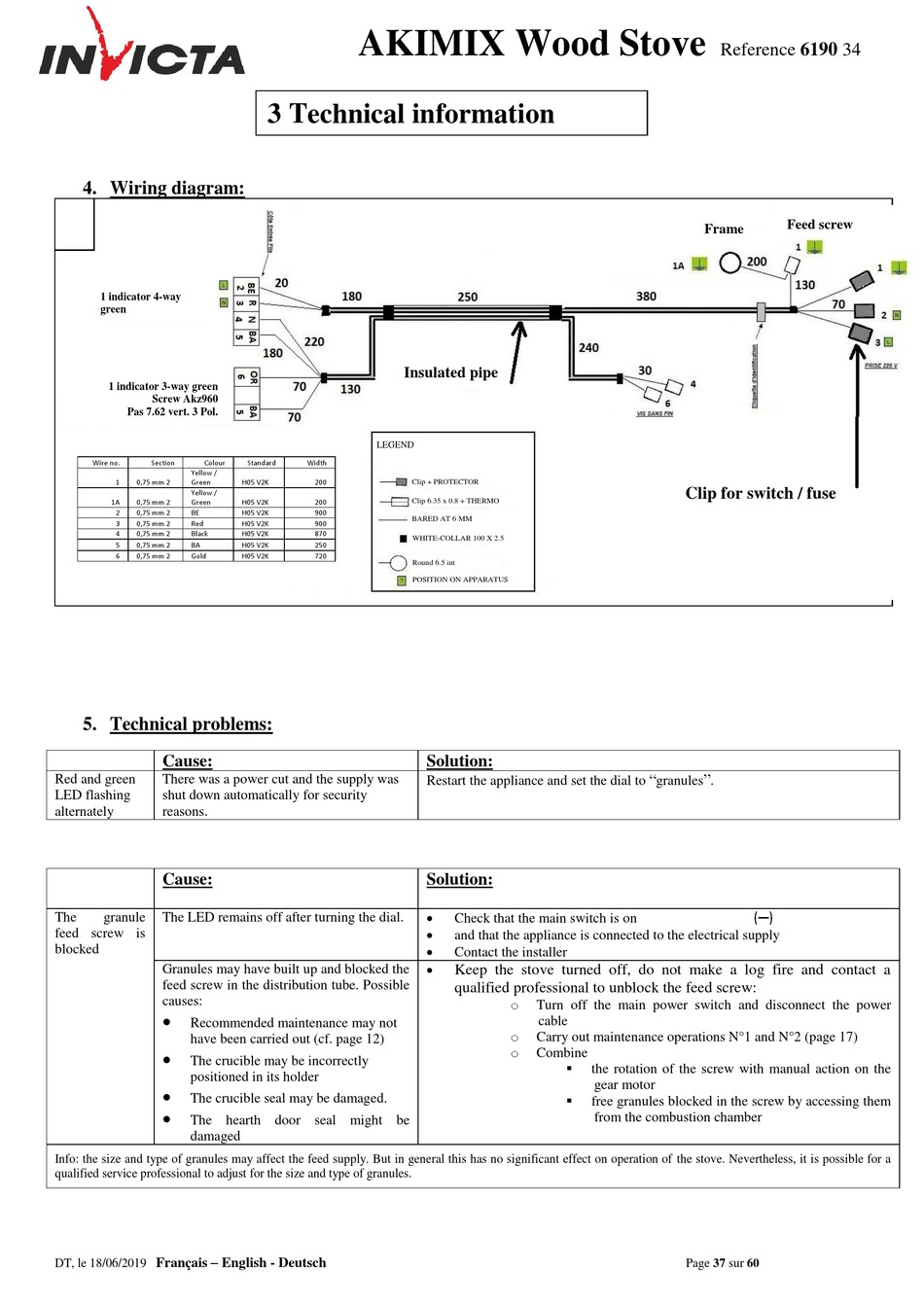

4. Wiring diagram:

1 indicator 4-way
green
MSTB 2.5 /4-ST-5.08
1 indicator 3-way green
Screw Akz960
Pas 7.62 vert. 3 Pol.
Wire no. Section Colour
Yellow /
1 0,75 mm 2 Green
Yellow /
1A 0,75 mm 2 Green
2 0,75 mm 2 BE
3 0,75 mm 2 Red
4 0,75 mm 2 Black
5 0,75 mm 2 BA
6 0,75 mm 2 Gold

5. Technical problems:

Cause:
Red and green There was a power cut and the supply was
LED flashing shut down automatically for security
alternately reasons.
Cause:
The granule The LED remains off after turning the dial.
feed screw is
blocked
Granules may have built up and blocked the
feed screw in the distribution tube. Possible
causes:

Recommended maintenance may not
have been carried out (cf. page 12)

The crucible may be incorrectly
positioned in its holder

The crucible seal may be damaged.

The hearth door seal might be
damaged
Info: the size and type of granules may affect the feed supply. But in general this has no significant effect on operation of the stove. Nevertheless, it is possible for a
qualified service professional to adjust for the size and type of granules.
Français – English - Deutsch
DT, le 18/06/2019
AKIMIX Wood Stove

3 Technical information

Insulated pipe
LEGEND
Standard Width
H05 V2K 200 Clip + PROTECTOR
Clip 6.35 x 0.8 + THERMO
H05 V2K 200
H05 V2K 900
BARED AT 6 MM
H05 V2K 900
H05 V2K 870
WHITE-COLLAR 100 X 2.5
H05 V2K 250
H05 V2K 720
Round 6.5 int
POSITION ON APPARATUS
Solution:
Restart the appliance and set the dial to
Solution:

Check that the main switch is on

and that the appliance is connected to the electrical supply

Contact the installer

Keep the stove turned off, do not make a log fire and contact a
qualified professional to unblock the feed screw:
o
Turn off the main power switch and disconnect the power
cable
o
Carry out maintenance operations N°1 and N°2 (page 17)
o
Combine

the rotation of the screw with manual action on the
gear motor

free granules blocked in the screw by accessing them
from the combustion chamber
Reference 6190 34
Feed screw
Frame
Clip for switch / fuse
" "
granules .
Page 37 sur 60
